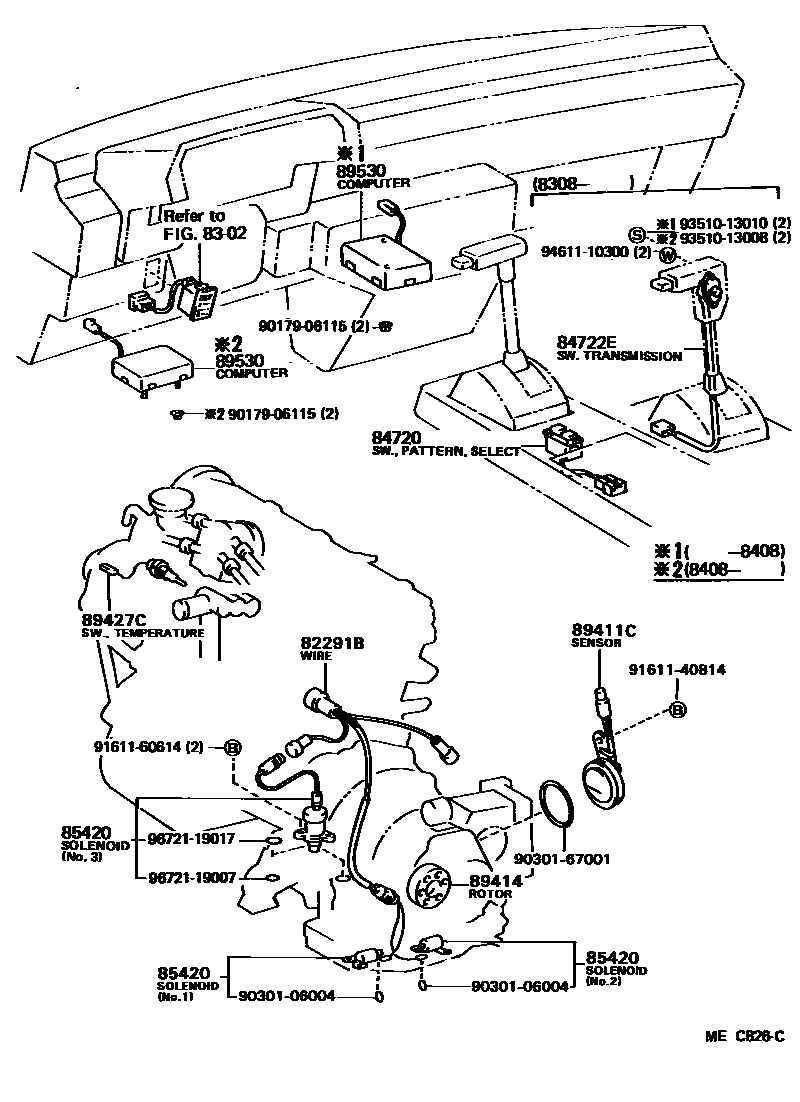

ELECTRONIC CONTROLLED TRANSMISSION

82291BWIRE, TO SOLENOID (FOR TRANSMISSION)

main82125-32010iSV11..4FC198507-198607

main82291-32010iSV11..4FC198301-198507

8302

84720SWITCH ASSY, PATTERN SELECT

main84720-32010iSV11..4FC198301-198408

main84720-32020iSV11..4FC198408-198607

84722ESWITCH, TRANSMISSION CONTROL

main84722-20040-03iSV11..4FC198408-198607

SHADOW GRAY,GRAY,TRIM1#

sub84722-20040

main84722-20040-04iSV11..4FC198408-198607

BLUE,BLUE,TRIM8#

sub84722-20040

main84722-20040-05iSV11..4FC198408-198607

BEIGE,BEIGE,TRIM4#

sub84722-20040

main84722-32010iSV11..4FC198308-198408

85420SOLENOID ASSY, TRANSMISSION

main85420-32020iSV11..4FC198301-198607

AISIN,NO.1

sub85420-32021

main85420-32030iSV11..4FC198301-198607

DENSO,NO.1

sub85420-32020

main85420-32040iSV11..4FC198301-198607

AISIN,NO.2

sub85420-32041

main85420-32050iSV11..4FC198301-198607

DENSO,NO.2

sub85420-32040

main85420-32070iSV11..4FC198301-198605

NO.3

sub85420-32071

main85420-32071iSV11..4FC198605-198607

NO.3

sub85420-32061

89411CSENSOR, SPEED

main89411-20020iSV11..4FC198507-198607

sub89411-32040

main89411-32010iSV11..4FC198301-198507

89414ROTOR, SENSOR

main89414-32010iSV11..4FC198301-198607

89427CSWITCH, TEMPERATURE (FOR ECT)

main89427-32010iSV11..4FC198301-198607

89530COMPUTER ASSY, TRANSMISSION CONTROL

main89530-32030iSV11..4FC198301-198308

main89530-32031iSV11..4FC198308-198408

main89530-32140iSV11..4FC198408-198607

main89530-32160iSV11..4FC..USA198508-198607

9017906115

main90179-06115

9030106004

main90301-06004

9030167001

main90301-67001

9161140814

main91611-40814

9161160614

main91611-60614

9351013008

main93510-13008

9351013010

main93510-13010

9461110300

main94611-10300

9672119007

main96721-19007

9672119017

main96721-19017

19 parts on this diagram · 1 diagram in section
