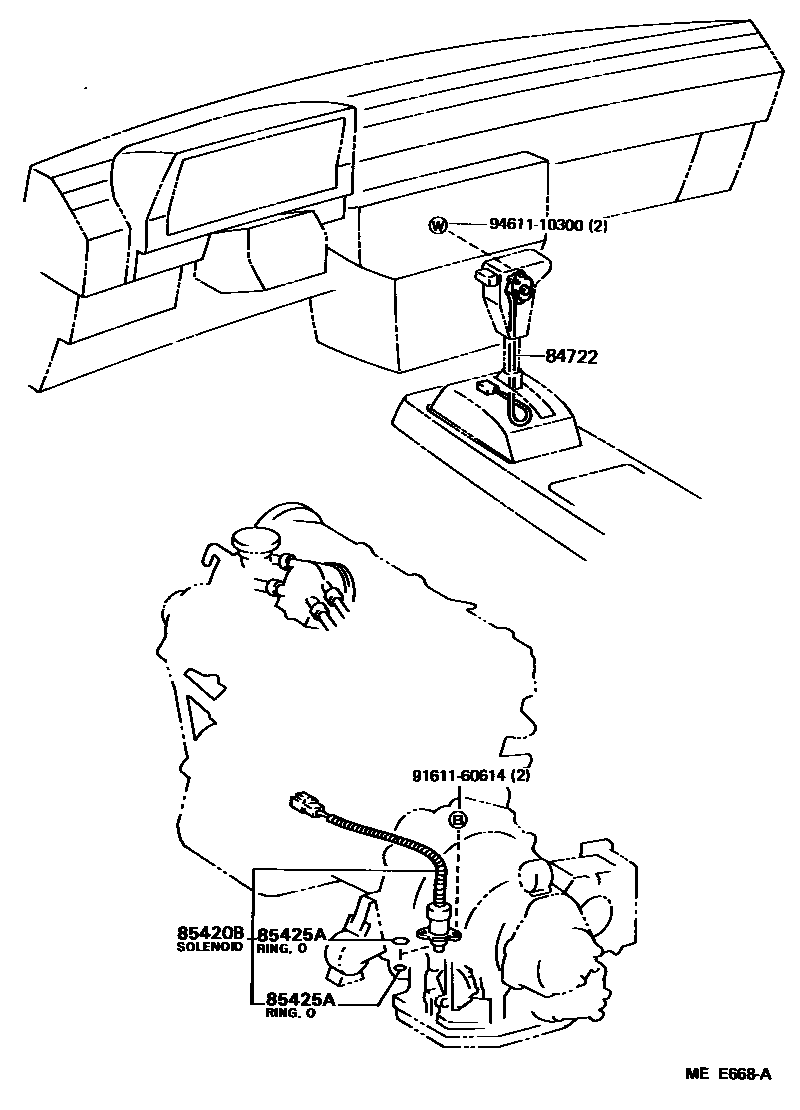

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

84722SWITCH, TRANSMISSION CONTROL

main84722-20040-03iCV1#198410-198607

SHADOW GRAY,GRAY,TRIM1#

sub84722-20040

main84722-20040-04iCV1#198410-198607

BLUE,BLUE,TRIM8#

sub84722-20040

main84722-20040-05iCV1#198410-198607

BEIGE,BEIGE,TRIM4#

sub84722-20040

85420BSOLENOID ASSY, TRANSMISSION

main85420-32080iCV1#198410-198605

sub85420-32081

main85420-32081iCV11198605-198607

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-06005iCV11198605-198607

ID=7

main96721-19007iCV1#198410-198605

ID=7

main96721-19017iCV1#198410-198607

ID=17

9161160614

main91611-60614

9461110300

main94611-10300

5 parts on this diagram · 1 diagram in section
