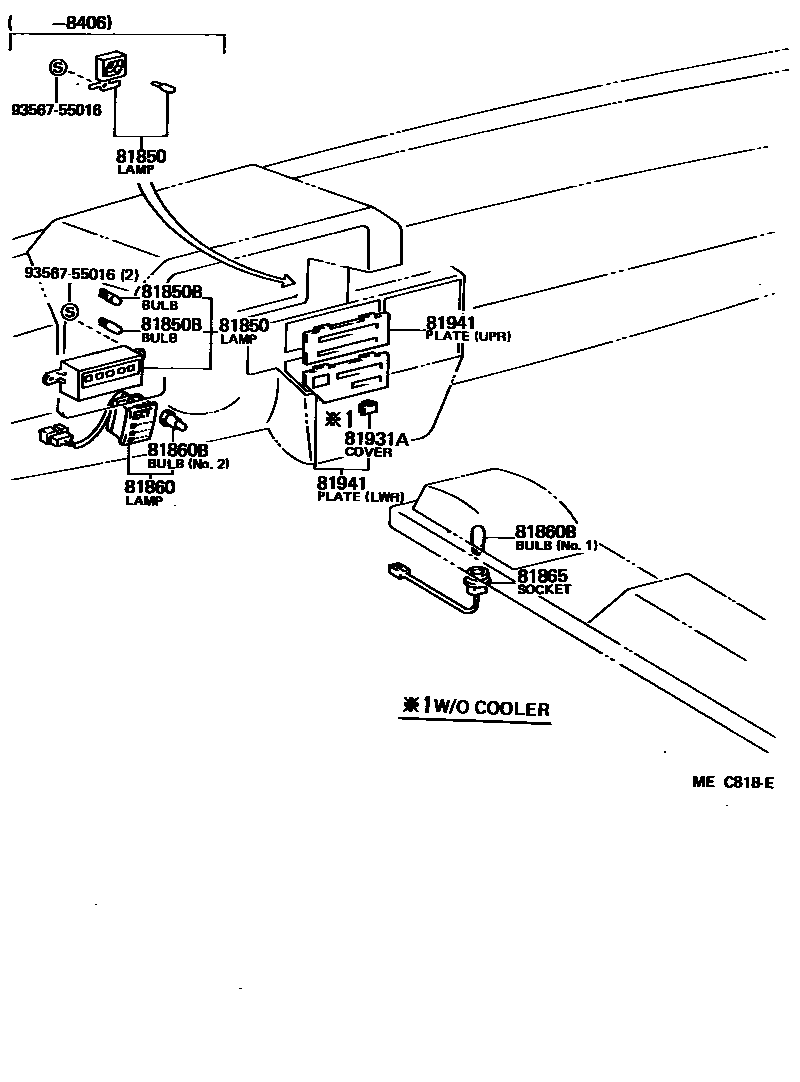

INDICATOR

81850LAMP ASSY, INDICATOR

main81850-32010iSV11..LE198301-198408

main81850-32050iSV11..4FC198408-198508

sub81850-32051

main81850-32051iSV11..4FC198508-198607

main81850-32060iCV10198410-198508

sub81850-32061

main81850-32061iCV11198508-198607

81850BBULB, INDICATOR LAMP

main84999-20020iCV10,SV11..4FC198408-198508

BASE=BLACK

main84999-20040iCV1#,SV11..4FC198408-198607

BASE=BLUE

main84999-20050iCV1#,SV11..4FC198408-198607

BASE=BROWN

81860LAMP ASSY, TRANSMISSION INDICATOR

main81860-32030iSV11..4FC198301-198308

W/*ECT

main81860-32031iSV11..4FC198308-198408

W/*ECT

81860BBULB, TRANSMISSION INDICATOR LAMP

main84999-10110iSV11..4FC198301-198408

12V 1.12W,NO.2

main99132-12034iSV11..4FC198301-198607

12V 3.4W,NO.1,12V 3.4W

81865SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP

main35906-32010iSV11..4FC198301-198408

sub35906-32030

main35906-32030iSV11..4FC198408-198607

81931ACOVER, COOLER SWITCH HOLE

main55538-32010iCV1#,SV11198301-198607

81941PLATE, HEATER CONTROL NAME

main55519-32050iCV10,SV11198301-198406

UPR

sub55519-32051

main55519-32051iCV1#,SV11198406-198607

UPR

main55519-32060iCV10,SV11198301-198406

LWR

sub55519-32061

main55519-32061iCV1#,SV11198406-198607

LWR

main55519-32070iCV10,SV11198301-198406

LWR,W/COOLER

sub55519-32061

main55519-32071iCV1#,SV11198406-198607

LWR,W/COOLER

sub55519-32061

9356755016

main93567-55016

8 parts on this diagram · 1 diagram in section
