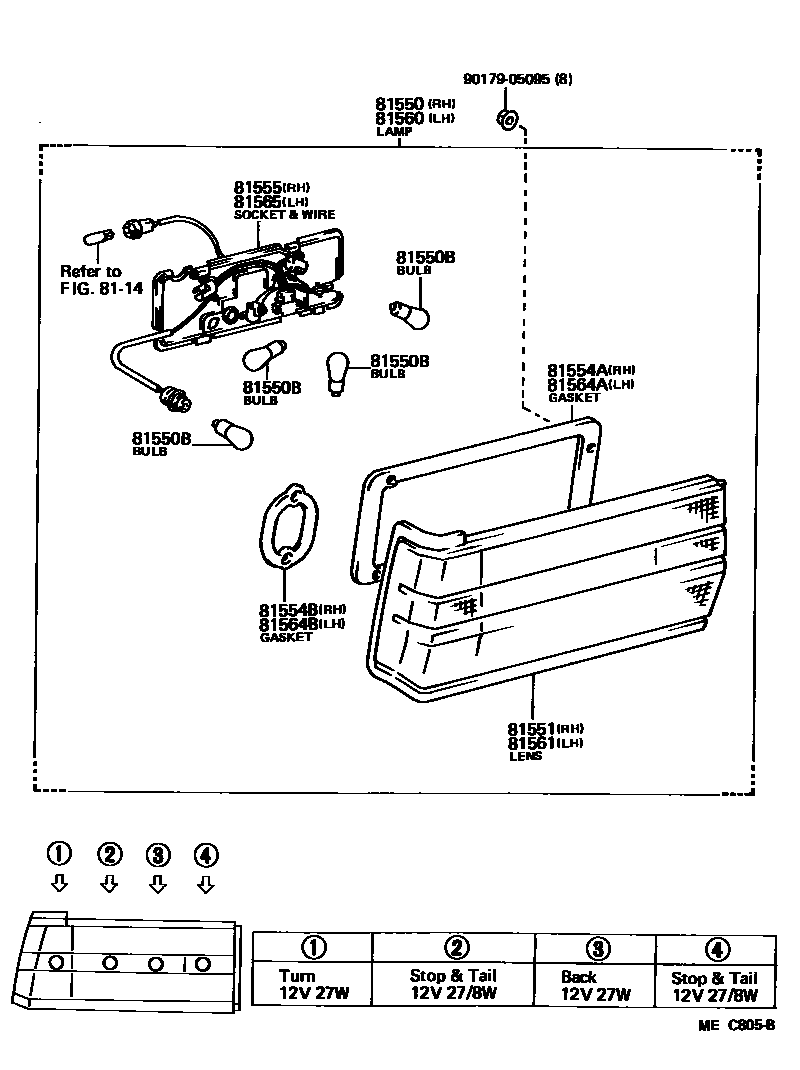

REAR COMBINATION LAMP

0001 1 0002 1

8114

81550LAMP ASSY, REAR COMBINATION, RH

main81550-32120iCV10,SV11..4D198301-198408

main81550-39755iSV11..5D198301-198408

main81550-80226iSV11..5D198408-198607

sub81550-32081

main81550-80229iCV1#,SV11..4D198408-198607

sub81550-32121

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11270iCV1#,SV11198301-198607

12V 27W,12V 27W

main99132-21270iCV1#,SV11198301-198607

12V 27/8W,12V 27/8W

81551LENS, REAR COMBINATION LAMP, RH

main81551-32080iSV11..5D198301-198408

main81551-32081iSV11..5D198408-198607

main81551-32120iCV10,SV11..4D198301-198408

main81551-32121iCV1#,SV11..4D198408-198607

81554AGASKET, REAR COMBINATION LAMP BODY, NO.1 RH

main81552-32010iCV1#,SV11..4D198408-198607

main81554-32090iSV11..5D198301-198607

main81554-32100iCV10,SV11..4D198301-198408

81554BGASKET, REAR COMBINATION LAMP BODY, NO.2 RH

main81552-32090iSV11..5D198301-198607

main81552-32100iCV10,SV11..4D198301-198408

main81554-32010iCV1#,SV11..4D198408-198607

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-32080iSV11..5D198301-198408

main81555-32081iSV11..5D198408-198607

main81555-32120iCV10,SV11..4D198301-198408

main81555-32121iCV1#,SV11..4D198408-198607

81560LAMP ASSY, REAR COMBINATION, LH

main81560-32120iCV10,SV11..4D198301-198408

main81560-39715iSV11..5D198301-198408

main81560-80231iSV11..5D198408-198607

sub81560-32081

main81560-80234iCV1#,SV11..4D198408-198607

sub81560-32121

81561LENS, REAR COMBINATION LAMP, LH

main81561-32080iSV11..5D198301-198408

main81561-32081iSV11..5D198408-198607

main81561-32120iCV10,SV11..4D198301-198408

main81561-32121iCV1#,SV11..4D198408-198607

81564AGASKET, REAR COMBINATION LAMP BODY, NO.1 LH

main81552-32010iCV1#,SV11..4D198408-198607

main81554-32090iSV11..5D198301-198607

main81554-32100iCV10,SV11..4D198301-198408

81564BGASKET, REAR COMBINATION LAMP BODY, NO.2 LH

main81552-32090iSV11..5D198301-198607

main81552-32100iCV10,SV11..4D198301-198408

main81554-32010iCV1#,SV11..4D198408-198607

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-32080iSV11..5D198301-198408

main81565-32081iSV11..5D198408-198607

main81565-32120iCV10,SV11..4D198301-198408

main81565-32121iCV1#,SV11..4D198408-198607

9017905095

main90179-05095

13 parts on this diagram · 2 diagrams in section
