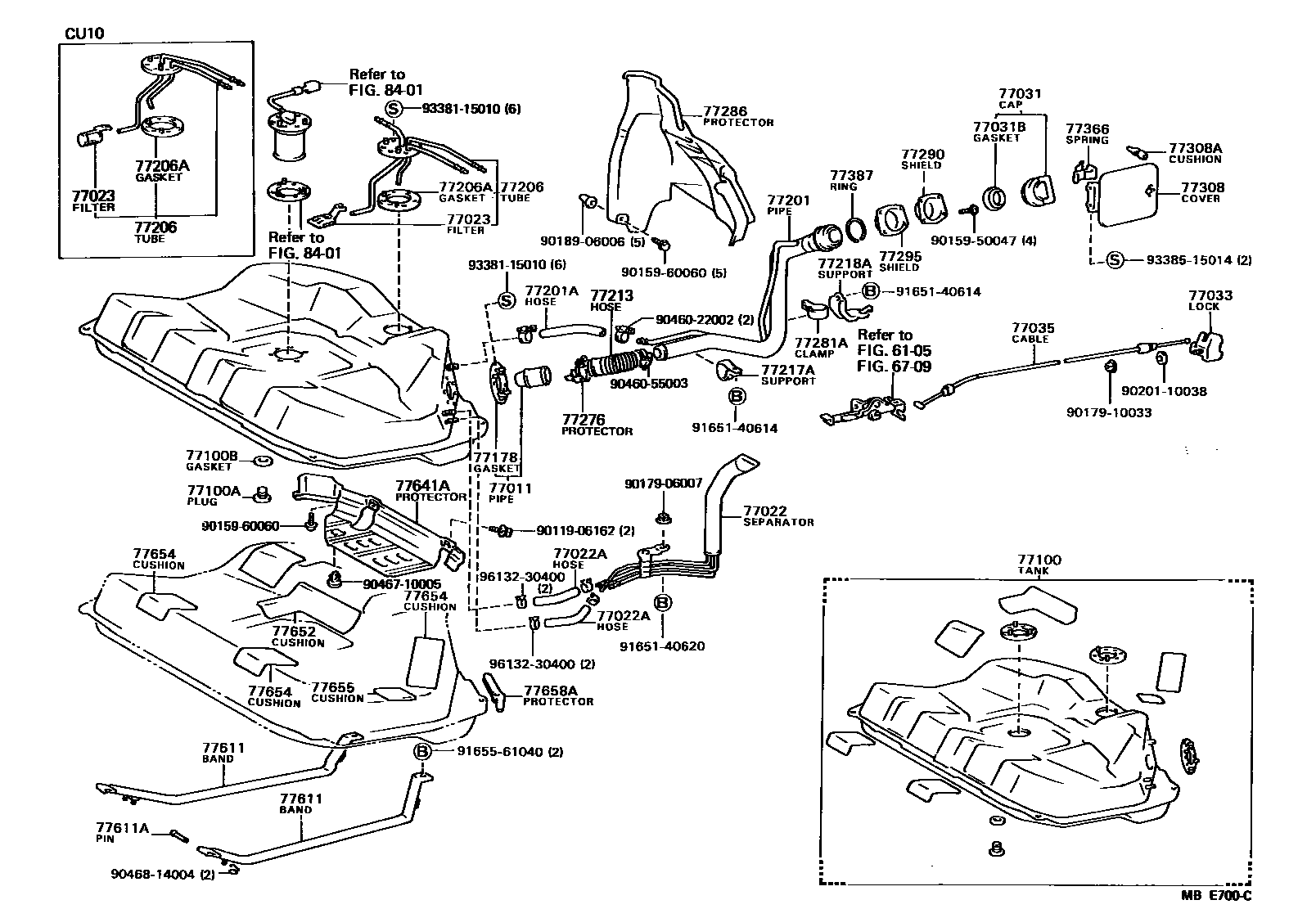

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1

6105

6709

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-16030iCV1#,SV11198301-198607

sub77011-16040

77022SEPARATOR SUB-ASSY, FUEL EVAPORATIVE

main77022-32011iCV1#,SV11198301-198607

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95332-04030iCV1#,SV11198301-198604

L=300(*H,L=220)

sub95333-04030

main95333-04022iCV11,SV11198604-198607

L=300(*H,L=220)

sub95333-04030

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-22040iCV10198308-198309

main77023-30010iSV11198301-198408

main77023-32010iCV1#198309-198607

77031CAP ASSY, FUEL TANK

main77310-16010iSV11198301-198607

sub77310-16011

main77310-32010iCV1#198308-198607

sub77310-32011

77031BGASKET (FOR FUEL TANK CAP)

main77316-16010iSV11198301-198607

main77316-32010iCV1#198308-198607

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-12040iCV1#,SV11198503-198607

sub77037-38010

main77037-24010iSV11198301-198305

main77037-32010iCV10,SV11198305-198503

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-32030iCV1#,SV11198301-198607

sub77035-14090

77100TANK ASSY, FUEL

main77001-39115iCV10,SV11198301-198309

sub77001-39205

sub77017-20030

sub77017-32022

main77001-39205iCV1#,SV11198309-198607

77100APLUG(FOR FUEL TANK)

main90341-20003iCV1#,SV11198301-198607

sub90341-20004

77100BGASKET(FOR FUEL TANK)

main90430-20006iCV1#,SV11198301-198607

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-13020iCV1#,SV11198301-198607

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-32020iSV11198301-198607

main77201-32030iCV1#198308-198607

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90445-22011iCV1#,SV11198408-198607

L=220

sub90445-22024

main90445-22021iCV10,SV11198301-198408

L=230

sub90445-22011

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-20030iCV1#198309-198607

sub77017-20070

main77017-32021iSV11198301-198309

main77017-32022iSV11198309-198408

main77017-32030iCV10198308-198309

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-32010iCV10,SV11198301-198607

77213HOSE, FUEL TANK SUB INLET

main77213-32010iCV1#,SV11198301-198607

L=248

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-32010iCV1#,SV11198301-198607

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-32010iCV1#,SV11198301-198607

77276PROTECTOR, FUEL HOSE

main77606-32010iCV1#,SV11198301-198607

77281ACLAMP, FUEL FILLER PIPE

main77281-32010iCV1#,SV11198301-198607

77286PROTECTOR, FUEL TANK INLET PIPE

main77277-32010iCV1#,SV11198301-198607

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-32010iCV1#,SV11198301-198607

77295SHIELD, FUEL FILLER PIPE

main77293-32010iCV1#,SV11198301-198607

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-32010iCV10,SV11198301-198408

main77350-32020iCV1#,SV11198408-198607

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-05009iCV10,SV11198301-198408

main90541-05013iCV1#,SV11198408-198607

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iCV1#,SV11198301-198607

77387RING, FUEL INLET BOX

main77391-32010iCV1#,SV11198301-198607

77611BAND, FUEL TANK

main77601-32030iCV1#,SV11198301-198607

RH

main77602-32020iCV1#,SV11198301-198607

LH

77611APIN (FOR FUEL TANK BAND)

main90240-08020iCV1#,SV11198301-198607

77641APROTECTOR, FUEL TANK, NO.1

main77641-32021iCV1#,SV11198301-198607

77652CUSHION, FUEL TANK, NO.1

main77651-32020iCV1#,SV11198301-198607

77654CUSHION, FUEL TANK, NO.2

main77652-32010iCV1#,SV11198301-198607

77655CUSHION, FUEL TANK, NO.3

main77652-14060iCV1#,SV11198301-198607

77658APROTECTOR, FUEL TANK EDGE, NO.1

main77658-32010iCV1#,SV11198301-198607

8401

9011906162

main90119-06162

9015950047

main90159-50047

9015960060

main90159-60060

9017906007

main90179-06007

9017910033

main90179-10033

9018906006

main90189-06006

9020110038

main90201-10038

9046022002

main90460-22002

9046055003

main90460-55003

9046710005

main90467-10005

9046814004

main90468-14004

9165140614

main91651-40614

9165140620

main91651-40620

9165561040

main91655-61040

9338115010

main93381-15010

9338515014

main93385-15014

9613230400

main96132-30400

55 parts on this diagram · 7 diagrams in section
