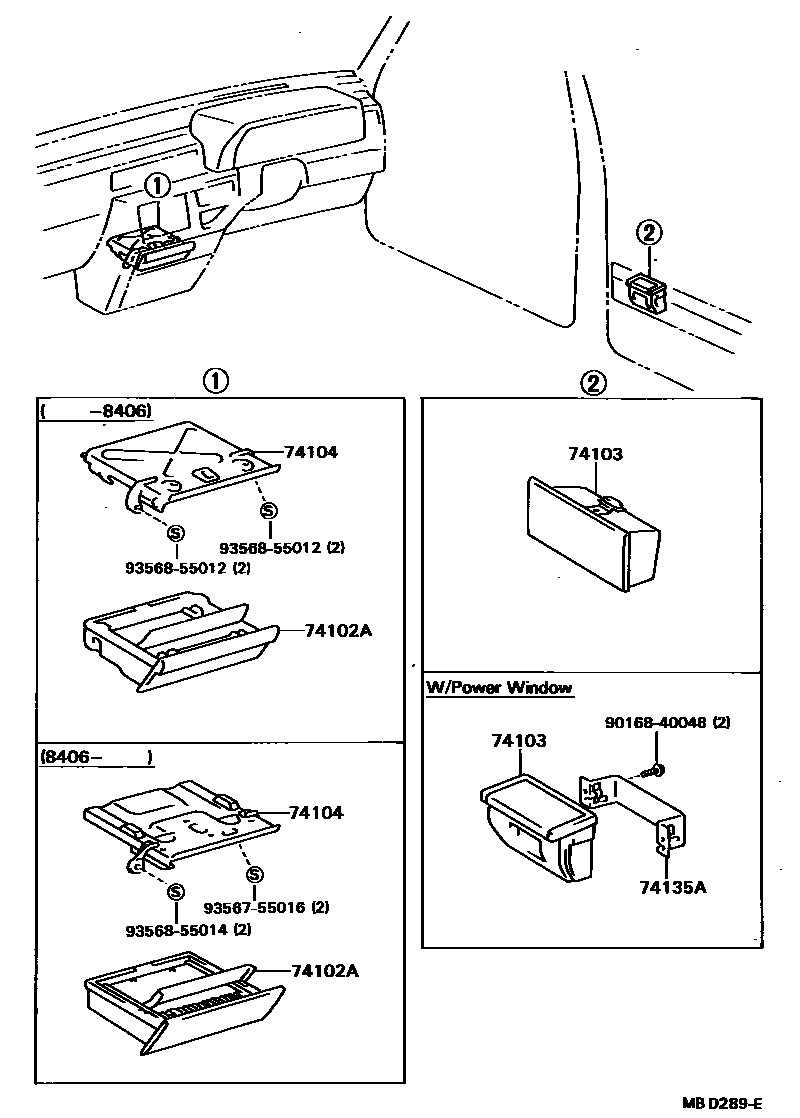

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-32010-03iCV10,SV11198301-198408

GRAY,GRAY,TRIM1#

sub74102-32010

main74102-32010-04iCV10,SV11198301-198408

BLUE,BLUE,TRIM8#

sub74102-32010

main74102-32010-06iCV10,SV11198301-198408

BROWN,BROWN,TRIM4#

sub74102-32010

main74102-32020-03iCV1#,SV11198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub74102-32020

main74102-32020-04iCV1#,SV11198408-198607

BLUE,BLUE,TRIM8#

sub74102-32020

main74102-32020-05iCV1#,SV11198408-198607

BEIGE,BEIGE,TRIM4#

sub74102-32020

74103RECEPTACLE SUB-ASSY, ASH, NO.1

main74130-32010iSV11..LE198301-198305

W/*PW

main74130-32011-03iSV11..LE198305-198408

W/*PW,GRAY,GRAY,TRIM1#

main74130-32011-04iSV11..LE198305-198408

W/*PW,BLUE,BLUE,TRIM8#

main74130-32011-06iSV11..LE198305-198408

W/*PW,BROWN,BROWN,TRIM4#

main74130-32020-03iCV10,SV11198301-198408

W/O *PW,GRAY,GRAY,TRIM1#

sub74130-32020

main74130-32020-04iCV1#,SV11198301-198607

W/O *PW,BLUE,BLUE,TRIM8#

sub74130-32020

main74130-32020-05iCV1#,SV11198408-198607

W/O *PW,BEIGE,BEIGE,TRIM4#

sub74130-32020

main74130-32020-06iCV10,SV11198301-198408

W/O *PW,BROWN,BROWN,TRIM4#

sub74130-32020

main74130-32020-13iCV1#,SV11198408-198607

W/O *PW,SHADOW GRAY,SHADOW GRAY,TRIM1#

sub74130-32020

main74130-32030-03iSV11..LE198408-198607

W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#

sub74130-32030

sub74130-60020

main74130-32030-04iSV11..LE198408-198607

W/*PW,BLUE,BLUE,TRIM8#

sub74130-32030

sub74130-60020

main74130-32030-05iSV11..LE198408-198607

W/*PW,BEIGE,BEIGE,TRIM4#

sub74130-32030

sub74130-60020

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-32010iCV10,SV11198301-198408

main74104-32020iCV1#,SV11198408-198607

74135ARETAINER, REAR ASH RECEPTACLE, NO.1

main74135-32010iSV11..LE198301-198607

W/*PW

9016840048

main90168-40048

9356755016

main93567-55016

9356855012

main93568-55012

9356855014

main93568-55014

8 parts on this diagram · 1 diagram in section
