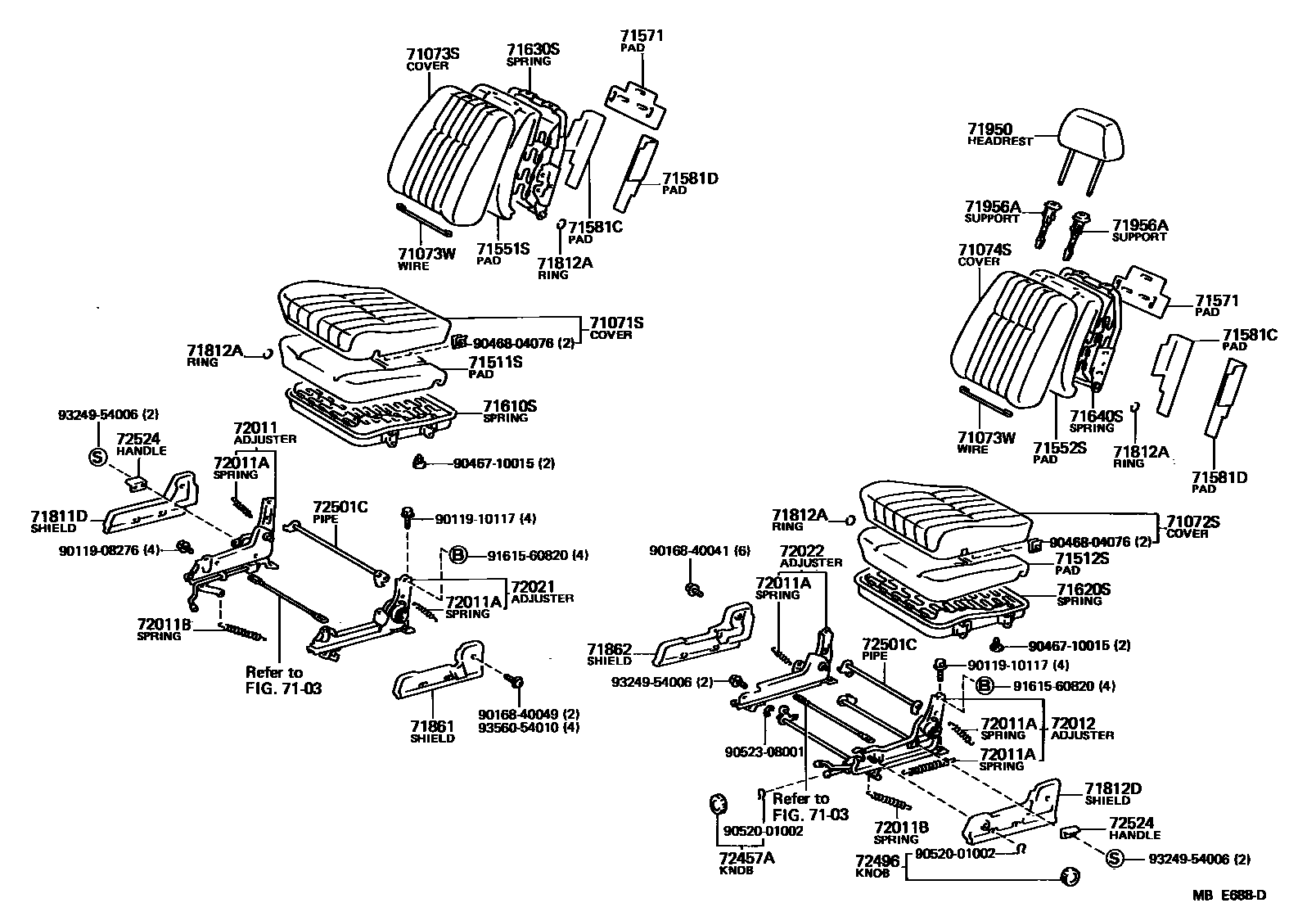

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1

7103

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71072-32050-03iSV11..DLX198301-198308

FB,GRAY,GRAY,TRIM1#

main71072-32050-04iSV11..DLX198301-198308

FB,BLUE,BLUE,TRIM8#

main71072-32050-05iSV11..DLX198301-198308

FB,BEIGE,BEIGE,TRIM4#

main71072-32051-03iCV10,SV11..DLX198308-198408

FB,GRAY,GRAY,TRIM1#

main71072-32051-04iCV10,SV11..DLX198308-198408

FB,BLUE,BLUE,TRIM8#

main71072-32051-05iCV10,SV11..DLX198308-198408

FB,BEIGE,BEIGE,TRIM4#

main71072-32060-03iSV11..LE198301-198408

FB,GRAY,GRAY,TRIM1#

sub71071-32070

main71072-32060-04iSV11..LE198301-198308

FB,BLUE,BLUE,TRIM8#

sub71071-32070

main71072-32060-05iSV11..LE198301-198408

FB,BEIGE,BEIGE,TRIM4#

sub71071-32070

main71072-32060-14iSV11..LE198308-198408

FB,BLUE,BLUE,TRIM8#

sub71071-32070

main71072-32190-03iCV1#,SV11..DLX198408-198607

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71072-32190-04iCV1#,SV11..DLX198408-198607

FB,BLUE,BLUE,TRIM8#

main71072-32190-05iCV1#,SV11..DLX198408-198607

FB,BEIGE,BEIGE,TRIM4#

main71072-32200-03iSV11..LE198408-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71072-32200-04iSV11..LE198408-198508

FB,BLUE,BLUE,TRIM8#

main71072-32200-05iSV11..LE198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71072-32201-03iSV11..LE198508-198511

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

sub71071-32212

main71072-32201-04iSV11..LE198508-198511

FB,BLUE,BLUE,TRIM8#

sub71071-32212

main71072-32201-05iSV11..LE198508-198511

FB,BEIGE,BEIGE,TRIM4#

sub71071-32212

main71072-32202-03iSV11..LE198511-198607

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71072-32202-04iSV11..LE198511-198607

FB,BLUE,BLUE,TRIM8#

main71072-32202-05iSV11..LE198511-198607

FB,BEIGE,BEIGE,TRIM4#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-32060-03iSV11..DLX198301-198308

FB,GRAY,GRAY,TRIM1#

main71071-32060-04iSV11..DLX198301-198308

FB,BLUE,BLUE,TRIM8#

main71071-32060-05iSV11..DLX198301-198308

FB,BEIGE,BEIGE,TRIM4#

main71071-32061-03iCV10,SV11..DLX198308-198408

FB,GRAY,GRAY,TRIM1#

main71071-32061-04iCV10,SV11..DLX198308-198408

FB,BLUE,BLUE,TRIM8#

main71071-32061-05iCV10,SV11..DLX198308-198408

FB,BEIGE,BEIGE,TRIM4#

main71071-32070-03iSV11..LE198301-198408

FB,GRAY,GRAY,TRIM1#

main71071-32070-04iSV11..LE198301-198308

FB,BLUE,BLUE,TRIM8#

main71071-32070-05iSV11..LE198301-198408

FB,BEIGE,BEIGE,TRIM4#

main71071-32070-14iSV11..LE198308-198408

FB,BLUE,BLUE,TRIM8#

main71071-32200-03iCV1#,SV11..DLX198408-198607

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71071-32200-04iCV1#,SV11..DLX198408-198607

FB,BLUE,BLUE,TRIM8#

main71071-32200-05iCV1#,SV11..DLX198408-198607

FB,BEIGE,BEIGE,TRIM4#

main71071-32210-03iSV11..LE198408-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71071-32210-04iSV11..LE198408-198508

FB,BLUE,BLUE,TRIM8#

main71071-32210-05iSV11..LE198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71071-32211-03iSV11..LE198508-198511

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

sub71071-32212

main71071-32211-04iSV11..LE198508-198511

FB,BLUE,BLUE,TRIM8#

sub71071-32212

main71071-32211-05iSV11..LE198508-198511

FB,BEIGE,BEIGE,TRIM4#

sub71071-32212

main71071-32212-03iSV11..LE198511-198607

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71071-32212-04iSV11..LE198511-198607

FB,BLUE,BLUE,TRIM8#

main71071-32212-05iSV11..LE198511-198607

FB,BEIGE,BEIGE,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-32060-03iSV11..DLX198301-198308

FB,GRAY,GRAY,TRIM1#

main71073-32060-04iSV11..DLX198301-198308

FB,BLUE,BLUE,TRIM8#

main71073-32060-05iSV11..DLX198301-198308

FB,BEIGE,BEIGE,TRIM4#

main71073-32061-03iCV10,SV11..DLX198308-198408

FB,GRAY,GRAY,TRIM1#

main71073-32061-04iCV10,SV11..DLX198308-198408

FB,BLUE,BLUE,TRIM8#

main71073-32061-05iCV10,SV11..DLX198308-198408

FB,BEIGE,BEIGE,TRIM4#

main71073-32070-03iSV11..LE198301-198408

FB,GRAY,GRAY,TRIM1#

main71073-32070-04iSV11..LE198301-198308

FB,BLUE,BLUE,TRIM8#

main71073-32070-05iSV11..LE198301-198408

FB,BEIGE,BEIGE,TRIM4#

main71073-32070-14iSV11..LE198308-198408

FB,BLUE,BLUE,TRIM8#

main71073-32200-03iCV1#,SV11..DLX198408-198607

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71073-32200-04iCV1#,SV11..DLX198408-198607

FB,BLUE,BLUE,TRIM8#

main71073-32200-05iCV1#,SV11..DLX198408-198607

FB,BEIGE,BEIGE,TRIM4#

main71073-32210-03iSV11..LE198408-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71073-32210-04iSV11..LE198408-198508

FB,BLUE,BLUE,TRIM8#

main71073-32210-05iSV11..LE198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71073-32211-03iSV11..LE198508-198607

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71073-32211-04iSV11..LE198508-198607

FB,BLUE,BLUE,TRIM8#

main71073-32211-05iSV11..LE198508-198607

FB,BEIGE,BEIGE,TRIM4#

71073WWIRE, FRONT SEATBACK COVER

main90580-20127iCV1#,SV11198301-198607

WD=2.0,L=460

main90580-29011iCV1#,SV11..DLX198408-198607

WD=2.9,L=330

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-32060-03iSV11..DLX198301-198305

FB,GRAY,GRAY,TRIM1#

main71073-32060-04iSV11..DLX198301-198305

FB,BLUE,BLUE,TRIM8#

main71073-32060-05iSV11..DLX198301-198305

FB,BEIGE,BEIGE,TRIM4#

main71073-32070-03iSV11..LE198301-198408

FB,GRAY,GRAY,TRIM1#

main71073-32070-04iSV11..LE198301-198308

FB,BLUE,BLUE,TRIM8#

main71073-32070-05iSV11..LE198301-198408

FB,BEIGE,BEIGE,TRIM4#

main71073-32070-14iSV11..LE198308-198408

FB,BLUE,BLUE,TRIM8#

main71073-32210-03iSV11..LE198408-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71073-32210-04iSV11..LE198408-198508

FB,BLUE,BLUE,TRIM8#

main71073-32210-05iSV11..LE198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71073-32211-03iSV11..LE198508-198607

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71073-32211-04iSV11..LE198508-198607

FB,BLUE,BLUE,TRIM8#

main71073-32211-05iSV11..LE198508-198607

FB,BEIGE,BEIGE,TRIM4#

main71074-32040-03iSV11..DLX198305-198308

FB,GRAY,GRAY,TRIM1#

sub71073-32060

main71074-32040-04iSV11..DLX198305-198308

FB,BLUE,BLUE,TRIM8#

sub71073-32060

main71074-32040-05iSV11..DLX198305-198308

FB,BEIGE,BEIGE,TRIM4#

sub71073-32060

main71074-32041-03iCV10,SV11..DLX198308-198408

FB,GRAY,GRAY,TRIM1#

sub71073-32061

main71074-32041-04iCV10,SV11..DLX198308-198408

FB,BLUE,BLUE,TRIM8#

sub71073-32061

main71074-32041-05iCV10,SV11..DLX198308-198408

FB,BEIGE,BEIGE,TRIM4#

sub71073-32061

main71074-32050-03iCV1#,SV11..DLX198408-198607

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71074-32050-04iCV1#,SV11..DLX198408-198607

FB,BLUE,BLUE,TRIM8#

main71074-32050-05iCV1#,SV11..DLX198408-198607

FB,BEIGE,BEIGE,TRIM4#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-32030iCV10,SV11..DLX198301-198408

main71511-32040iSV11..LE198301-198408

main71511-32060iCV1#,SV11198408-198607

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-32030iCV10,SV11..DLX198301-198408

main71511-32040iSV11..LE198301-198408

main71511-32060iCV1#,SV11198408-198607

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-32040iCV10,SV11..DLX198301-198408

main71551-32050iSV11..LE198301-198408

main71551-32070iCV1#,SV11198408-198607

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-32040iCV10,SV11..DLX198301-198408

main71551-32050iSV11..LE198301-198408

main71551-32070iCV1#,SV11198408-198607

71571PAD, FRONT SEATBACK SILENCER, A

main71571-24010iCV1#,SV11198301-198607

71581CPAD, FRONT SEATBACK CORNER, C

main71583-32010iCV10,SV11198301-198607

71581DPAD, FRONT SEATBACK CORNER, D

main71584-32010iCV10,SV11198301-198607

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-32010iCV1#,SV11198301-198607

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71610-32020iCV1#,SV11198301-198607

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-32010iCV10,SV11198301-198408

main71630-32040iCV1#,SV11..DLX198408-198607

main71630-32060iSV11..LE198408-198607

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71630-32010iCV10,SV11..DLX198301-198408

main71630-32040iCV1#,SV11..DLX198408-198607

main71640-32010iSV11..LE198301-198408

main71640-32020iSV11..LE198408-198607

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-32010-03iCV10,SV11198301-198408

GRAY,GRAY,TRIM1#

sub71811-32010

main71811-32010-04iCV1#,SV11198301-198607

BLUE,BLUE,TRIM8#

sub71811-32010

main71811-32010-05iCV1#,SV11198408-198607

BEIGE,BEIGE,TRIM4#

sub71811-32010

main71811-32010-06iCV10,SV11198301-198408

BROWN,BROWN,TRIM4#

sub71811-32010

main71811-32010-13iCV1#,SV11198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub71811-32010

71812ARING, HOG, SMALL (FOR FRONT SEAT)

main90468-18071iCV1#,SV11198301-198607

sub90468-18008

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-32020-03iCV10,SV11198301-198408

GRAY,GRAY,TRIM1#

sub71812-32020

main71812-32020-04iCV1#,SV11198301-198607

BLUE,BLUE,TRIM8#

sub71812-32020

main71812-32020-05iCV1#,SV11198408-198607

BEIGE,BEIGE,TRIM4#

sub71812-32020

main71812-32020-06iCV10,SV11198301-198408

BROWN,BROWN,TRIM4#

sub71812-32020

main71812-32020-13iCV1#,SV11198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub71812-32020

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-32010-03iCV10,SV11198301-198408

GRAY,GRAY,TRIM1#

sub71861-32010

main71861-32010-04iCV1#,SV11198301-198607

BLUE,BLUE,TRIM8#

sub71861-32010

main71861-32010-05iCV1#,SV11198408-198607

BEIGE,BEIGE,TRIM4#

sub71861-32010

main71861-32010-06iCV10,SV11198301-198408

BROWN,BROWN,TRIM4#

sub71861-32010

main71861-32010-13iCV1#,SV11198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub71861-32010

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-32010-03iCV10,SV11198301-198408

GRAY,GRAY,TRIM1#

sub71862-32010

main71862-32010-04iCV1#,SV11198301-198607

BLUE,BLUE,TRIM8#

sub71862-32010

main71862-32010-05iCV1#,SV11198408-198607

BEIGE,BEIGE,TRIM4#

sub71862-32010

main71862-32010-06iCV10,SV11198301-198408

BROWN,BROWN,TRIM4#

sub71862-32010

main71862-32010-13iCV1#,SV11198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub71862-32010

71950HEADREST ASSY, FRONT SEAT

main71910-32010-03iCV10,SV11..DLX198301-198408

GRAY,GRAY,TRIM1#

sub71910-32100

main71910-32010-04iCV10,SV11..DLX198301-198408

BLUE,BLUE,TRIM8#

sub71910-32100

main71910-32010-05iCV10,SV11..DLX198301-198408

BEIGE,BEIGE,TRIM4#

sub71910-32100

main71910-32050-03iSV11..LE198301-198408

GRAY,GRAY,TRIM1#

main71910-32050-04iSV11..LE198301-198408

BLUE,BLUE,TRIM8#

main71910-32050-06iSV11..LE198301-198408

BROWN,BROWN,TRIM4#

main71910-32110-03iCV1#,SV11..DLX198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

main71910-32110-04iCV1#,SV11..DLX198408-198607

BLUE,BLUE,TRIM8#

main71910-32110-05iCV1#,SV11..DLX198408-198607

BEIGE,BEIGE,TRIM4#

main71910-32160-03iSV11..LE198408-198508

SHADOW GRAY,SHADOW GRAY,TRIM1#

main71910-32160-04iSV11..LE198408-198508

BLUE,BLUE,TRIM8#

main71910-32160-05iSV11..LE198408-198508

BEIGE,BEIGE,TRIM4#

main71910-32170-03iSV11..LE198508-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

main71910-32170-04iSV11..LE198508-198607

BLUE,BLUE,TRIM8#

main71910-32170-05iSV11..LE198508-198607

BEIGE,BEIGE,TRIM4#

71956ASUPPORT, FRONT SEAT HEADREST

main71930-10060-04iCV1#,SV11198301-198607

W(LOCK),W/LOCK,BLUE,BLUE,TRIM8#

sub71930-10060

main71930-10060-13iCV1#,SV11198301-198607

W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1#

sub71930-10060

main71930-10060-16iCV1#,SV11198408-198607

W(LOCK),W/LOCK,DARK BROWN,SABLE,TRIM4#

sub71930-10060

main71930-10060-25iCV10,SV11198301-198408

W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4#

sub71930-10060

main71931-10010-04iCV1#,SV11198301-198607

W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8#

sub71931-10010

main71931-10010-13iCV1#,SV11198301-198607

W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1#

sub71931-10010

main71931-10010-16iCV1#,SV11198408-198607

W/O(LOCK),W/O LOCK,DARK BROWN,SABLE,TRIM4#

sub71931-10010

main71931-10010-25iCV10,SV11198301-198408

W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4#

sub71931-10010

72011ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

main72011-32010iCV10,SV11198301-198406

sub72011-32H00

main72011-32030iCV1#,SV11198406-198607

72011ASPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER)

main90506-14039iCV1#,SV11198301-198607

WD=1.4

main90506-35001iCV1#,SV11198301-198607

WD=4.5

72011BSPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER)

main90506-18035iCV10,SV11198301-198406

72012ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH

main72012-32020iCV10,SV11198301-198406

main72012-32050iCV1#,SV11198406-198607

72021ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH

main72021-32010iCV10,SV11198301-198406

sub72011-32H00

main72021-32040iCV1#,SV11198406-198607

72022ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH

main72022-32020iCV10,SV11198301-198406

main72022-32050iCV1#,SV11198406-198607

72457AKNOB, SEAT ADJUSTER

main72496-32010-03iCV10,SV11198301-198408

GRAY,GRAY,TRIM1#

sub72496-32010

main72496-32010-04iCV1#,SV11198301-198607

BLUE,BLUE,TRIM8#

sub72496-32010

main72496-32010-05iCV1#,SV11198408-198607

BEIGE,BEIGE,TRIM4#

sub72496-32010

main72496-32010-06iCV10,SV11198301-198408

BROWN,BROWN,TRIM4#

sub72496-32010

main72496-32010-23iCV1#,SV11198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub72496-32010

72496KNOB, VERTICAL SEAT ADJUSTER, NO.2

main72457-14030-03iCV10,SV11198301-198408

GRAY,GRAY,TRIM1#

sub72457-14030

sub72457-89102

main72457-14030-04iCV1#,SV11198301-198607

BLUE,BLUE,TRIM8#

sub72457-14030

sub72457-89102

main72457-14030-16iCV10,SV11198301-198408

BROWN,BROWN,TRIM4#

sub72457-14030

sub72457-89102

main72457-14030-23iCV1#,SV11198408-198607

SHADOW GRAY,GRAY,TRIM1#

sub72457-14030

sub72457-89102

main72457-14030-35iCV1#,SV11198408-198607

BEIGE,BEIGE,TRIM4#

sub72457-14030

sub72457-89102

72501CPIPE SUB-ASSY, RECLINING CONNECTING

main72501-32010iCV1#,SV11198301-198607

72524HANDLE, RECLINING ADJUSTER RELEASE

main72525-20050-13iCV10,SV11198301-198408

RH,GRAY,GRAY,TRIM1#

sub72525-20050

main72525-20050-24iCV1#,SV11198301-198607

RH,BLUE,BLUE,TRIM8#

sub72525-20050

main72525-20050-26iCV10,SV11198301-198408

RH,BROWN,BROWN,TRIM4#

sub72525-20050

main72525-20050-53iCV1#,SV11198408-198607

RH,SHADOW GRAY,SHADOW GRAY,TRIM1#

sub72525-20050

main72525-20050-55iCV1#,SV11198408-198607

RH,BEIGE,BEIGE,TRIM4#

sub72525-20050

main72526-20040-13iCV10,SV11198301-198408

LH,GRAY,GRAY,TRIM1#

sub72526-20040

main72526-20040-24iCV1#,SV11198301-198607

LH,BLUE,BLUE,TRIM8#

sub72526-20040

main72526-20040-26iCV10,SV11198301-198408

LH,BROWN,BROWN,TRIM4#

sub72526-20040

main72526-20040-53iCV1#,SV11198408-198607

LH,SHADOW GRAY,SHADOW GRAY,TRIM1#

sub72526-20040

main72526-20040-55iCV1#,SV11198408-198607

LH,BEIGE,BEIGE,TRIM4#

sub72526-20040

9011908276

main90119-08276

9011910117

main90119-10117

9016840041

main90168-40041

9016840049

main90168-40049

9046710015

main90467-10015

9046804076

main90468-04076

9052001002

main90520-01002

9052308001

main90523-08001

9161560820

main91615-60820

9324954006

main93249-54006

9356054010

main93560-54010

45 parts on this diagram · 3 diagrams in section
