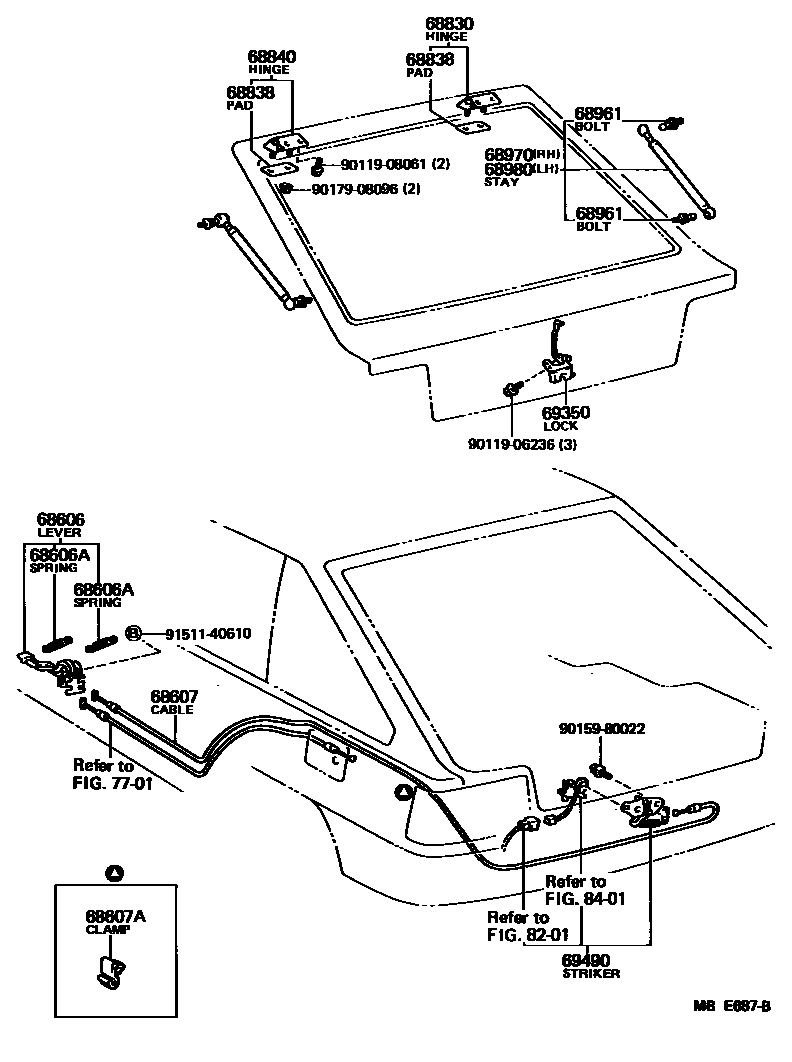

BACK DOOR LOCK & HANDLE
68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN
68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
sub64607-16170
68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)
68838PAD, BACK DOOR HINGE, NO.1
sub68838-14022
68970STAY ASSY, BACK DOOR, RH
W/O RR WIPER
W/RR WIPER
W/O RR WIPER
W/RR WIPER
68980STAY ASSY, BACK DOOR
W/O RR WIPER
W/RR WIPER
W/O RR WIPER
W/RR WIPER
69350LOCK ASSY, BACK DOOR
SHIROKI
69490STRIKER ASSY, BACK DOOR LOCK
SHIROKI
7701
8201
8401
9011906236
main90119-06236
9011908061
main90119-08061
9015980022
main90159-80022
9017908096
main90179-08096
9151140610
main91511-40610
20 parts on this diagram · 1 diagram in section
