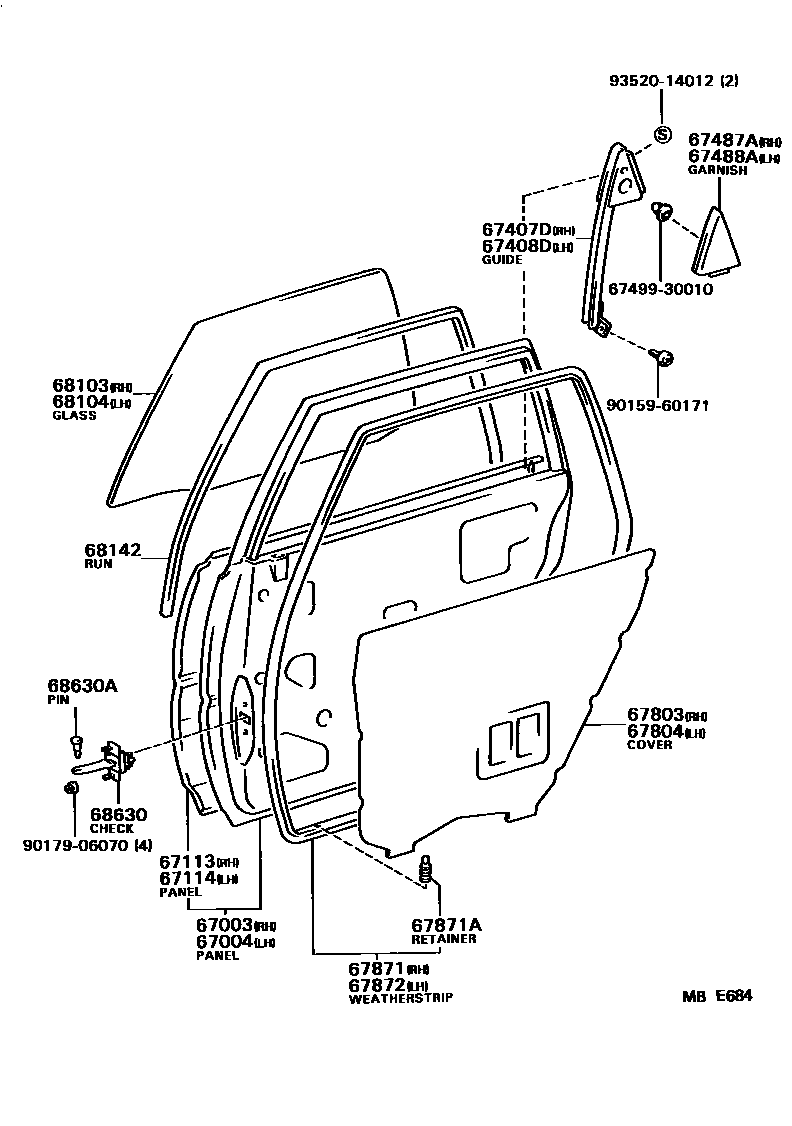

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67487AGARNISH, REAR DOOR REAR GUIDE BRACKET, RH
67488AGARNISH, REAR DOOR REAR GUIDE BRACKET, LH
67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH
67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH
67871WEATHERSTRIP, REAR DOOR, RH
67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TT,T=3.5
BRONZE,*TT,T=3.5
*TT,T=3.5
BRONZE,*TT,T=3.5
68104GLASS SUB-ASSY, REAR DOOR, LH
*TT,T=3.5
BRONZE,*TT,T=3.5
*TT,T=3.5
BRONZE,*TT,T=3.5
68142RUN, REAR DOOR GLASS
68630CHECK ASSY, REAR DOOR
68630APIN(FOR REAR DOOR CHECK)
6749930010RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
9015960171
9017906070
9352014012
22 parts on this diagram · 4 diagrams in section
