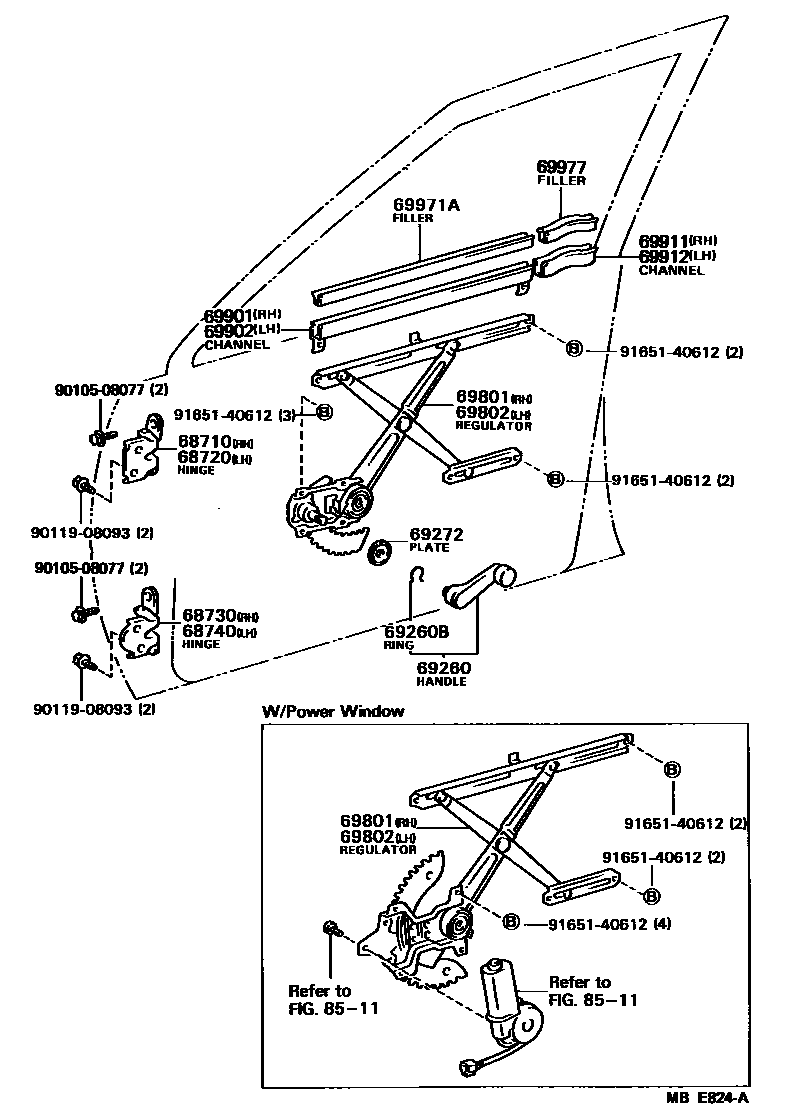

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-32010iCV1#,SV11198301-198607

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-32010iCV1#,SV11198301-198607

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-32010iCV1#,SV11198301-198607

sub68730-30090

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-32010iCV1#,SV11198301-198607

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-14020-03iCV10,SV11198301-198408

GRAY,GRAY,TRIM1#

sub69260-14020

sub69260-22030

main69260-14020-04iCV10,SV11198301-198408

BLUE,BLUE,TRIM8#

sub69260-14020

sub69260-22030

main69260-14020-16iCV10,SV11198301-198408

BROWN,BROWN,TRIM4#

sub69260-14020

sub69260-22030

main69260-22020-13iCV1#,SV11198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub69260-22020

sub69260-14030

main69260-22020-14iCV1#,SV11198408-198607

BLUE,BLUE,TRIM8#

sub69260-22020

sub69260-14030

main69260-22020-35iCV1#,SV11198408-198607

BEIGE,BEIGE,TRIM4#

sub69260-22020

sub69260-14030

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iCV1#,SV11198301-198607

sub90520-01274

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69272-30010iCV1#,SV11198408-198607

main69285-22010iCV10,SV11198301-198408

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-32010iSV11..LE..4D198301-198607

W/POWER WINDOW

main69801-32020iSV11..LE..5D198301-198607

W/POWER WINDOW

main69810-32020iCV1#,SV11..4D198301-198607

W/O POWER WINDOW

main69810-32030iSV11..5D198301-198607

W/O POWER WINDOW

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-32010iSV11..LE..4D198301-198607

W/POWER WINDOW

main69802-32020iSV11..LE..5D198301-198607

W/POWER WINDOW

main69820-32020iCV1#,SV11..4D198301-198607

W/O POWER WINDOW

main69820-32030iSV11..5D198301-198607

W/O POWER WINDOW

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-32010iCV1#,SV11198301-198607

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-32010iCV1#,SV11198301-198607

69911CHANNEL, FRONT DOOR GLASS, REAR RH

main69911-32010iCV10,SV11198301-198406

69912CHANNEL, FRONT DOOR GLASS, REAR LH

main69911-32010iCV10,SV11198301-198406

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-22010iCV1#,SV11198301-198607

sub69971-95110

69977FILLER, FRONT DOOR GLASS CHANNEL, REAR

main69977-32010iCV10,SV11198301-198406

8511

9010508077

main90105-08077

9011908093

main90119-08093

9165140612

main91651-40612

19 parts on this diagram · 1 diagram in section
