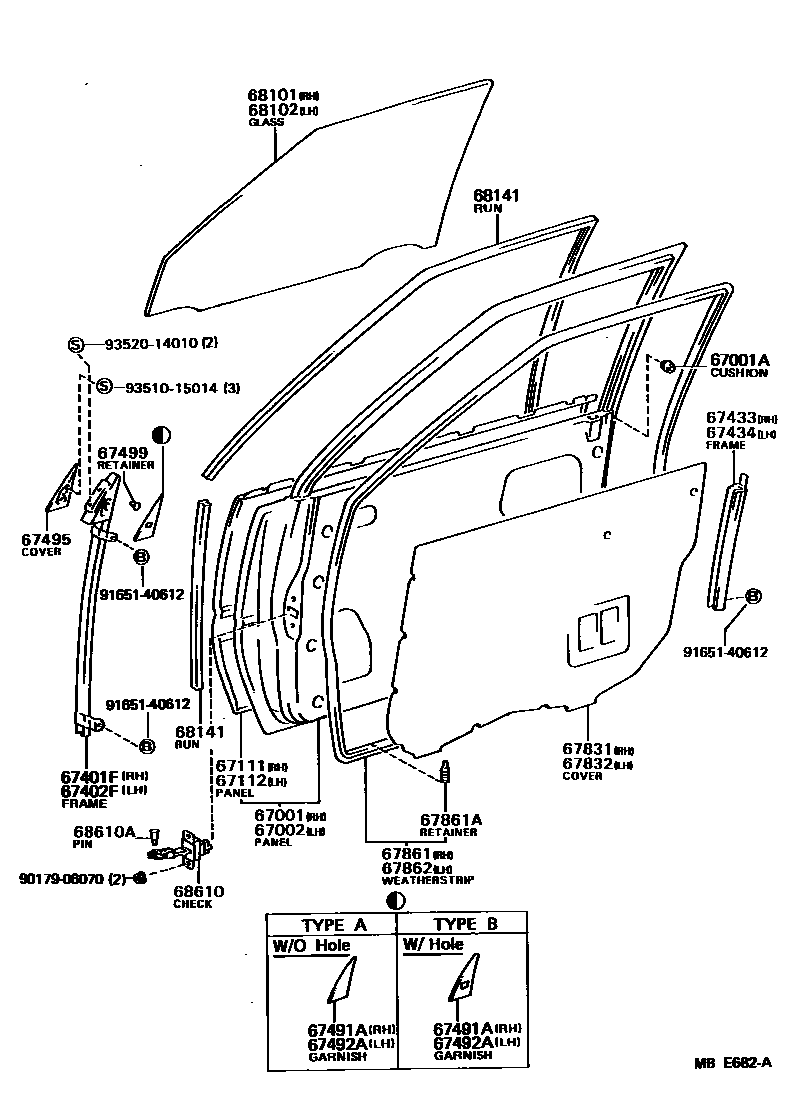

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67433FRAME, FRONT DOOR WINDOW, REAR LOWER RH
67434FRAME, FRONT DOOR WINDOW, REAR LOWER LH
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
TYPE A
TYPE B
TYPE A
TYPE B
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
TYPE A
TYPE B
TYPE A
TYPE B
67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER
RH
RH
RH
RH
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=4.0
BRONZE,*TT,T=4.0
*TT,T=4.0
BRONZE,*TT,T=4.0
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=4.0
BRONZE,*TT,T=4.0
*TT,T=4.0
BRONZE,*TT,T=4.0
68141RUN, FRONT DOOR GLASS
LONG
LONG
LONG
LONG
SHORT
SHORT
9017906070
main90179-06070
9165140612
main91651-40612
9351015014
main93510-15014
9352014010
main93520-14010
27 parts on this diagram · 3 diagrams in section
