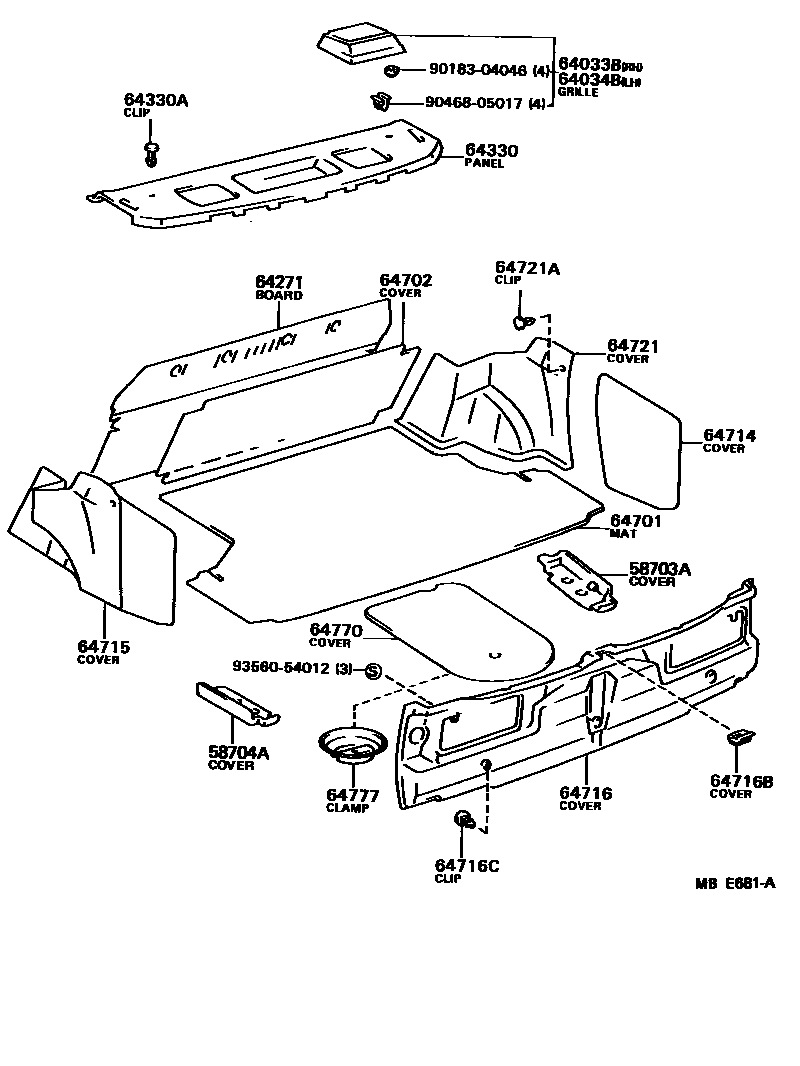

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
64271BOARD, ROOM PARTITION, NO.1
64330PANEL ASSY, PACKAGE TRAY TRIM
W/SPEAKER,DARK GRAY,GRAY,TRIM1#
W/SPEAKER,BLUE,BLUE,TRIM8#
W/SPEAKER,BEIGE,BEIGE,TRIM4#
W/SPEAKER,DARK GRAY,BROWN,TRIM1#
W/SPEAKER,SHADOW GRAY,SHADOW GRAY,TRIM1#
W/O SPEAKER,DARK GRAY,GRAY,TRIM1#
W/O SPEAKER,BEIGE,BEIGE,TRIM4#
W/O SPEAKER,DARK BROWN,BROWN,TRIM4#
W/O SPEAKER,SHADOW GRAY,SHADOW GRAY,TRIM1#
W/O SPEAKER,SHADOW GRAY,SHADOW GRAY,TRIM1#
W/O SPEAKER,BEIGE,BEIGE,TRIM4#
W/SPEAKER,SHADOW GRAY,SHADOW GRAY,TRIM1#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
BLACK,BLACK
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
64702COVER SUB-ASSY, LUGGAGE COMPARTMENT, FRONT
64714COVER, LUGGAGE COMPARTMENT, RH
64715COVER, LUGGAGE COMPARTMENT, LH
64716COVER, LUGGAGE COMPARTMENT, REAR CENTER
64716BCOVER, LUGGAGE COMPARTMENT DOOR STRIKER
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64770COVER ASSY, SPARE WHEEL
W/COMPACT SPARE TIRE
W/O COMPACT SPARE TIRE
64777CLAMP, SPARE WHEEL COVER
9018304046
9046805017
9356054012
21 parts on this diagram · 1 diagram in section
