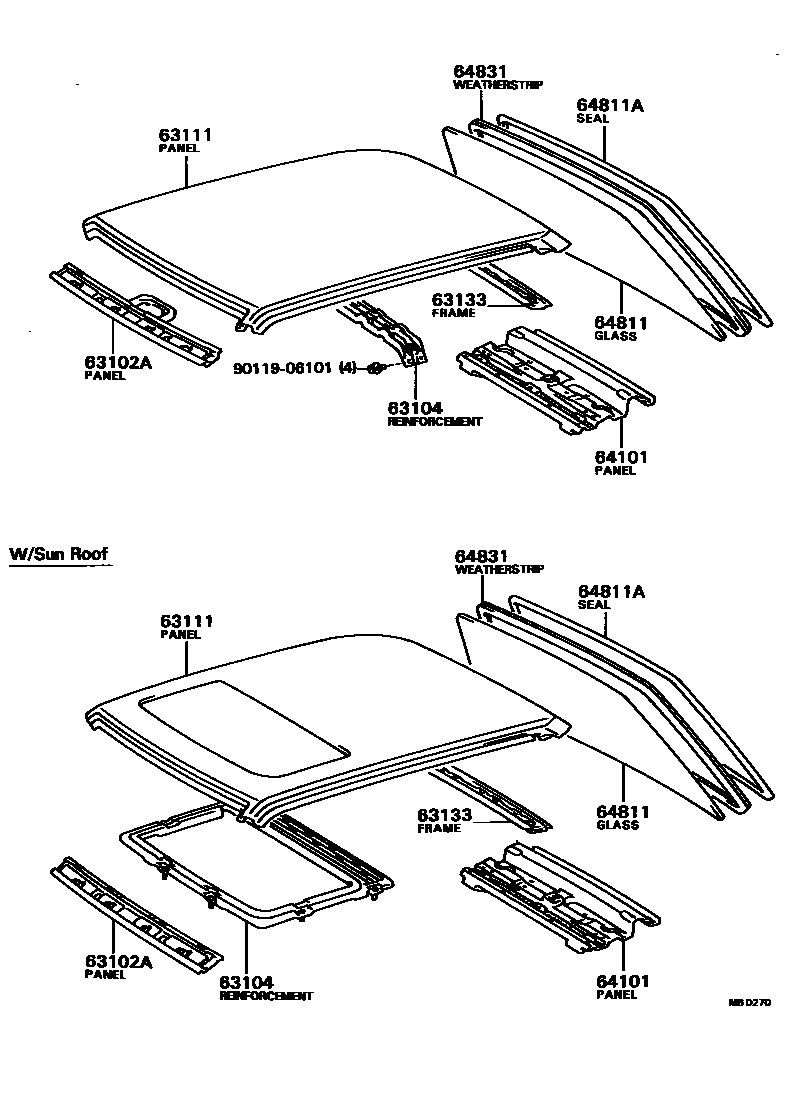

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-32010iCV1#,SV11..4D198301-198607

W/O MAP LAMP

main63102-32020iSV11..LE..4D198301-198607

W/MAP LAMP

main63102-32030iSV11..5D198301-198607

W/O MAP LAMP

main63102-32040iSV11..LE..5D198301-198607

W/MAP LAMP

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-32010iCV1#,SV11..4D198301-198607

W/O SUN ROOF

main63141-32020iSV11..5D198301-198607

W/O SUN ROOF

main63142-32010iSV11..LE198301-198607

W/SUN ROOF

63111PANEL, ROOF

main63111-32010iCV1#,SV11..4D198301-198607

W/O SUN ROOF

main63111-32020iSV11..LE..4D198301-198607

W/SUN ROOF

main63111-32030iSV11..5D198301-198607

W/O SUN ROOF

main63111-32040iSV11..LE..5D198301-198607

W/SUN ROOF

63133FRAME, BACK WINDOW OPENING, UPPER

main63133-32010iCV1#,SV11..4D198301-198607

64101PANEL SUB-ASSY, UPPER BACK

main64101-32020iCV10,SV11..4D198301-198508

sub64101-32021

main64101-32021iCV11,SV11..4D198508-198607

64811GLASS, BACK WINDOW

main64811-32010iCV10,SV11..4D..USA198301-198508

*EHTT,T=4.0

sub64811-32011

main64811-32011iCV11,SV11..4D..USA198508-198607

*EHTT,T=4.0

main64811-32040iCV10,SV11..4D198301-198508

*EHTT,HEAVY,T=4.0

sub64811-32041

main64811-32041iCV11,SV11..4D198508-198607

*EHTT,HEAVY,T=4.0

main64811-32050iSV11..LE..4D..USA198301-198508

BRONZE,*EHTT,T=4.0

sub64811-32051

main64811-32051iSV11..LE..4D..USA198508-198607

BRONZE,*EHTT,T=4.0

main64811-32060iSV11..LE..4D198301-198508

BRONZE,*EHTT,HEAVY,T=4.0

sub64811-32061

main64811-32061iSV11..LE..4D198508-198607

BRONZE,*EHTT,HEAVY,T=4.0

64811ASEAL, BACK WINDOW GLASS WEATHERSTRIP

main64814-14030iCV10,SV11..4D198301-198311

sub64814-20020

main64814-32030iCV1#,SV11..4D198311-198607

sub64814-32020

64831WEATHERSTRIP, BACK WINDOW GLASS

main64812-32010iCV10,SV11..4D198301-198408

sub64812-32020

main64812-32020iCV10,SV11..4D198408-198501

sub64812-32021

main64812-32021iCV1#,SV11..4D198501-198607

9011906101

main90119-06101

9 parts on this diagram · 3 diagrams in section
