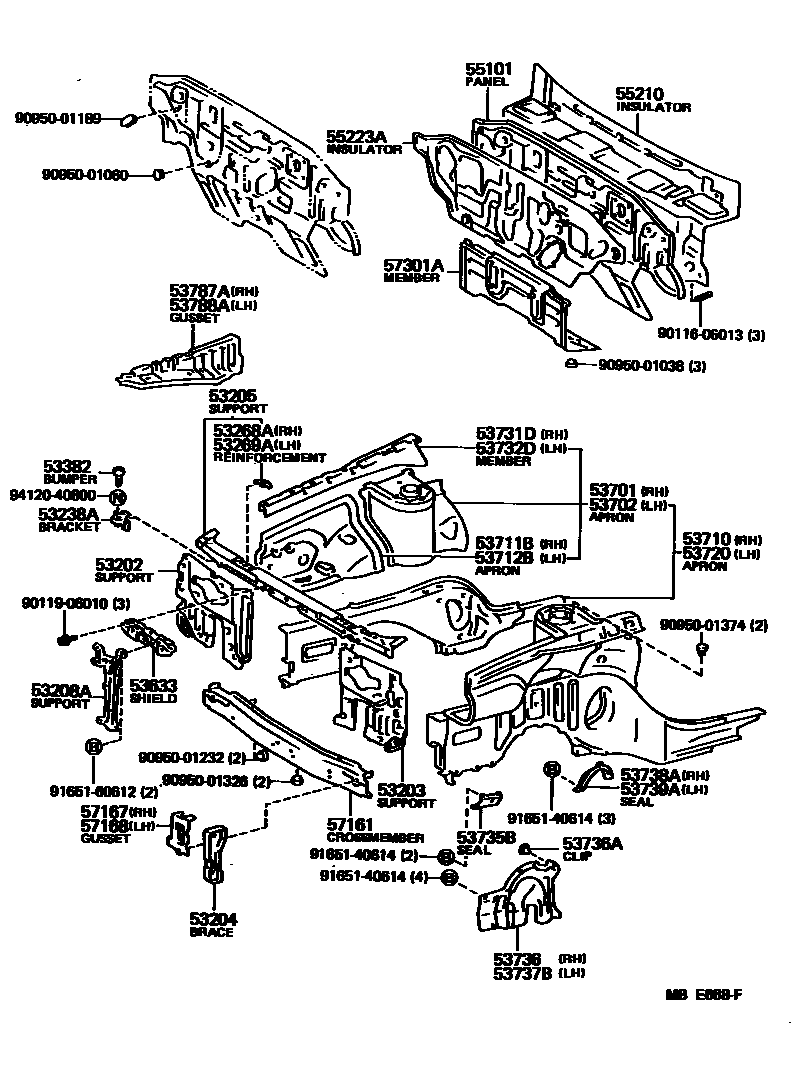

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-32010iCV10,SV11¥6,800198301-198408

main53202-32011iCV1#,SV11¥6,800198408-198607

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-32010iSV11¥6,800198301-198408

sub53203-32020¥6,800

main53203-32010iCV10¥6,800198308-198408

COLD SPEC

sub53203-32020¥6,800

main53203-32011iCV1#¥6,800198408-198607

main53203-32020iCV10¥6,800198308-198408

main53203-32021iCV1#198408-198607

COLD SPEC

sub53203-32011¥6,800

53204BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER

main53217-32020iCV1#,SV11¥1,680198301-198607

RH

main53218-32020iCV1#,SV11¥1,680198301-198607

LH

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-32020iCV1#,SV11¥6,800198301-198607

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-32020iCV10,SV11¥3,180198301-198408

main53208-32021iCV1#,SV11¥3,180198408-198607

53238ABRACKET, HOOD BUMPER MOUNTING

main53238-32010iCV1#,SV11¥700198301-198607

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-32010iCV10,SV11¥250198301-198409

sub53268-32011¥260

main53268-32011iCV1#,SV11¥260198409-198607

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53268-32010iCV10,SV11¥250198301-198409

sub53268-32011¥260

main53269-32010iCV1#,SV11¥260198409-198607

53382BUMPER, HOOD, FRONT

main53382-20011iCV1#,SV11¥310198301-198607

sub53382-90A00¥310

53633SHIELD, HOOD LOCK CONTROL CABLE

main53633-32020iCV1#,SV11¥930198301-198607

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-32901iCV10,SV11¥29,200198301-198508

sub53701-32904¥37,500

main53701-32904iSV11¥37,500198508-198607

main53701-32907iCV11198508-198607

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-32901iCV10,SV11¥29,200198301-198508

sub53702-32904¥37,500

main53702-32904iCV11,SV11¥37,500198508-198607

53710APRON ASSY, W/FRONT SIDE MEMBER, RH

main53701-32020iCV10,SV11¥66,200198301-198508

sub53701-32021¥66,500

main53701-32021iSV11¥66,500198508-198607

sub53701-32050¥66,500

main53701-32050iCV11¥66,500198508-198607

53711BAPRON, FRONT FENDER, FRONT RH

main53711-32020iCV1#,SV11¥36,100198301-198607

53712BAPRON, FRONT FENDER, FRONT LH

main53712-32020iCV1#,SV11¥36,100198301-198607

53720APRON ASSY, W/FRONT SIDE MEMBER, LH

main53702-32020iCV10,SV11¥66,200198301-198508

sub53702-32021¥66,500

main53702-32021iCV11,SV11¥66,500198508-198607

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-32010iCV1#,SV11¥6,600198301-198607

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-32010iCV1#,SV11¥6,600198301-198607

53735BSEAL, FRONT FENDER APRON, UPPER

main53735-32010iCV1#¥970198308-198607

53736SEAL, FRONT FENDER APRON, RH

main53736-32010iCV1#,SV11¥4,950198301-198607

53736ACLIP(FOR FRONT FENDER APRON SEAL)

main90467-09030iCV1#,SV11¥90198301-198607

53737BSEAL, FRONT FENDER APRON, LH

main53737-32010iCV1#,SV11¥4,950198301-198607

53738ASEAL, FRONT FENDER APRON, REAR RH

main53738-32010iSV11¥1,060198301-198607

53739ASEAL, FRONT FENDER APRON, REAR LH

main53739-32010iCV1#,SV11¥1,060198301-198607

53787AGUSSET, FRONT FENDER APRON, LOWER RH

main53787-32010iCV1#,SV11¥2,490198301-198607

53788AGUSSET, FRONT FENDER APRON, LOWER LH

main53788-32010iCV1#,SV11¥2,490198301-198607

55101PANEL SUB-ASSY, DASH

main55101-32902iSV11198301-198607

main55101-32904iCV10198308-198607

55210INSULATOR ASSY, DASH PANEL

main55210-32020iCV10,SV11¥28,100198301-198404

sub55210-32021¥28,200

main55210-32021iCV1#,SV11¥28,200198404-198607

55223AINSULATOR, DASH PANEL, OUTER

main55223-32020iCV10¥16,200198308-198404

sub55223-32021¥16,200

main55223-32021iCV10¥16,200198404-198607

57161CROSSMEMBER, FRONT

main57104-32020iCV1#,SV11¥14,800198301-198607

57167GUSSET, FRONT CROSSMEMBER, UPPER RH

main57167-32020iCV1#,SV11¥2,230198301-198607

57168GUSSET, FRONT CROSSMEMBER, UPPER LH

main57168-32020iCV1#,SV11¥2,230198301-198607

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-32020iCV1#,SV11198301-198607

9011606013

main90116-06013¥140

9011906010

main90119-06010¥90

9095001038

main90950-01038¥220

9095001060

main90950-01060¥200

9095001189

main90950-01189¥240

9095001232

main90950-01232¥220

9095001326

main90950-01326¥200

9095001374

main90950-01374¥120

9165140614

main91651-40614¥160

9165160612

main91651-60612¥90

9412040800

main94120-40800¥90

44 parts on this diagram · 2 diagrams in section
