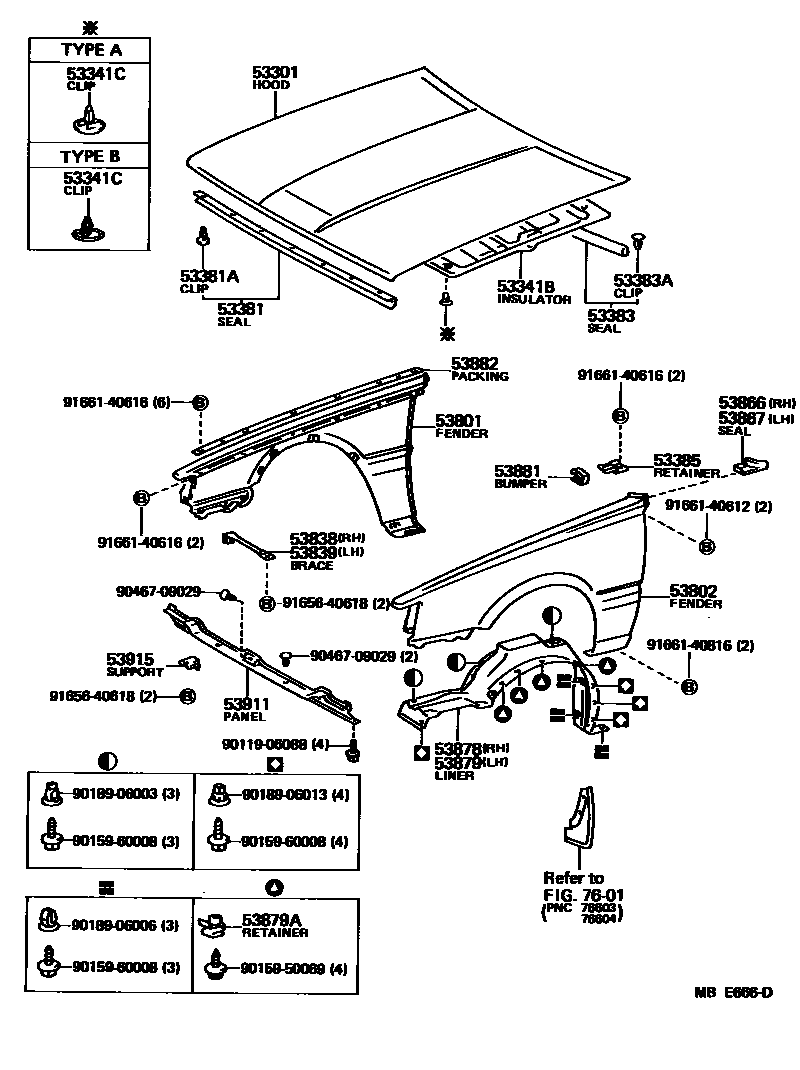

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-32030iCV1#,SV11¥44,300198301-198607

53341BINSULATOR, HOOD

main53341-32010iSV11..LE¥10,500198301-198607

sub53341-32020¥10,500

main53341-32020iCV1#¥10,500198308-198607

53341CCLIP(FOR HOOD INSULATOR)

main90467-09006iSV11..LE¥110198301-198607

TYPE A

main90467-11020iCV1#¥180198308-198607

TYPE B

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-32010iCV1#,SV11¥2,560198301-198607

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iCV1#,SV11¥100198301-198607

53383SEAL, HOOD TO COWL TOP

main53383-32010iCV1#,SV11¥1,420198301-198607

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08030iCV10,SV11¥170198301-198405

main90467-08044iCV1#,SV11¥170198405-198607

sub90467-08011¥100

53385RETAINER, HOOD, BUMPER

main53385-14010iCV1#,SV11¥270198301-198607

RH

main53386-14010iCV1#,SV11¥270198301-198607

LH

53801FENDER SUB-ASSY, FRONT RH

main53801-32030iCV10,SV11¥40,500198301-198408

main53801-32031iCV1#,SV11¥40,500198408-198607

53802FENDER SUB-ASSY, FRONT LH

main53802-32020iCV10,SV11¥42,500198301-198408

main53802-32021iCV1#,SV11¥42,500198408-198607

53838BRACE, FRONT FENDER, RH

main53835-32010iCV1#,SV11¥670198301-198607

53839BRACE, FRONT FENDER, LH

main53835-32010iCV1#,SV11¥670198301-198607

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-32010iCV1#,SV11¥850198408-198607

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-32010iCV1#,SV11¥850198408-198607

53878LINER, FRONT FENDER, RH

main53875-32010iCV1#,SV11¥5,200198301-198607

53879LINER, FRONT FENDER, LH

main53876-32010iCV1#,SV11¥5,200198301-198607

53879ARETAINER, FRONT FENDER LINER

main53879-14010iCV1#,SV11¥230198301-198607

53881BUMPER, FENDER TO HOOD

main53384-14030iCV1#,SV11¥300198301-198607

53882PACKING, FRONT FENDER MAIN

main53882-32010iCV1#,SV11¥1,620198301-198607

53911PANEL, FRONT VALANCE

main53911-32010iCV10,SV11¥15,200198301-198607

main53911-32900iSV11..LE¥15,100198408-198410

sub53911-32010¥15,200

main53911-32900iSV11..LE¥15,100198301-198408

TWO TONE

sub53911-32010¥15,200

53915SUPPORT, FRONT VALANCE PANEL

main53915-32010iCV1#,SV11¥770198301-198607

7601

9011906088

main90119-06088¥130

9015950069

main90159-50069¥160

9015960008

main90159-60008¥70

9018906003

main90189-06003¥140

9018906006

main90189-06006¥100

9018906013

main90189-06013¥70

9046709029

main90467-09029¥130

9165640618

main91656-40618¥120

9166140612

main91661-40612¥130

9166140616

main91661-40616¥80

9166140816

main91661-40816

33 parts on this diagram · 1 diagram in section
