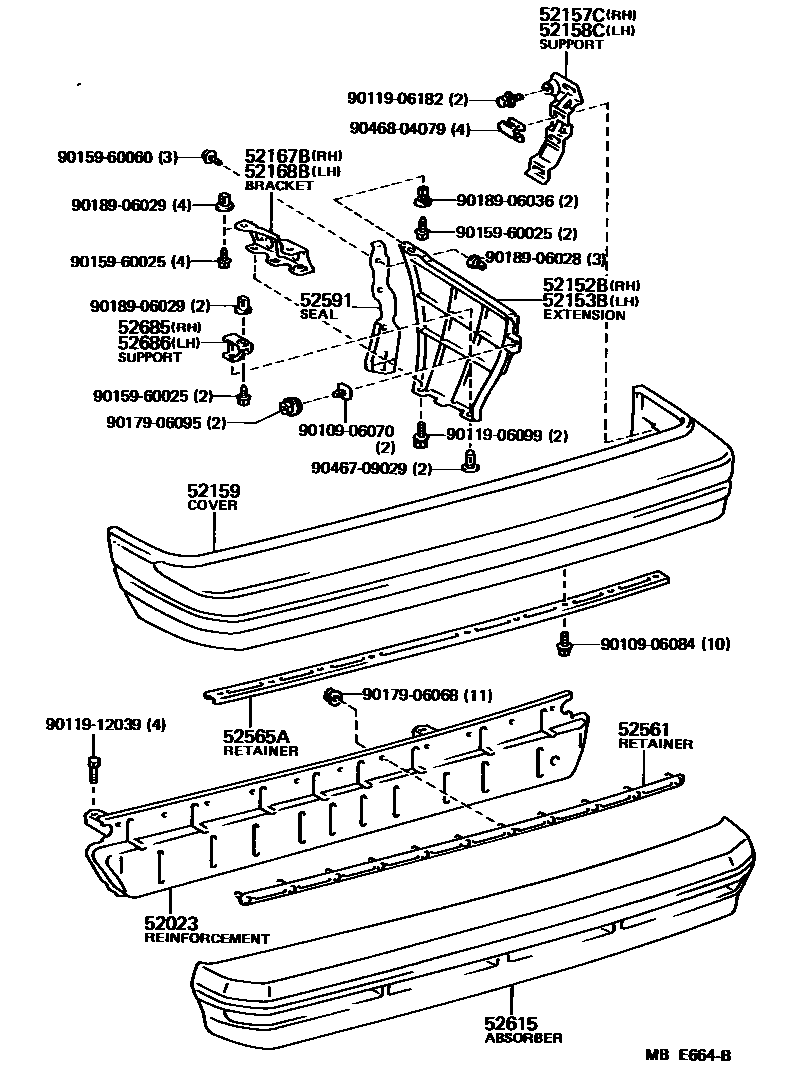

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-32030iCV1#,SV11198301-198607

52152BEXTENSION, REAR BUMPER, RH

main52152-32040iCV10,SV11198301-198607

main52152-32900iSV11..LE198301-198408

TWO TONE

sub52152-32040

main52152-32900iSV11..LE198408-198410

sub52152-32040

52153BEXTENSION, REAR BUMPER, LH

main52153-32040iCV10,SV11198301-198607

main52153-32900iSV11..LE198408-198410

sub52153-32040

main52153-32900iSV11..LE198301-198408

TWO TONE

sub52153-32040

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-32020iCV1#,SV11198301-198607

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-32010iCV1#,SV11198301-198607

52159COVER, REAR BUMPER

main52159-32060iCV10,SV11198301-198607

main52159-32905iSV11..LE198301-198408

TWO TONE

main52159-32905iSV11..LE198408-198607

52167BBRACKET, REAR BUMPER EXTENSION MOUNTING, RH

main52167-32010iCV1#,SV11198301-198607

52168BBRACKET, REAR BUMPER EXTENSION MOUNTING, LH

main52168-32010iCV1#,SV11198301-198607

52561RETAINER, REAR BUMPER, UPPER CENTER

main52521-32030iCV1#,SV11198301-198607

52565ARETAINER, REAR BUMPER, LOWER

main52565-32020iCV1#,SV11198301-198607

52591SEAL, REAR BUMPER SIDE, RH

main52591-32010iCV1#,SV11198301-198607

52615ABSORBER, REAR BUMPER ENERGY

main52615-32030iCV1#,SV11198301-198607

52685SUPPORT, REAR BUMPER SIDE, NO.3 RH

main52685-32010iCV1#,SV11198301-198607

52686SUPPORT, REAR BUMPER SIDE, NO.3 LH

main52686-32010iCV1#,SV11198301-198607

9010906070

main90109-06070

9010906084

main90109-06084

9011906099

main90119-06099

9011906182

main90119-06182

9011912039

main90119-12039

9015960025

main90159-60025

9015960060

main90159-60060

9017906068

main90179-06068

9017906095

main90179-06095

9018906028

main90189-06028

9018906029

main90189-06029

9018906036

main90189-06036

9046709029

main90467-09029

9046804079

main90468-04079

28 parts on this diagram · 1 diagram in section
