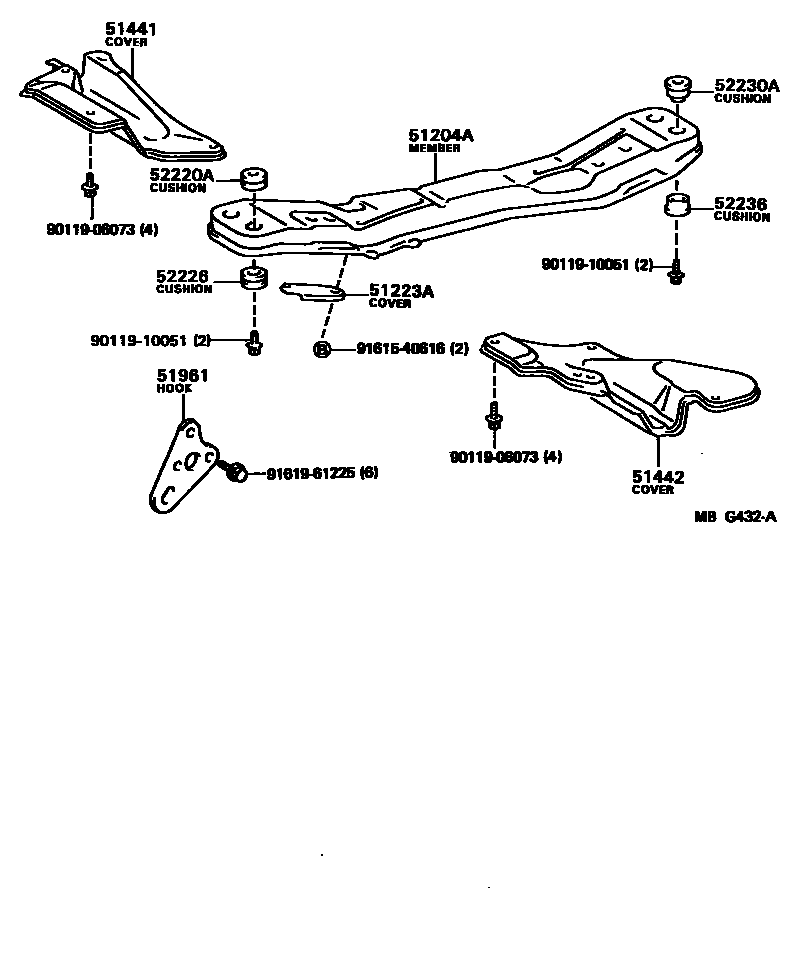

SUSPENSION CROSSMEMBER & UNDER COVER

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-32010iCV1#,SV11198301-198607

51223ACOVER, ENGINE MOUNTING HOLE

main51223-32010×2iCV1#,SV11198301-198607

51441COVER, ENGINE UNDER, NO.1

main51441-32010iSV11198301-198607

main51441-32020iCV1#198308-198607

51442COVER, ENGINE UNDER, NO.2

main51442-32010iCV10,SV11..5F198301-198607

main51442-32020iCV1#,SV11..4FC198301-198607

51961HOOK, NO.1

main51963-32010×2iCV1#,SV11198301-198607

52220ACUSHION ASSY, CENTER MEMBER MOUNTING, FRONT UPPER

main52220-32010×2iSV11198301-198607

main52220-32020×2iCV1#198308-198607

52226CUSHION, CENTER MEMBER MOUNTING, FRONT LOWER

main52226-32010×2iSV11198301-198607

main52226-32020×2iCV1#198308-198607

52230ACUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER

main52230-32010×2iSV11198301-198607

main52230-32020×2iCV1#198308-198607

52236CUSHION, CENTER MEMBER MOUNTING, REAR LOWER

main52236-32010×2iSV11198301-198607

main52236-32020×2iCV1#198308-198607

9011906073

main90119-06073

9011910051

main90119-10051

9161540616

main91615-40616

9161961225

main91619-61225

13 parts on this diagram · 1 diagram in section
