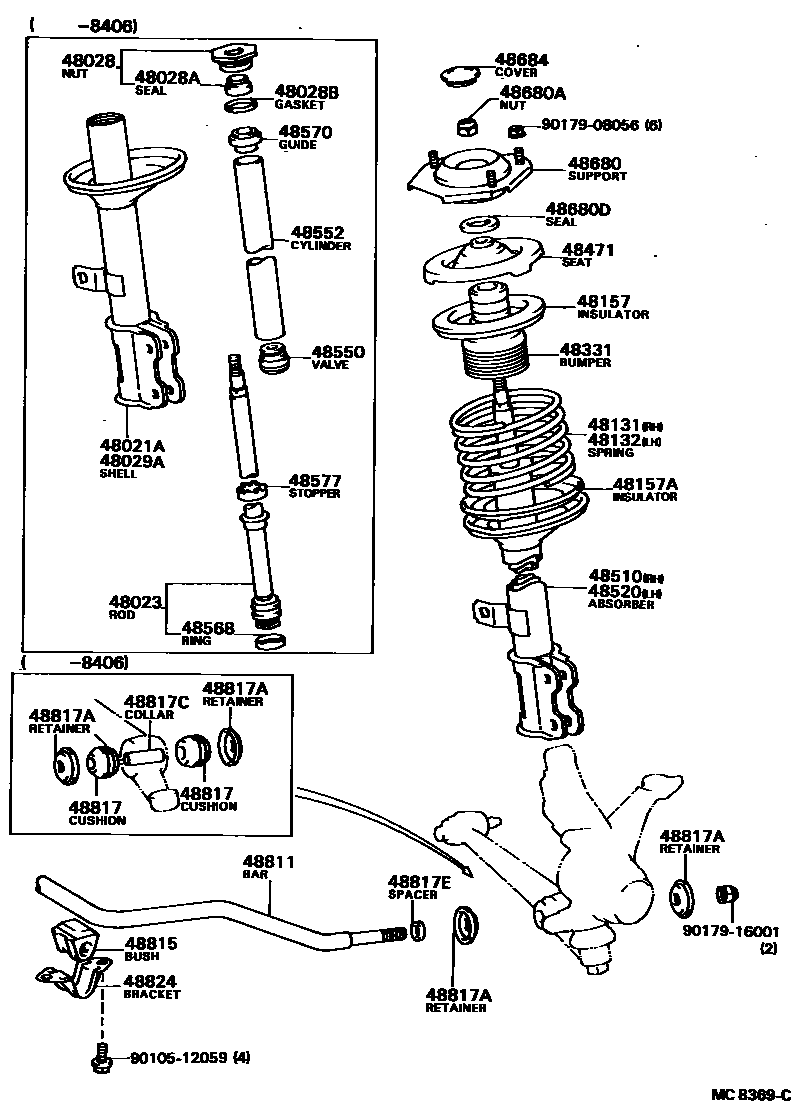

FRONT SPRING & SHOCK ABSORBER
48021ASHELL SUB-ASSY, FRONT SHOCK ABSORBER, RH
sub48021-32020
48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)
48028NUT SUB-ASSY, SHOCK ABSORBER RING
sub48028-14012
48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)
48028BGASKET(FOR SHOCK ABSORBER RING NUT)
48029ASHELL SUB-ASSY, FRONT SHOCK ABSORBER, LH
sub48029-32020
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157INSULATOR, FRONT COIL SPRING, UPPER
48331BUMPER, FRONT SPRING, NO.1
48471SEAT, FRONT SPRING, UPPER
48550VALVE ASSY, SHOCK ABSORBER BASE
48552CYLINDER, SHOCK ABSORBER(FOR FRONT)
48568RING, SHOCK ABSORBER PISTON
48570GUIDE ASSY, SHOCK ABSORBER ROD
48577STOPPER, SHOCK ABSORBER REBOUND
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
48684COVER, BEARING DUST
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817CCOLLAR(FOR STABILIZER BAR)
48817ESPACER(FOR STABILIZER BAR)
48824BRACKET, STABILIZER, FRONT
9010512059
main90105-12059
9017908056
main90179-08056
9017916001
main90179-16001
33 parts on this diagram · 1 diagram in section
