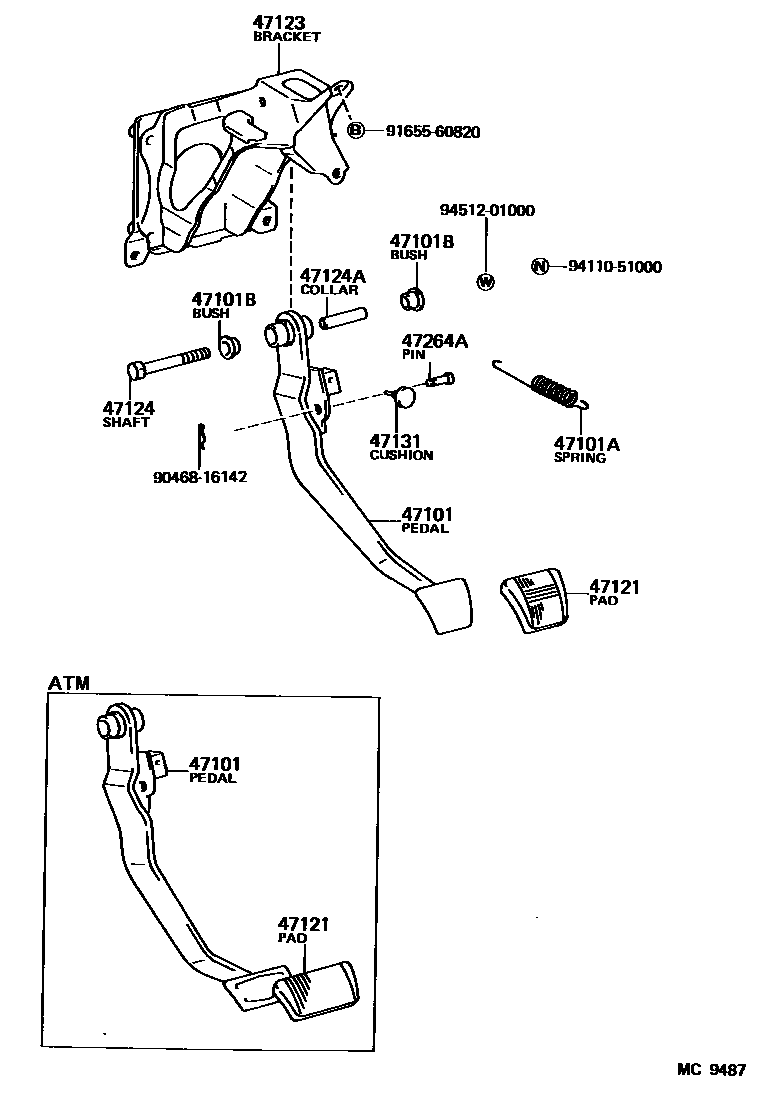

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-32030iCV10,SV11..5F198301-198406

sub47101-32070

main47101-32040iSV11..4FC198301-198406

sub47101-32080

main47101-32070iCV10,SV11..5F198406-198607

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14002iCV1#,SV11198301-198607

47101BBUSH(FOR BRAKE PEDAL)

main90386-13192iCV1#,SV11198301-198607

47121PAD, BRAKE PEDAL

main31321-14020iCV10,SV11..5F198301-198607

main47121-30050iCV1#,SV11..4FC198301-198607

47123BRACKET, BRAKE PEDAL

main55106-32020iCV10,SV11198301-198406

main55106-32021iCV1#,SV11198406-198607

47124SHAFT, BRAKE PEDAL

main90101-10039iCV1#,SV11198301-198607

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iCV1#,SV11198301-198607

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iCV1#,SV11198301-198607

47264APIN(FOR PUSH ROD)

main90249-08051iCV1#,SV11198301-198607

9046816142

main90468-16142

9165560820

main91655-60820

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
