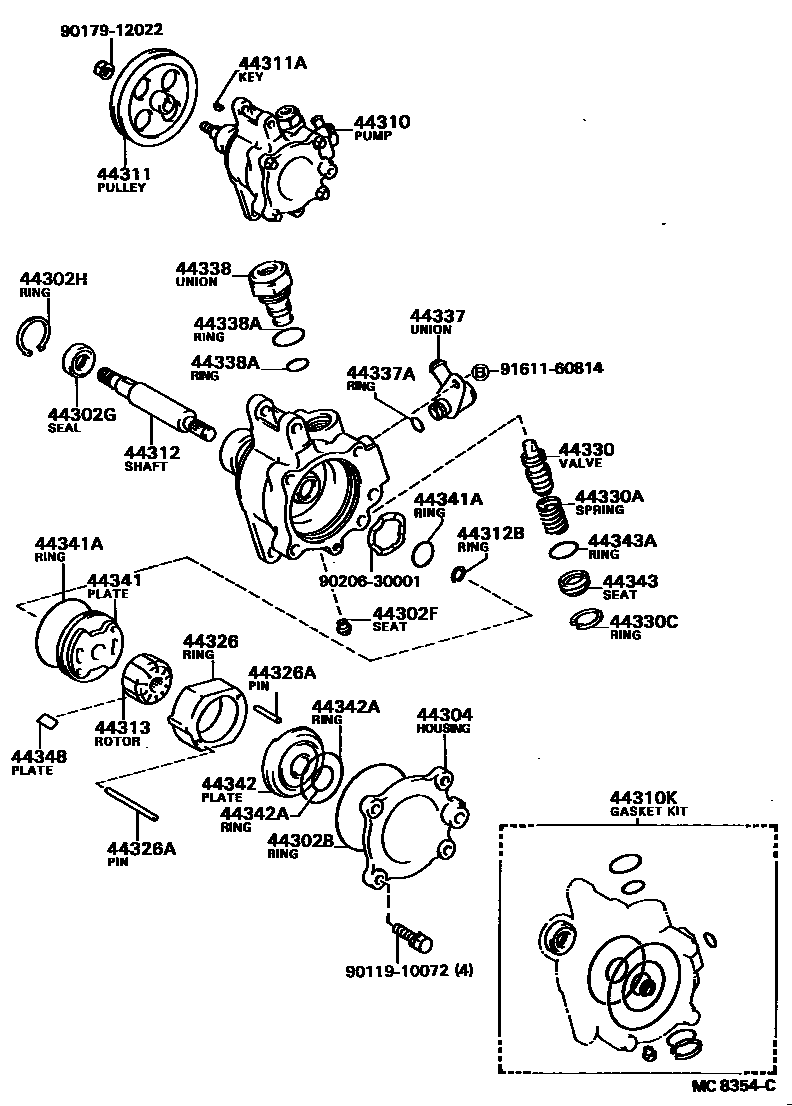

VANE PUMP & RESERVOIR (POWER STEERING)
44302BRING, O, NO.1(FOR VANE PUMP HOUSING)
44302FSEAT, UNION(FOR VANE PUMP HOUSING)
44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)
44304HOUSING SUB-ASSY, VANE PUMP, REAR
44310PUMP ASSY, VANE
44310KGASKET KIT, POWER STEERING PUMP
44311PULLEY, VANE PUMP
44311AKEY, VANE PUMP PULLEY
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44313ROTOR, VANE PUMP
44326RING, CAM(FOR VANE PUMP)
NO MARK
MARK 1,MARK 1
MARK 2,MARK 2
MARK 3,MARK 3
MARK 4,MARK 4
NO MARK
MARK 1,MARK 1
MARK 2,MARK 2
MARK 3,MARK 3
MARK 4,MARK 4
44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)
L=28,OD=4.0,L=28
L=43,OD=4.0,L=43
L=25,OD=5.0,L=25
L=43.5,OD=5.0,L=43.5
44330VALVE ASSY, FLOW CONTROL
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44330CRING, SNAP(FOR FLOW CONTROL VALVE)
44337UNION, POWER STEERING SUCTION PORT
44337ARING, O(FOR POWER STEERING SUCTION PORT)
44338UNION, PRESSURE PORT
44338ARING, O(FOR PRESSURE PORT UNION)
OD=25.5,ID=22.5,OD=25.5
OD=17.0,ID=13.0,OD=17.6
44341PLATE, VANE PUMP SIDE, FRONT
44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)
INNER
OUTER
OUTER
44342PLATE, VANE PUMP SIDE, REAR
44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)
INNER
OUTER
44343SEAT, FLOW CONTROL SPRING
44343ARING, O(FOR FLOW CONTROL SPRING SEAT)
44348PLATE, VANE PUMP
L=14.997,L=14.996-14.998,ROTOR NO MARK
L=14.995,L=14.994-14.996,ROTOR MARK 1
L=14.993,L=14.992-14.994,ROTOR MARK 2
L=14.991,L=14.990-14.992,ROTOR MARK 3
L=14.989,L=14.988-14.990,ROTOR MARK 4
9011910072
9017912022
9020630001
9161160814
32 parts on this diagram · 3 diagrams in section
