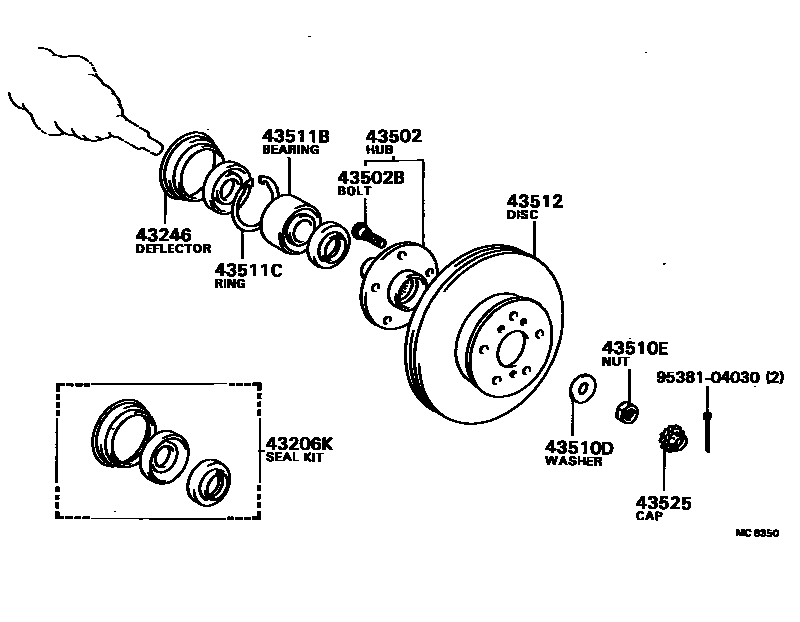

FRONT AXLE HUB

43206KSEAL KIT, FRONT AXLE OIL

main04422-32010iCV1#,SV11198301-198607

43246DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1

main43246-32011iCV1#,SV11198301-198607

43502HUB SUB-ASSY, FRONT AXLE

main43502-20040iCV11,SV11198603-198607

sub43502-32040

main43502-32010iCV1#,SV11198301-198603

sub43502-20040

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iCV1#,SV11198301-198607

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90201-20006iCV10,SV11198301-198405

sub90201-20012

main90201-20012iCV1#,SV11198405-198607

43510ENUT (FOR STEERING KNUCKLE)

main90170-19001iCV1#,SV11198301-198607

43511BBEARING (FOR FRONT AXLE HUB)

main90369-38003iCV1#,SV11198301-198607

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-79002iCV1#,SV11198301-198607

OD=79

43512DISC, FRONT

main43512-32020iCV10,SV11198301-198405

sub43512-32040

main43512-32040iCV1#,SV11198405-198512

sub43512-32110

main43512-32110iCV11,SV11198512-198607

sub43512-32140

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-16010iCV1#,SV11198301-198607

9538104030

main95381-04030

11 parts on this diagram · 1 diagram in section
