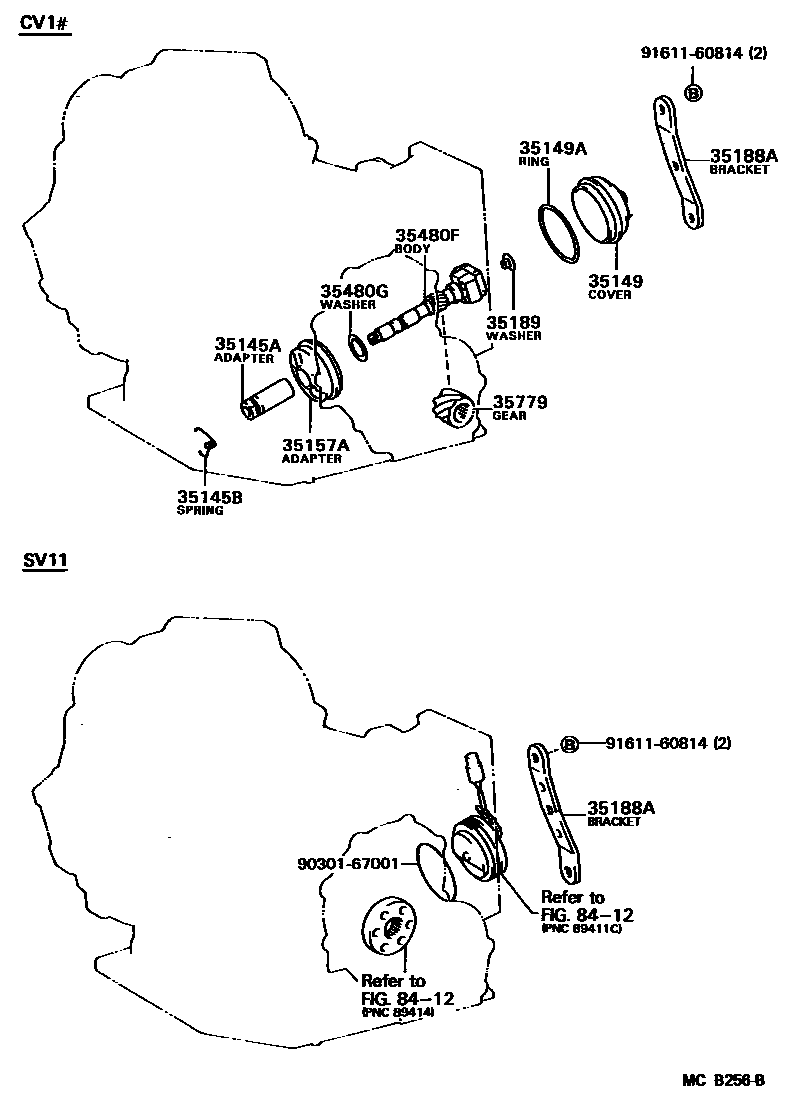

REAR OIL PUMP & GOVERNOR (ATM)

35145AADAPTER, GOVERNOR PRESSURE

main35145-32010iCV10198410-198411

sub35145-32011

main35145-32011iCV1#198411-198607

35145BSPRING, TORSION(FOR GOVERNOR PRESSURE ADAPTER)

main90508-18034iCV1#198410-198607

35149COVER, GOVERNOR

main35149-32010iCV1#198410-198607

35149ARING, O (FOR GOVERNOR COVER)

main90301-67001iCV1#198410-198607

35157AADAPTER, GOVERNOR BODY

main35157-32011iCV1#198410-198607

35188ABRACKET, GOVERNOR COVER

main35188-32011iCV1#,SV11..4FC198301-198607

35189WASHER, GOVERNOR THRUST, NO.1

main35189-32010iCV1#198410-198607

sub35189-32011

35480FBODY ASSY, GOVERNOR

main35480-32020iCV10198410-198412

sub35480-32021

main35480-32021iCV1#198412-198607

sub35480-32022

35480GWASHER, PLATE (FOR GOVERNOR BODY)

main90201-25003iCV1#198410-198607

35779GEAR, GOVERNOR DRIVE

main35779-32010iCV1#198410-198607

8412

9030167001

main90301-67001

9161160814

main91611-60814

13 parts on this diagram · 1 diagram in section
