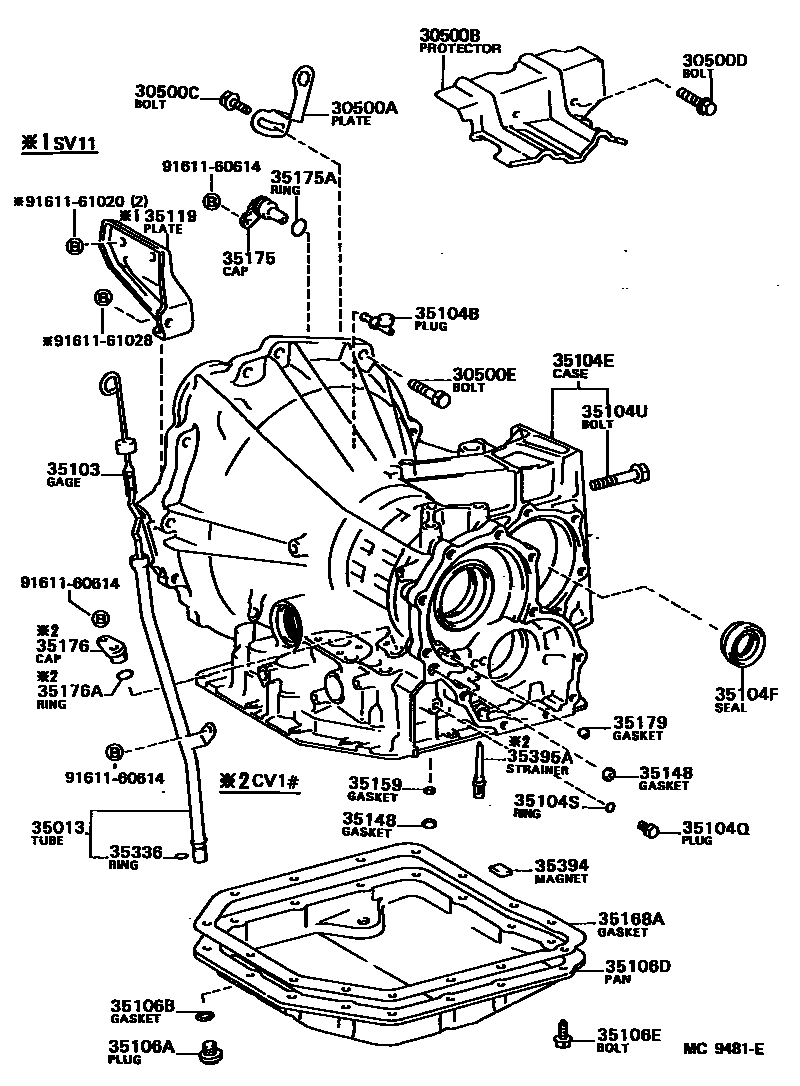

TRANSMISSION CASE & OIL PAN (ATM)
30500APLATE, BOLT LOCK(ATM)
30500BPROTECTOR, TRANSAXLE CASE
30500CBOLT(FOR PLATE BOLT LOCK)
30500DBOLT(FOR TRANSAXLE CASE PROTECTOR)
30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)
*10-1.25PX43-26,*10-1.25PX43-26
*12-1.25PX45-30,*12-1.25PX45-30
*10-1.25PX16-16
35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35104BPLUG, BREATHER, NO.1 (ATM)
35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE
35104FSEAL, OIL (FOR TRANSAXLE CASE)
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
35104UBOLT (FOR TRANSAXLE CASE)
35106APLUG SUB-ASSY, DRAIN (ATM)
35106BGASKET, DRAIN PLUG (ATM)
35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106EBOLT (FOR TRANSAXLE OIL PAN)
35119PLATE, STIFENER, LH (ATM)
35148GASKET, GOVERNOR APPLY, NO.1
35159GASKET, BRAKE DRUM
35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN
35175CAP, TRANSAXLE CASE, NO.2
35175ARING, O (FOR TRANSAXLE CASE CAP)
35176CAP, WIRE HARNESS
35176ARING, O (FOR WIRE HARNESS CAP)
35179GASKET, OVERDRIVE BRAKE
35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
35395ASTRAINER, GOVERNOR OIL
9161160614
9161161020
9161161028
32 parts on this diagram · 1 diagram in section
