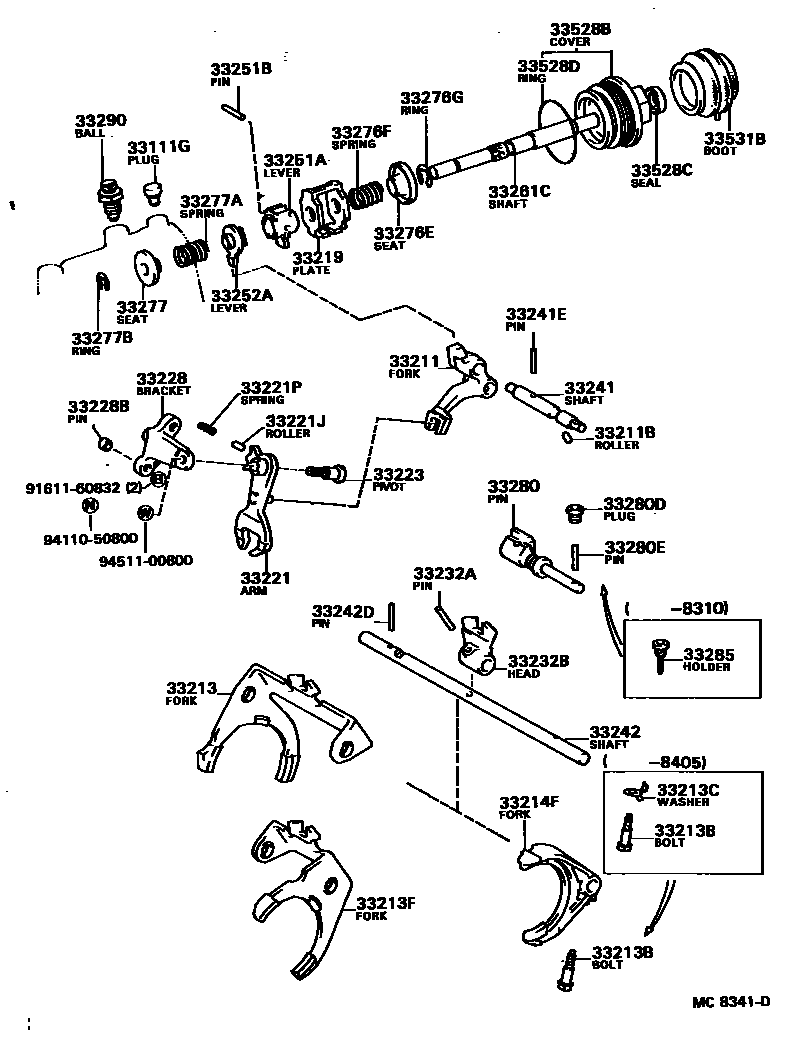

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33211FORK, REVERSE SHIFT
33211BROLLER(FOR REVERSE SHIFT FORK)
33213FORK, 1ST & 2ND SHIFT
sub33210-32H00
33213BBOLT(FOR SHIFT FORK SET)
33213CWASHER, LOCK(FOR SHIFT FORK SET)
33213FFORK, 3RD & 4TH SHIFT
sub33220-32020
33214FFORK, 5TH SHIFT
sub33214-32020
33219PLATE, SHIFT FORK LOCK
33221ARM, REVERSE SHIFT
33221JROLLER(FOR REVERSE SHIFT ARM)
33221PSPRING, COMPRESSION(FOR REVERSE SHIFT ARM ROLLER)
33223PIVOT, SHIFT ARM
33228BRACKET, REVERSE SHIFT ARM
33228BPIN, RING(FOR REVERSE SHIFT ARM BRACKET)
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33241SHAFT, REVERSE SHIFT FORK
sub33243-32011
33241EPIN, SLOTTED SPRING(FOR REVERSE SHIFT FORK SHAFT)
33242SHAFT, GEAR SHIFT FORK, NO.1
sub33242-32011
33242DPIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT)
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=47.0
33252ALEVER, SHIFT, INNER NO.2
33261CSHAFT, SHIFT & SELECT LEVER
33276ESEAT, SELECT SPRING, NO.1
33276GRING, E (FOR SELECT SPRING NO.1 SEAT)
33277SEAT, SELECT SPRING, NO.2
33277ASPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)
33277BRING, E (FOR SELECT SPRING NO.2 SEAT)
33280DPLUG, W/HEAD STRAIGHT SCREW (FOR REVERSE RESTRICT PIN)
33280EPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33285HOLDER, REVERSE RESTRICT PIN
33290BALL ASSY, LOCK, NO.1
sub33290-32011
33528CSEAL, OIL (FOR CONTROL SHAFT COVER)
sub90311-18006
33528DRING, O (FOR CONTROL SHAFT COVER)
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
9161160832
main91611-60832
9411050800
main94110-50800
9451100800
main94511-00800
43 parts on this diagram · 2 diagrams in section
