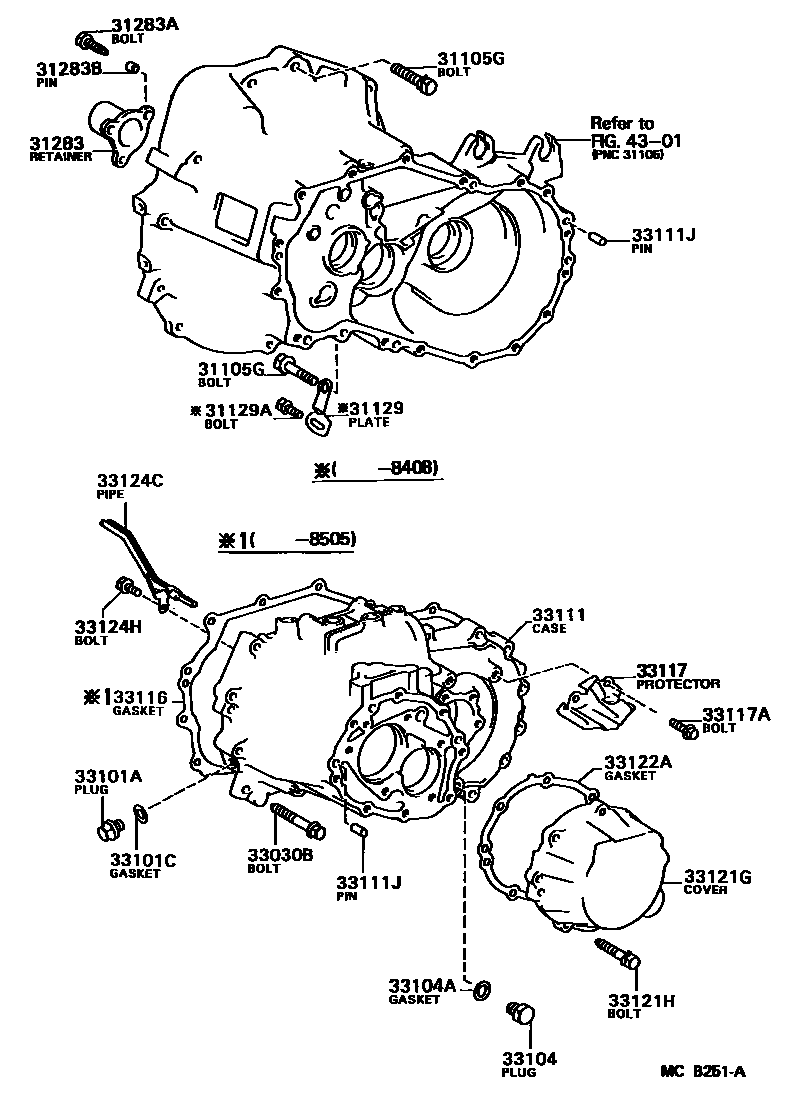

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iSV11..5F198408-198607

*8-1.25PX18-15,*8-1.25PX18-15

sub91641-H0820

main90105-10055iCV10,SV11..5F198301-198408

*10-1.25PX43-26,*10-1.25PX43-26

sub90105-10077

main90105-10077iSV11..5F198408-198607

*10-1.25PX43-26,*10-1.25PX43-26

main90119-12168iCV10,SV11..5F198301-198607

*12-1.25PX55-30,*12-1.25PX55-30

31129PLATE, BOLT LOCK(MTM)

main31129-32010iCV10,SV11..5F198301-198408

31129ABOLT(FOR BOLT LOCK PLATE)

main90105-08040iCV10,SV11..5F198301-198408

sub91641-H0820

31283RETAINER, CLUTCH RELEASE BEARING HUB

main31283-32010iCV10,SV11..5F198301-198607

31283ABOLT(FOR CLUTCH RELEASE BEARING HUB RETAINER)

main90105-06023iCV10,SV11..5F198301-198607

sub91511-B0620

31283BPIN, RING(FOR CLUTCH RELEASE BEARING HUB RETAINER)

main90253-08002iCV10,SV11..5F198301-198607

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042iCV10,SV11..5F198301-198607

*8-1.25PX45-27.5

sub90105-08430

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18002iCV10,SV11..5F198301-198607

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18007iCV10,SV11..5F198301-198408

sub90430-18008

main90430-18008iSV11..5F198408-198607

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iSV11..5F198501-198607

main90341-18057iCV10,SV11..5F198301-198501

33104AGASKET, DRAIN PLUG(MTM)

main90430-18007iCV10,SV11..5F198301-198408

sub90430-18008

main90430-18008iSV11..5F198408-198607

33111CASE, MANUAL TRANSMISSION

main33111-32010iCV10,SV11..5F198301-198309

sub33111-32011

main33111-32011iCV10,SV11..5F198309-198404

sub33111-32H00

main33111-32012iCV10,SV11..5F198404-198505

sub33111-32013

sub90341-16001

main33111-32013iSV11..5F198505-198604

sub33111-32014

sub33151-32011

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iCV10,SV11..5F198301-198607

L=23,OD=8

33116GASKET, MANUAL TRANSMISSION CASE

main33116-32010iCV10,SV11..5F198301-198405

sub33116-32011

main33116-32011iCV10,SV11..5F198405-198505

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-32010iCV10,SV11..5F198301-198408

sub33117-32011

main33117-32011iSV11..5F198408-198607

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040iCV10,SV11..5F198301-198607

sub91641-H0820

33121GCOVER, MANUAL TRANSMISSION CASE

main33102-32010iCV10,SV11..5F198301-198404

sub33102-32011

main33102-32011iCV10,SV11..5F198404-198607

sub33102-32012

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08057iCV10,SV11..5F198301-198404

main90105-08089iCV10,SV11..5F198404-198607

sub90105-08273

33122AGASKET, MANUAL TRANSMISSION CASE COVER

main33122-32010iCV10,SV11..5F198301-198404

sub33122-32011

main33122-32011iCV10,SV11..5F198404-198504

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-32010iCV10,SV11..5F198301-198510

sub33124-32011

main33124-32011iSV11..5F198510-198607

33124HBOLT(FOR OIL RECEIVER PIPE)

main91651-60618iSV11..5F198408-198607

4301

22 parts on this diagram · 1 diagram in section
