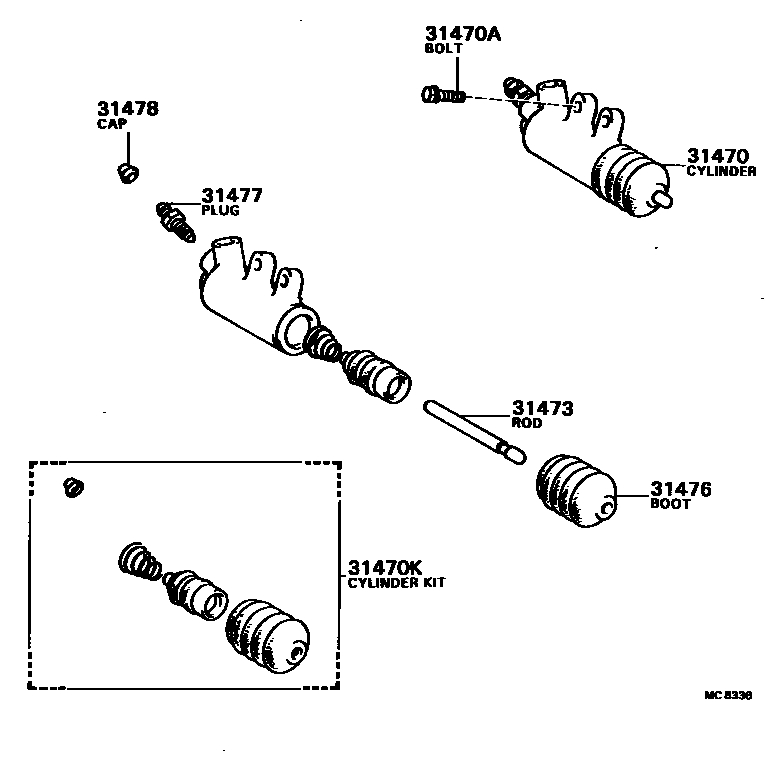

CLUTCH RELEASE CYLINDER

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-32010iCV10,SV11..5F¥7,200198301-198404

sub31470-32020¥7,200

main31470-32020iCV10,SV11..5F¥7,200198404-198607

sub31470-32021¥7,500

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825iCV10,SV11..5F¥140198301-198607

*8-1.25PX25-25

sub91611-B0825¥160

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-22020iCV10,SV11..5F¥1,040198404-198607

sub04313-12030¥800

main04313-32010iCV10,SV11..5F¥1,030198301-198404

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iCV10,SV11..5F¥450198301-198607

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iCV10,SV11..5F¥230198301-198607

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iCV10,SV11..5F¥180198301-198607

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iCV10,SV11..5F¥160198301-198607

7 parts on this diagram · 1 diagram in section
