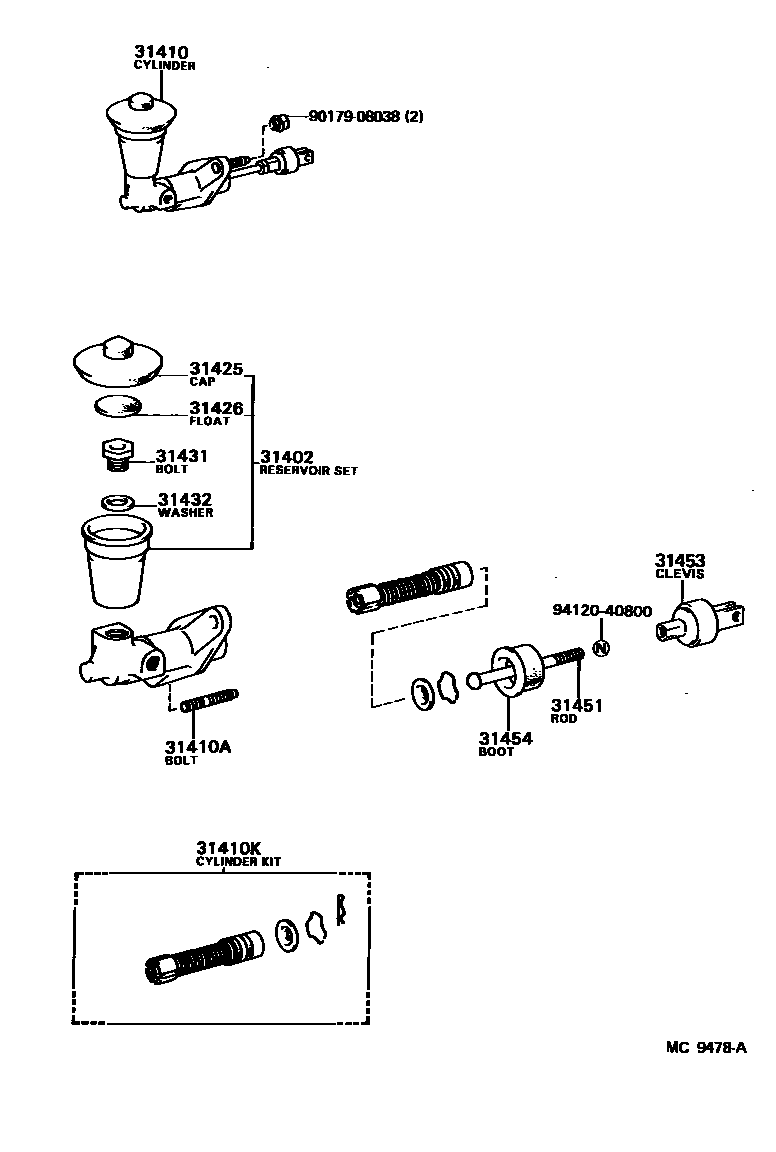

CLUTCH MASTER CYLINDER

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30030iCV10,SV11..5F198301-198607

31410CYLINDER ASSY, CLUTCH MASTER

main31410-32030iCV10,SV11..5F198301-198607

sub31410-32031

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iCV10,SV11..5F198301-198607

31410KCYLINDER KIT, CLUTCH MASTER

main04311-30080iCV10,SV11..5F198301-198607

sub04311-14020

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iCV10,SV11..5F198301-198607

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iCV10,SV11..5F198301-198607

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iCV10,SV11..5F198301-198607

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iCV10,SV11..5F198301-198607

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-14010iCV10,SV11..5F198301-198607

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28011iSV11..5F198506-198607

sub31404-28012

main31404-30041iCV10,SV11..5F198301-198506

31454BOOT, CLUTCH MASTER CYLINDER

main31454-24010iCV10,SV11..5F198301-198607

9017908038

main90179-08038

9412040800

main94120-40800

13 parts on this diagram · 1 diagram in section
