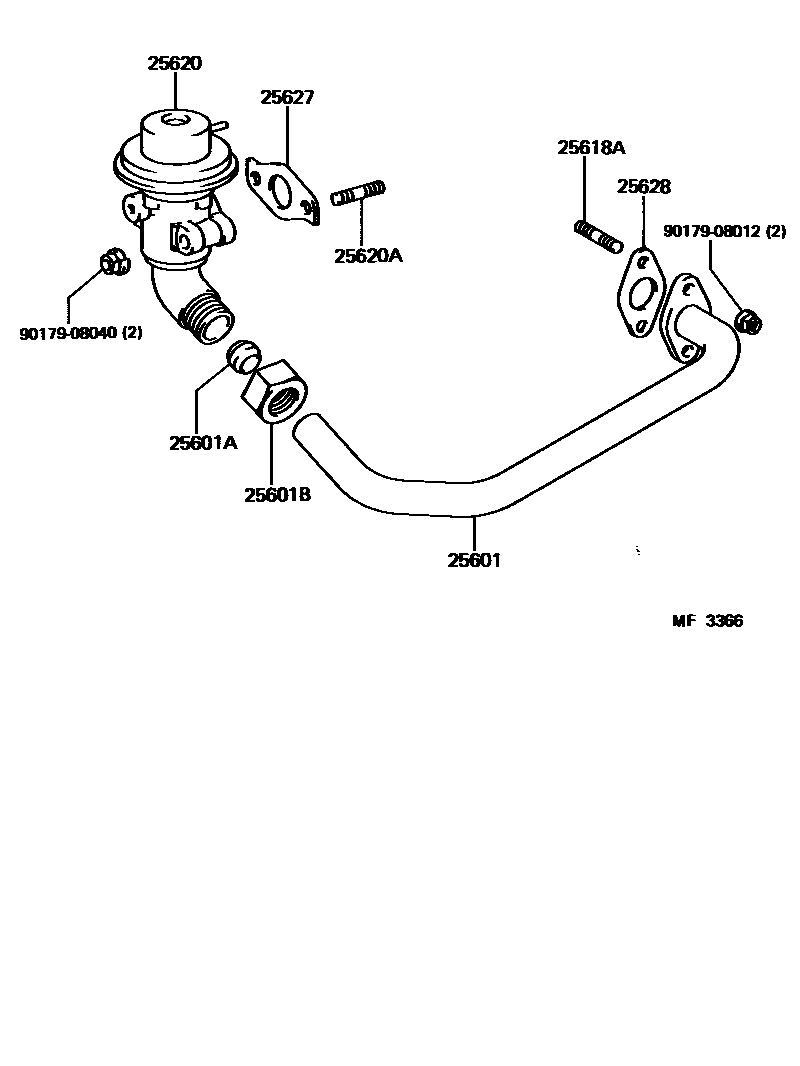

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

25601PIPE SUB-ASSY, EGR, NO.1

main25601-64021i1CTLC,2CTLC..CV1#198410-198607

main25611-74010i2SELC..SV11198301-198607

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-12042i2SELC..SV11198301-198607

main90410-22001i1CTLC,2CTLC..CV1#198410-198607

25601BNUT, UNION, EGR PIPE, NO.1

main90402-20073i2SELC..SV11198301-198607

main90402-30002i1CTLC,2CTLC..CV1#198410-198607

25618ABOLT, STUD(FOR EGR INLET)

main92122-60822i1CTLC,2CTLC..CV1#198410-198607

25620VALVE ASSY, EGR

main25620-64020i1CTLC..CV10198410-198508

main25620-64021i2CTLC..CV11198508-198607

main25620-74010i2SELC..SV11198301-198508

main25620-74040i2SELC..SV11..CND198308-198607

25620ABOLT, STUD(FOR EGR VALVE)

main90116-08198i1CTLC,2CTLC..CV1#198410-198607

25627GASKET, EGR VALVE

main25627-64010i1CTLC,2CTLC..CV1#198410-198607

sub25627-64030

main25627-74010i2SELC..SV11198301-198607

sub25627-74011

25628GASKET, EGR INLET

main25628-64020i1CTLC,2CTLC..CV1#198410-198607

sub25628-64030

9017908012

main90179-08012

9017908040

main90179-08040

10 parts on this diagram · 2 diagrams in section
