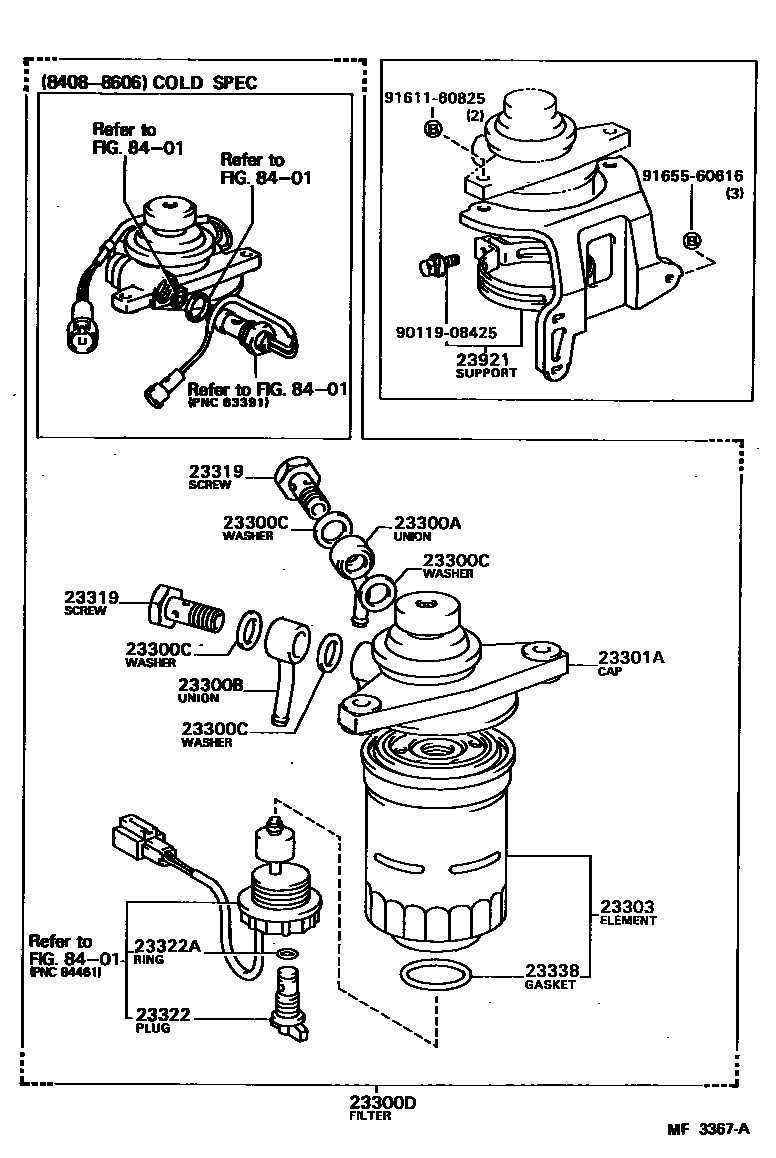

FUEL FILTER

0001 1 0002 1

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main23323-64010i1CTLC,2CTLC..CV1#198308-198607

23300BUNION, NIPPLE(FOR FUEL FILTER OUTLET)

main23323-64010i1CTLC,2CTLC..CV1#198308-198606

23300CGASKET, NIPPLE UNION(FOR FUEL)

main22447-47030i1CTLC,2CTLC..CV1#198308-198606

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-64090i1CTLC,2CTLC..CV1#198308-198606

EXCL/COLD SPEC

sub23300-64091

23301ACAP ASSY, FUEL FILTER

main23301-64020i1CTLC,2CTLC..CV1#198308-198606

main23301-64030i1CTLC,2CTLC..CV1#198410-198606

COLD SPEC

main23301-64090i2CTLC..CV11198606-198607

main23301-64100i2CTLC..CV11198606-198607

COLD SPEC

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i1CTLC,2CTLC..CV1#198308-198607

23319SCREW, FUEL PIPE FOLLOW

main90099-18011i1CTLC,2CTLC..CV1#198308-198606

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64020i1CTLC,2CTLC..CV1#198308-198607

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1CTLC,2CTLC..CV1#198308-198607

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1CTLC,2CTLC..CV1#198308-198607

23921SUPPORT, FUEL FILTER

main23921-64090i1CTLC,2CTLC..CV1#198308-198607

8401

9011908425

main90119-08425

9161160825

main91611-60825

9165560616

main91655-60616

15 parts on this diagram · 2 diagrams in section
