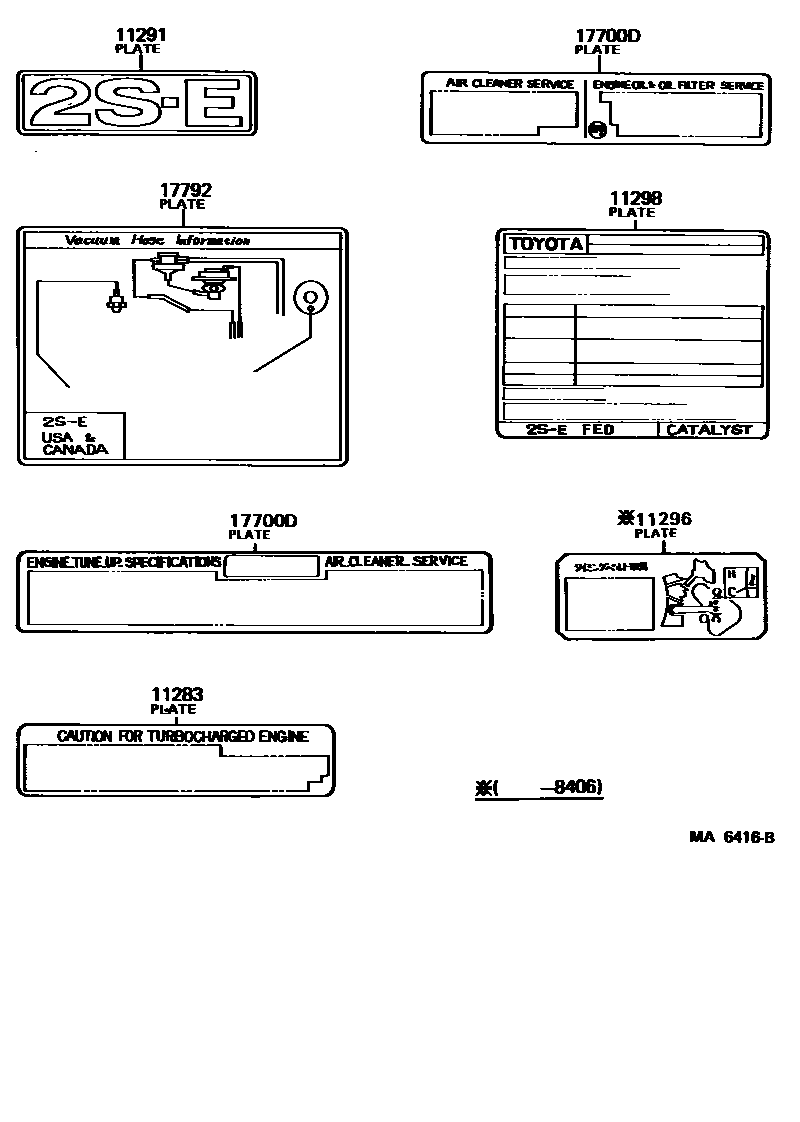

CAUTION PLATE & NAME PLATE (ENGINE)

11283PLATE, TURBOCHARGER CAUTION

main11294-64020i1CTLC,2CTLC..CV1#198308-198607

sub11294-64050

11291PLATE, ENGINE NAME

main11291-64020i1CTLC..CV10198308-198508

1C-T

main11291-64050i2CTLC..CV11198508-198607

2C-T

main11291-74010i2SELC..SV11198301-198607

2S-E

11296PLATE, TIMING BELT CAUTION

main11296-54010i1CTLC..CV10198308-198406

11298PLATE, EMISSION CONTROL INFORMATION

main11298-64040i1CTLC..CV10198308-198408

main11298-64060i1CTLC..CV10198410-198508

main11298-64061i2CTLC..CV11198508-198607

main11298-64070i1CTLC..CV10198410-198508

CALIFORNIA SPEC

main11298-74010i2SELC..SV11198301-198308

main11298-74011i2SELC..SV11..USA198308-198408

main11298-74012i2SELC..SV11..USA198408-198504

main11298-74013i2SELC..SV11..USA198504-198508

main11298-74060i2SELC..SV11..USA198301-198308

CALIFORNIA SPEC

main11298-74061i2SELC..SV11..USA198308-198408

CALIFORNIA SPEC

main11298-74062i2SELC..SV11..USA198408-198504

CALIFORNIA SPEC

main11298-74063i2SELC..SV11..USA198504-198508

CALIFORNIA SPEC

main11298-74070i2SELC..SV11..CND198308-198408

main11298-74071i2SELC..SV11..CND198408-198504

main11298-74072i2SELC..SV11..CND198508-198607

main11298-74080i2SELC..SV11..USA198508-198607

main11298-74090i2SELC..SV11..USA198508-198607

CALIFORNIA SPEC

main11298-74170i2SELC..SV11..CND198504-198508

17700DPLATE, ENGINE CAUTION

main11293-28040i2SELC..SV11198301-198408

main11293-64040i1CTLC..CV10198308-198408

main11293-64041i1CTLC,2CTLC..CV1#198410-198607

main11293-74060i2SELC..SV11198408-198607

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-64020i1CTLC..CV10198308-198401

sub17792-64021

main17792-64021i1CTLC..CV10198401-198408

main17792-64030i1CTLC..CV10198410-198508

main17792-64031i2CTLC..CV11198508-198607

main17792-74010i2SELC..SV11198301-198308

main17792-74011i2SELC..SV11..USA198308-198508

main17792-74040i2SELC..SV11..CND198308-198607

main17792-74050i2SELC..SV11..USA198508-198607

6 parts on this diagram · 1 diagram in section
