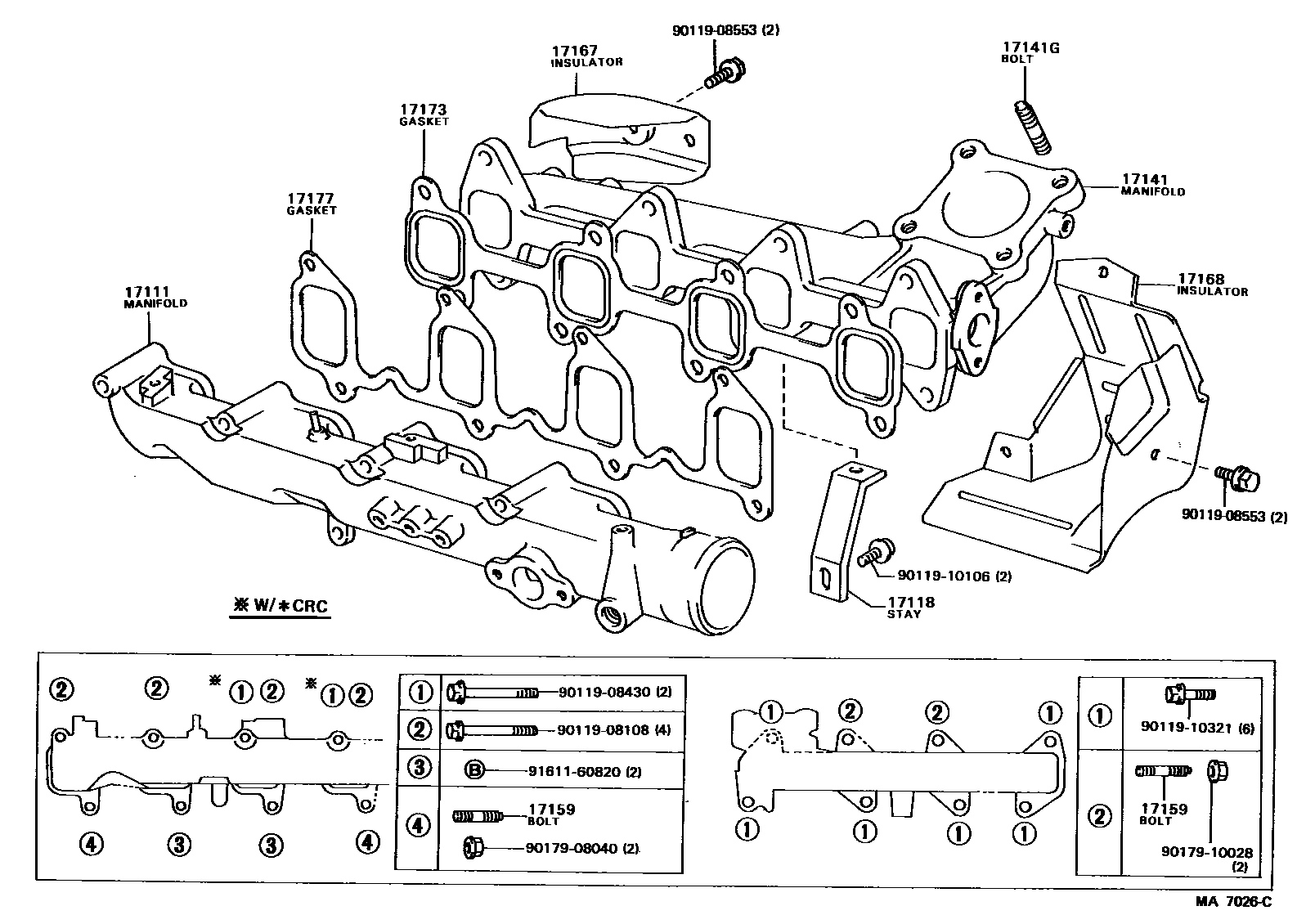

MANIFOLD

0001 1 0002 1 0003 1 0004 1

17111MANIFOLD, INTAKE

main17101-64030i1CTLC..CV10198308-198408

main17111-64080i1CTLC,2CTLC..CV1#198410-198607

main17111-74011i2SELC..SV11198301-198607

17118STAY, MANIFOLD

main17118-63030i2SELC..SV11198508-198607

main17118-64020i1CTLC,2CTLC..CV1#198308-198607

main17118-74010i2SELC..SV11198301-198508

17141MANIFOLD, EXHAUST

main17141-64030i1CTLC..CV10198308-198408

main17141-64050i1CTLC..CV10198410-198508

main17141-64051i2CTLC..CV11198508-198607

main17141-74010i2SELC..SV11198301-198503

sub17141-74011

main17141-74011i2SELC..SV11198503-198607

17141GBOLT, STUD(FOR TURBOCHARGER)

main90116-10054i1CTLC,2CTLC..CV1#198308-198607

sub90116-10094

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-10095i1CTLC,2CTLC..CV1#198308-198607

EXHAUST MANIFOLD SIDE

main90116-10123i2SELC..SV11198301-198607

main92122-60820i1CTLC,2CTLC..CV1#198308-198607

INTAKE MANIFOLD SIDE

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-64031i1CTLC,2CTLC..CV1#198308-198607

main17167-74010i2SELC..SV11198301-198607

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-64020i1CTLC..CV10198308-198508

main17168-64021i2CTLC..CV11198508-198607

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-64030i1CTLC,2CTLC..CV1#198308-198607

sub17173-64050

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-64010i1CTLC,2CTLC..CV1#198308-198607

sub17177-64020

9011908108

main90119-08108

9011908430

main90119-08430

9011908553

main90119-08553

9011910106

main90119-10106

9011910321

main90119-10321

9017908040

main90179-08040

9017910028

main90179-10028

9161160820

main91611-60820

17 parts on this diagram · 4 diagrams in section
