STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09102-12040iCV1#,SV11198301-198607

09110JACK ASSY

main09118-20011iCV1#,SV11198301-198607

sub09111-20041

sub09115-32010

09115ROD SUB-ASSY, JACK HANDLE

main09115-16020iCV10,SV11198301-198312

main09115-32010iCV1#,SV11198312-198607

09116LEVER, JACK HANDLE

main09116-16010iCV1#,SV11198301-198607

09120BAG, TOOL

main09120-12030iCV1#,SV11198301-198607

sub09120-32010

09135ABIT, SCREW DRIVER

main09135-00011iSV11..LE..4D198301-198304

W/SUN ROOF

sub09135-00012

main09135-00012iSV11..LE..4D198304-198607

W/SUN ROOF

09183WRENCH, WHEEL CAP

main09183-00010iCV1#,SV11198301-198607

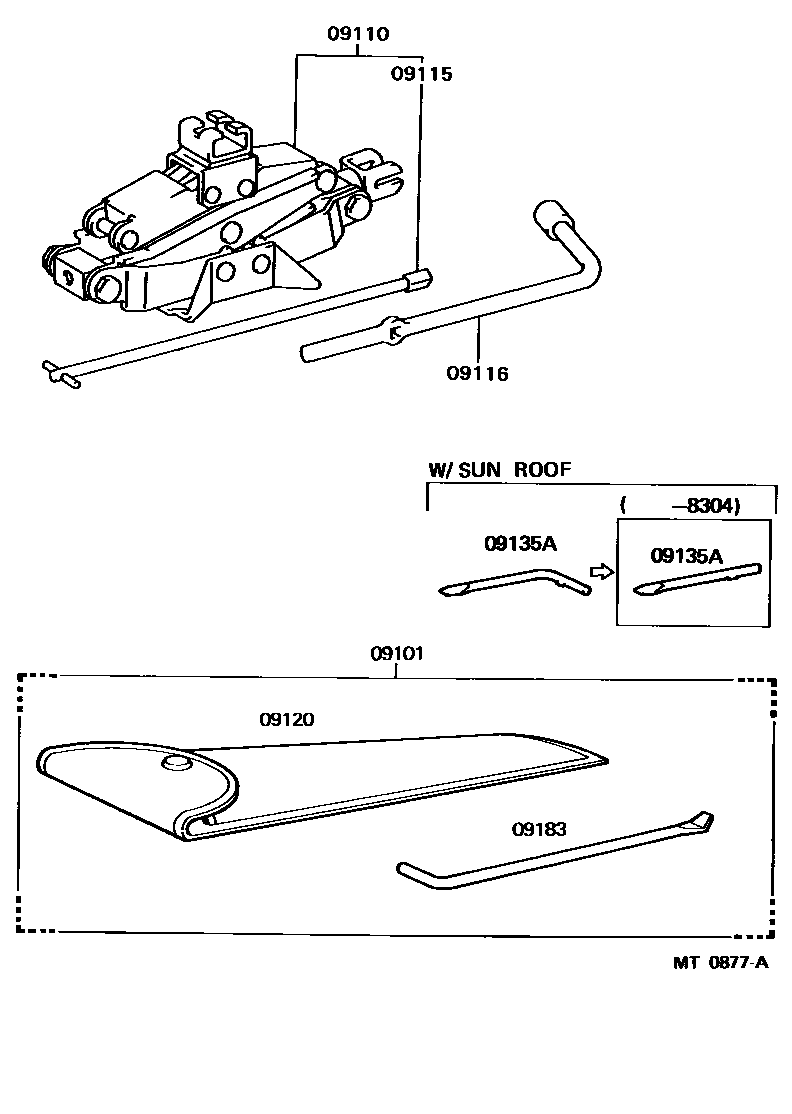

7 parts on this diagram · 1 diagram in section
