HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

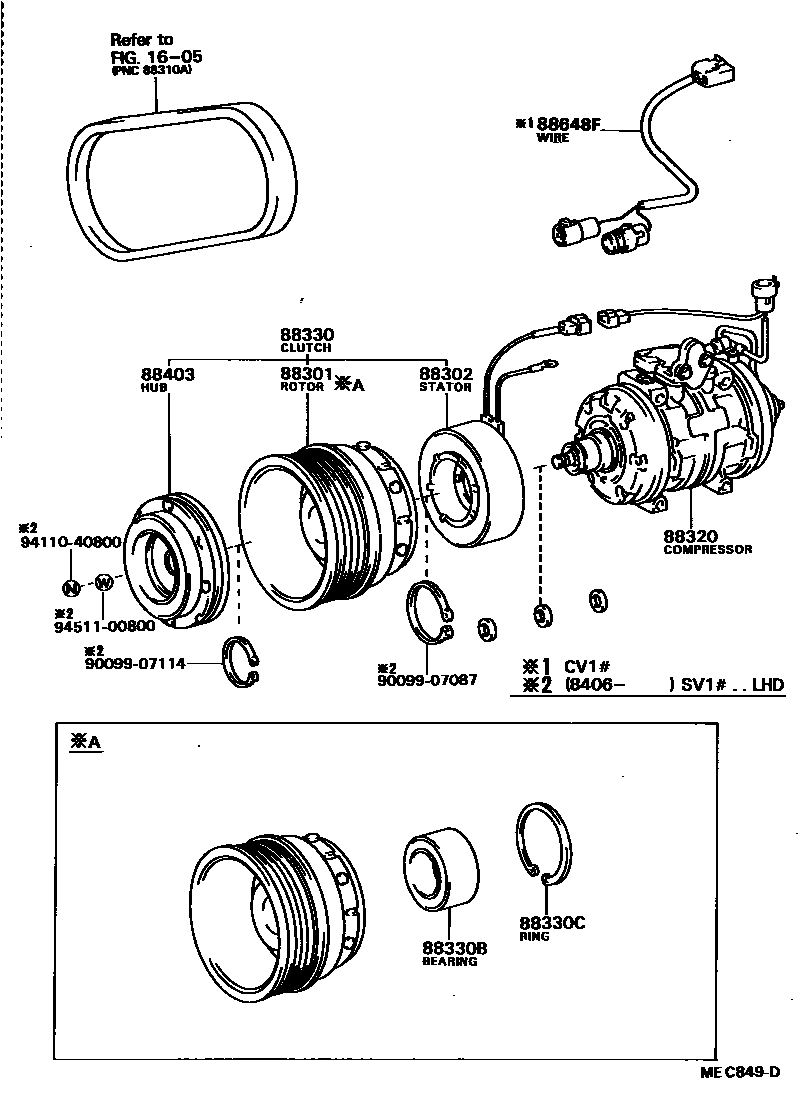

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-32010iCV1#,SV1#198210-198610

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-32010iSV11..ARL;CV10,SV1#..EUG198210-198610

88320COMPRESSOR ASSY, COOLER

main88320-32010iCV10;CV11..RHD198308-198610

W/POWER STEERING

main88320-32010iSV1#..RHD198210-198412

main88320-32020iSV10..LHD198210-198301

main88320-32021iSV1#..LHD..EUG198301-198406

main88320-32030iCV10;CV11..RHD198308-198610

main88320-32040iCV11..LHD198406-198610

main88320-32050iSV1#..RHD198412-198610

main88320-32060iSV1#..LHD198412-198610

88330CLUTCH ASSY, MAGNET

main88410-32010iSV11..ARL;CV10,SV1#..EUG198210-198610

88330BBEARING, MAGNET CLUTCH

main90099-10133iSV11..ARL;CV10,SV1#..EUG198210-198610

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07118iSV11..ARL;CV10,SV1#..EUG198210-198610

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14030iCV1#,SV1#198210-198610

sub88403-12030

88648FWIRE, MAGNET CLUTCH

main88648-32040iCV10;CV11..RHD198308-198610

W/POWER STEERING

main88648-32040iCV11..LHD198508-198610

main88648-32050iCV10;CV11..RHD198308-198610

9009907087

main90099-07087

9009907114

main90099-07114

9411040800

main94110-40800

9451100800

main94511-00800

13 parts on this diagram · 3 diagrams in section
