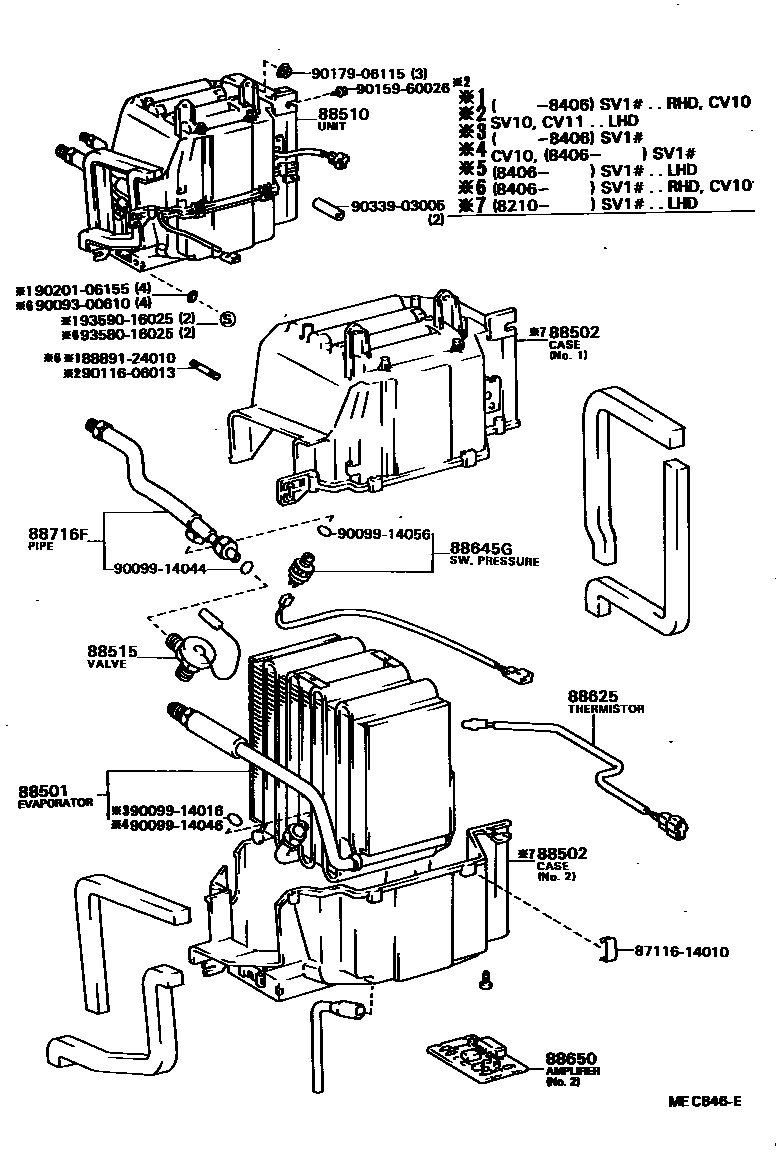

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-32010iCV10,SV1#..RHD198210-198406

main88501-32020iCV10,SV1#..LHD..EUG198210-198601

sub88501-32021

main88501-32021iCV11,SV1#..LHD198601-198610

main88501-32030iCV1#,SV1#..RHD198406-198601

sub88501-32031

main88501-32031iCV11,SV1#..RHD198601-198610

88502CASE SUB-ASSY, COOLING UNIT

main88502-32010iSV1#..LHD..EUG198210-198610

NO.1

main88502-32020iSV1#..LHD..EUG198210-198610

NO.2

88510UNIT ASSY, COOLER

main88510-32020iSV1#..RHD198210-198406

main88510-32050iSV1#..LHD198406-198610

main88510-32060iCV10..RHD198308-198406

W/POWER STEERING

main88510-32070iCV10..LHD198308-198508

W/POWER STEERING

main88510-32080iSV1#..LHD..EUG198210-198406

main88510-32110iCV10..RHD198308-198406

main88510-32120iCV10..LHD198308-198508

main88510-32140iSV1#..RHD198406-198610

main88510-32150iCV1#..RHD198406-198610

main88510-32170iCV11..LHD198508-198610

main88510-32180iCV11..LHD198508-198610

W/POWER STEERING

88515VALVE, COOLER EXPANSION

main88515-20050iSV11..ARL;CV10,SV1#..EUG198210-198610

sub88515-20051

88625THERMISTOR, COOLER, NO.1

main88625-90A00iCV10,SV1#..LHD..EUG198210-198610

sub88625-12070

88645GSWITCH, PRESSURE

main88645-22020iSV1#..RHD198210-198406

sub88645-30250

main88645-30250iSV1#..LHD..EUG198210-198610

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-32010iSV10..RHD198210-198406

NO.2

main88650-32020iSV11..RHD198210-198610

NO.2

sub88650-32010

main88650-32030iCV10198308-198610

NO.2,W/POWER STEERING

main88650-32030iCV1#..LHD198406-198610

NO.2

main88650-32050iCV10..RHD..4FC198308-198406

NO.1

main88650-32060iCV10..LHD..4FC198308-198508

NO.1

main88650-32070iCV10198308-198610

NO.2

main88650-32090iSV1#..RHD198406-198610

NO.2

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-32010iCV10,SV1#..RHD198210-198610

main88716-32140iCV10..LHD198308-198508

8711614010SPRING, HEATER CASE FASTENING

main87116-14010

8889124010PACKING (FOR COOLER)

main88891-24010

9009300610

main90093-00610

9009914016

main90099-14016

9009914044

main90099-14044

9009914046

main90099-14046

9009914056

main90099-14056

9011606013

main90116-06013

9015960026

main90159-60026

9017906115

main90179-06115

9020106155

main90201-06155

9033903005

main90339-03005

9358016025

main93580-16025

9359016025

main93590-16025

22 parts on this diagram · 2 diagrams in section
