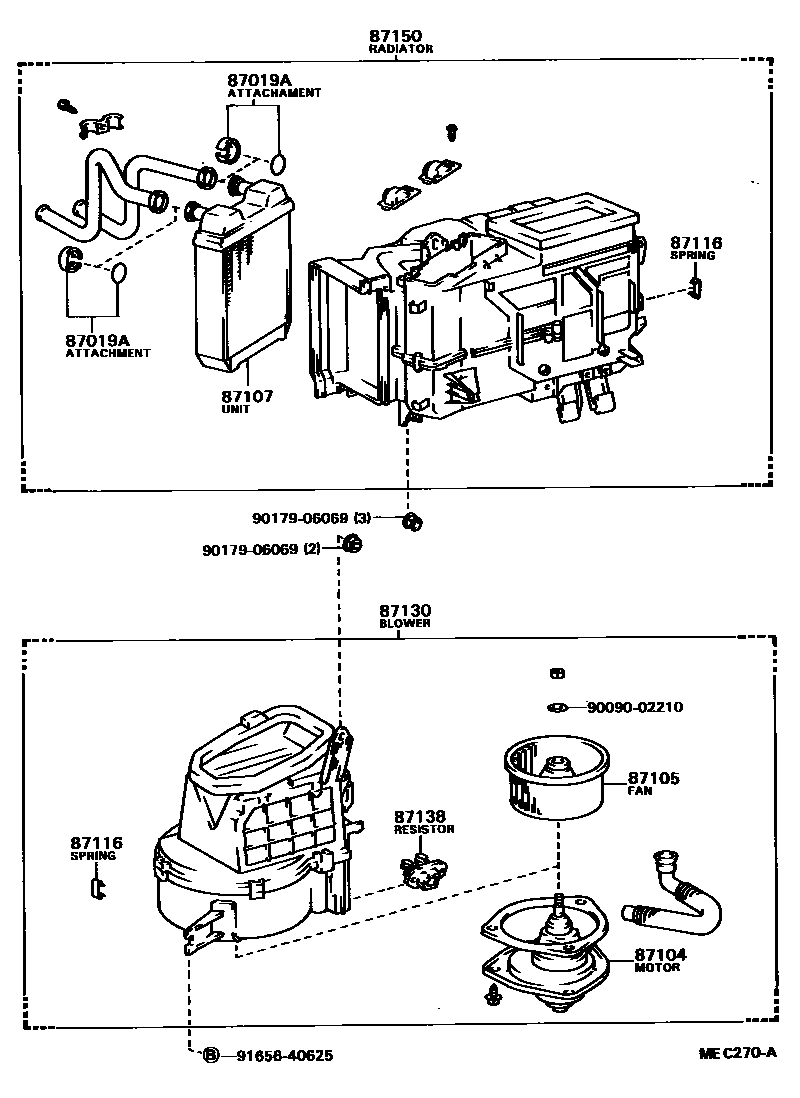

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

87019AATTACHMENT, HEATER

main87019-32010iCV1#,SV1#198210-198610

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-32010iCV1#,SV1#..RHD198210-198610

main87104-32020iCV10,SV1#..LHD198210-198406

main87104-32030iCV1#,SV1#..LHD198406-198610

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14030iCV1#,SV1#..RHD198210-198610

main87105-20090iCV10,SV1#..LHD198406-198408

main87105-22060iCV1#,SV1#..LHD198408-198610

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-32010iCV10,SV1#..RHD198210-198406

main87107-32020iCV1#,SV1#..LHD198210-198610

main87107-32030iSV11..ARL198406-198410

sub87107-89110

main87107-32040iCV1#,SV1#..RHD..EUG198406-198610

main87107-89110iSV11..ARL198410-198610

sub87107-32040

87116SPRING, HEATER CASE FASTENING

main87116-14010iCV10,SV1#..RHD198210-198610

87130BLOWER ASSY, HEATER, FRONT

main87130-32010iCV1#,SV1#..RHD198210-198610

main87130-32020iCV10,SV1#..LHD198210-198406

main87130-32040iCV1#,SV1#..LHD198406-198610

87138RESISTOR, HEATER BLOWER

main87138-32010iCV10,SV1#198210-198610

main87138-32020iCV1#,SV1#..LHD198406-198610

87150RADIATOR ASSY, HEATER

main87150-32011iCV10,SV1#..RHD198210-198406

main87150-32020iCV10,SV1#..LHD198210-198406

main87150-32030iSV11..ARL198406-198610

sub87150-32040

main87150-32040iCV1#,SV1#..RHD..EUG198406-198610

main87150-32050iCV1#,SV1#..LHD198406-198602

sub87150-32051

main87150-32051iCV11,SV1#..LHD198602-198610

9009002210

main90090-02210

9017906069

main90179-06069

9165640625

main91656-40625

11 parts on this diagram · 1 diagram in section
