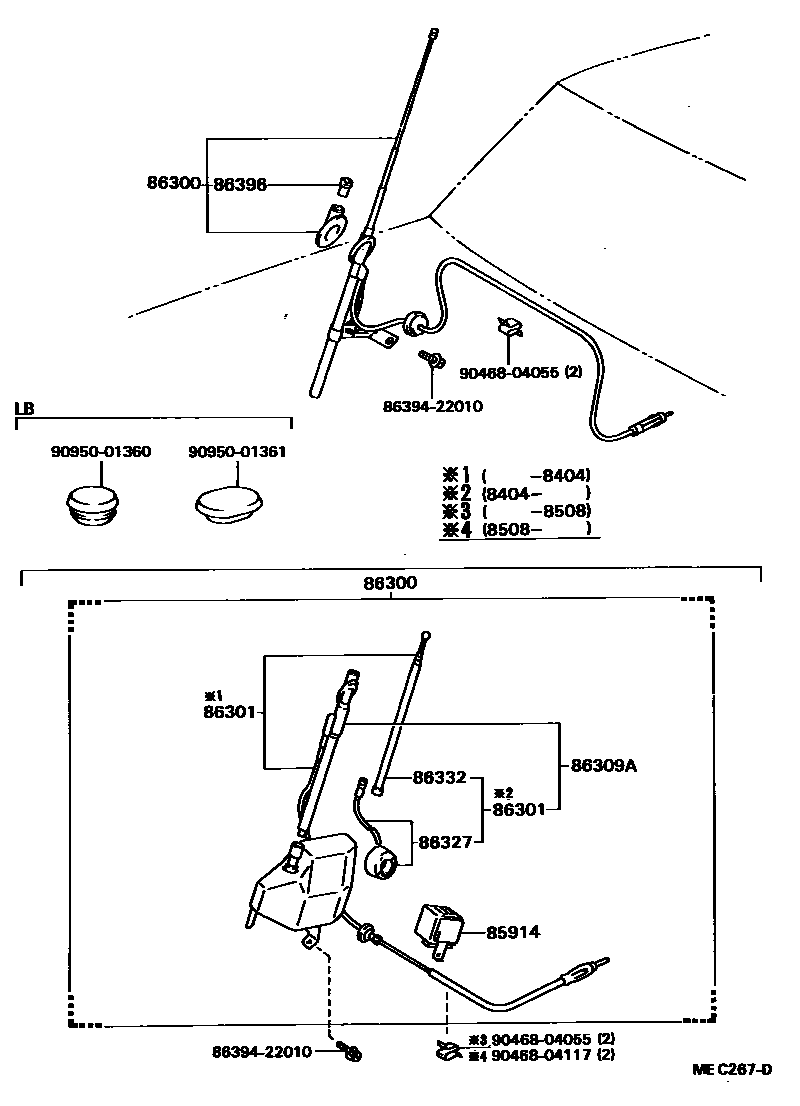

ANTENNA

85914RELAY, MOTOR ANTENNA CONTROL

main85914-14010iSV1#..RHD198210-198306

main85914-14020iCV1#,SV1#..RHD198306-198610

86300ANTENNA ASSY, W/HOLDER

main86300-32030iCV1#,SV1#..EUR198210-198610

main86300-32060iCV1#,SV1#..RHD198210-198610

MOTOR ANTENNA

sub86300-32061

86301POLE SUB-ASSY, ANTENNA

main86301-32060iCV10,SV1#..RHD198210-198404

sub86353-14330

main86353-14330iCV1#,SV1#..RHD198404-198610

sub86353-14332

86309APOLE SUB-ASSY, MOTOR ANTENNA

main86309-32030iCV1#,SV1#..RHD198210-198610

sub86309-32031

86327CABLE, W/ANTENNA DRUM

main86327-22210iCV1#,SV1#..RHD198210-198610

sub86327-22211

86332ROD, ANTENNA

main86332-14321iCV1#,SV1#..RHD198210-198610

86396NUT, ANTENNA

main86396-16020iCV1#,SV1#..EUR198210-198610

8639422010

main86394-22010

9046804055

main90468-04055

9046804117

main90468-04117

9095001360

main90950-01360

9095001361

main90950-01361

12 parts on this diagram · 1 diagram in section
