SPEAKER

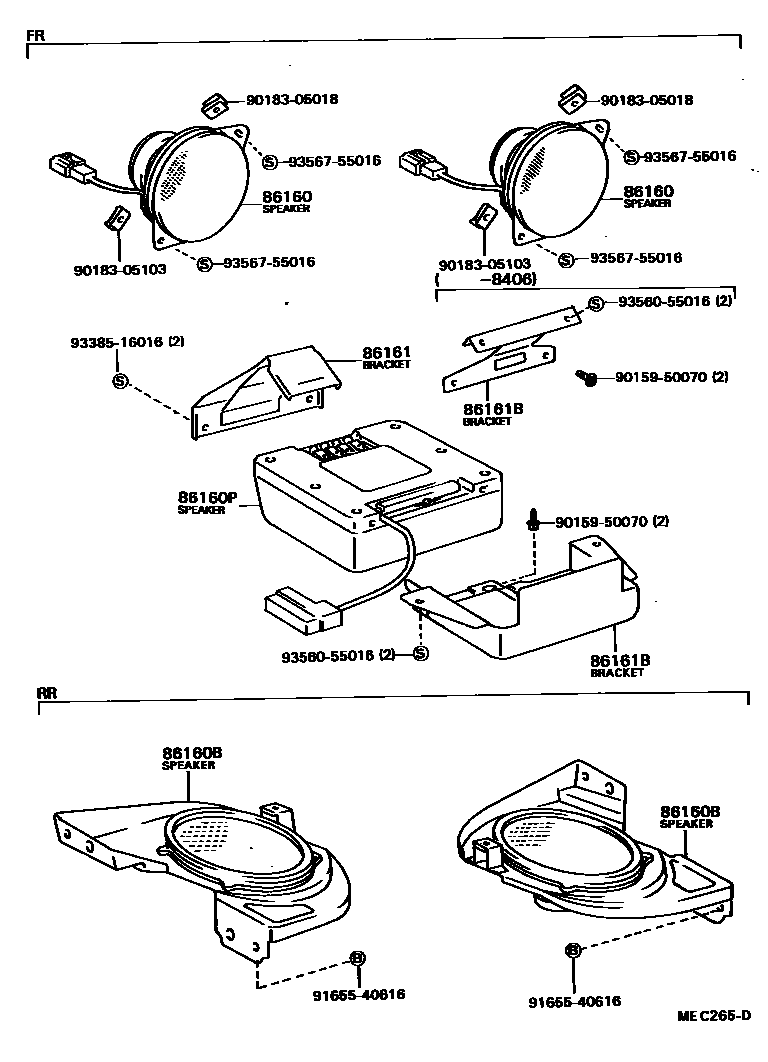

86160SPEAKER ASSY, FRONT NO.1

main86160-12170iCV1#,SV1#..RHD198406-198610

TEN

main86160-20230iCV1#,SV1#..RHD198406-198610

MATSUSHITA

main86160-32070iCV10,SV1#198210-198610

TEN

main86160-32080iCV1#,SV1#..LHD198210-198610

MATSUSHITA

86160BSPEAKER ASSY, REAR

main86160-32010iCV11,SV1#..RHD..EUG198603-198610

main86160-32050iSV11..ARL198303-198610

RH

main86160-32060iSV11..ARL198303-198610

LH

86160PSPEAKER ASSY, FRONT NO.2

main86150-32010iSV11..ARL198303-198406

main86150-32011iSV11..ARL198406-198610

86161BRACKET, SPEAKER, FRONT NO.1

main86219-32010iSV11..ARL198303-198610

86161BBRACKET, SPEAKER, FRONT NO.2

main86219-32020iSV11..ARL198303-198406

main86219-32050iSV11..ARL198406-198610

9015950070

main90159-50070

9018305018

main90183-05018

9018305103

main90183-05103

9165540616

main91655-40616

9338516016

main93385-16016

9356055016

main93560-55016

9356755016

main93567-55016

12 parts on this diagram · 1 diagram in section
