SEAT MOTOR & SEAT HEATER

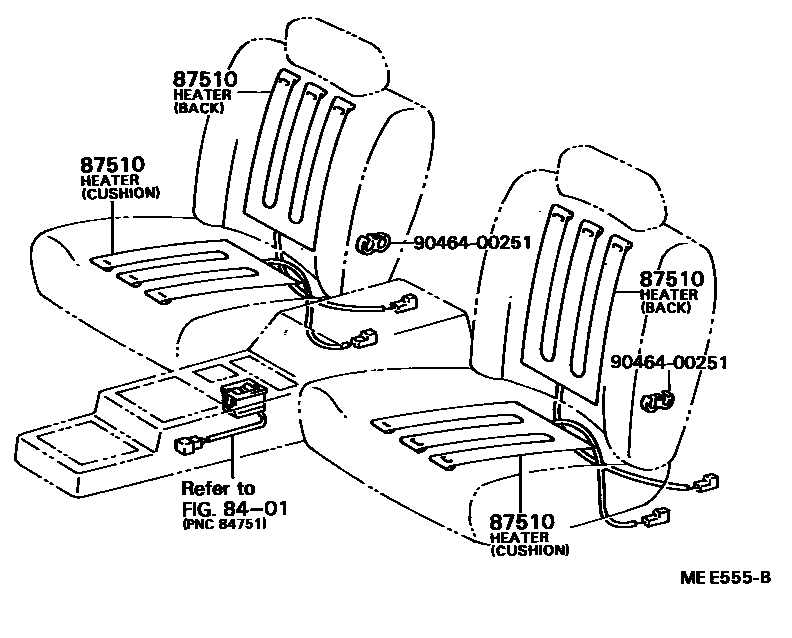

Parts diagram

8401

87510HEATER ASSY, SEAT

main87510-32010i198406-198610

CUSHION

main87510-32020i198406-198610

BACK

9046400251

main90464-00251

3 parts on this diagram · 1 diagram in section
