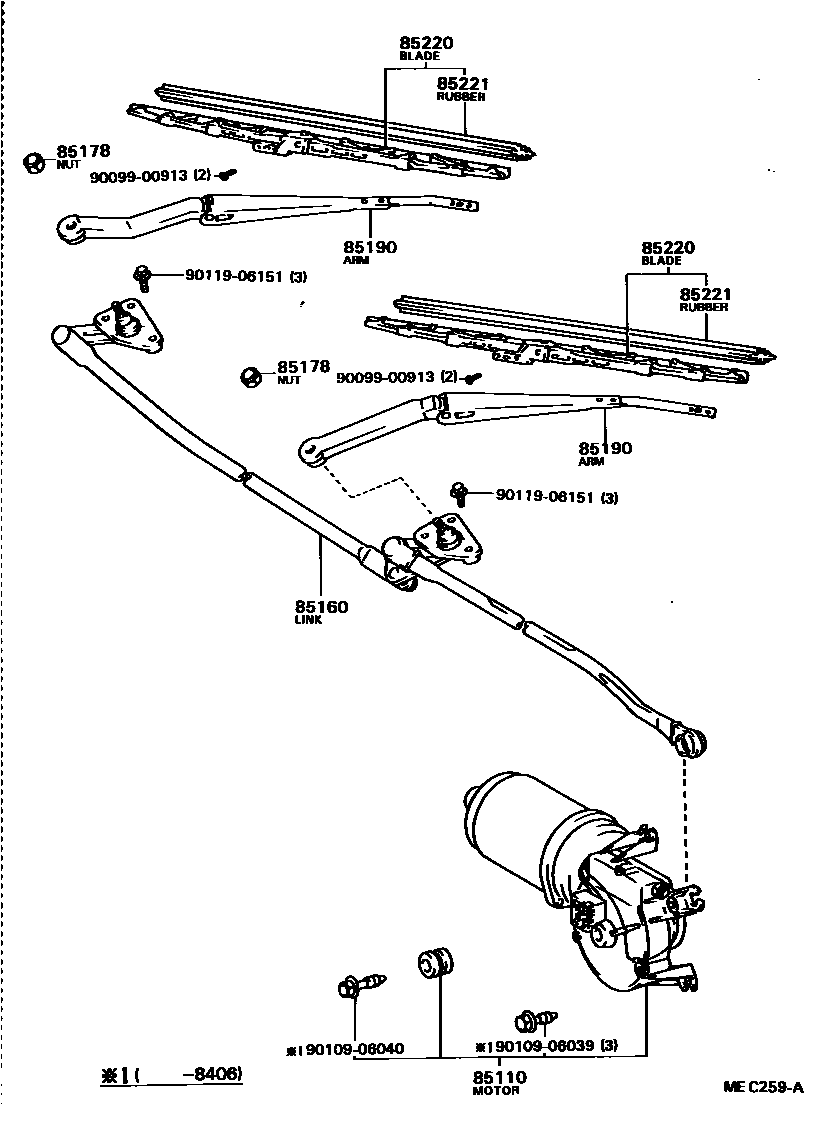

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-32050iCV10,SV1#..LHD198210-198406

sub85110-32110

main85110-32060iCV10,SV1#..RHD198210-198406

sub85110-32100

main85110-32080iSV11..ARL198406-198610

sub85110-32100

main85110-32100iCV1#,SV1#..RHD..EUG198406-198610

main85110-32110iCV1#,SV1#..LHD198406-198610

85160LINK ASSY, WINDSHIELD WIPER

main85160-32010iCV1#,SV1#..RHD198210-198610

main85160-32040iCV1#,SV1#..LHD198210-198610

LH

sub85160-32030

main85160-32050iCV1#,SV1#..LHD198210-198610

RH

sub85160-32060

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08029iCV10,SV1#198210-198508

main90176-08033iCV11,SV1#198508-198610

85190ARM ASSY, WINDSHIELD WIPER

main85190-32070iCV10,SV1#..LHD198210-198406

LH

main85190-32090iCV10,SV1#..RHD..EUG198210-198406

RH

sub85190-32150

main85190-32120iSV11..ARL198303-198406

RH

sub85190-32130

main85190-32150iCV1#,SV1#..RHD..EUG198406-198610

RH

main85190-32160iSV11..ARL198406-198610

RH

sub85190-32130

main85190-32170iCV1#,SV1#..LHD198406-198610

LH

main85210-32070iCV10,SV1#..LHD198210-198406

RH

main85210-32090iCV10,SV1#..RHD198210-198406

LH

sub85210-32110

main85210-32110iCV1#,SV1#..RHD..EUG198406-198610

LH

main85210-32130iSV11..ARL198406-198610

LH

sub85210-32110

main85210-32140iCV1#,SV1#..LHD198406-198610

RH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16320iCV1#,SV1#..RHD..EUG198406-198610

LH

sub85220-16321

main85220-16340iCV1#,SV1#..LHD198406-198610

RH

sub85220-16640

main85220-32070iSV10..RHD198210-198212

RH

sub85220-32311

main85220-32080iSV10..RHD198210-198212

LH

sub85220-32150

main85220-32130iSV10..LHD198210-198301

RH

sub85220-32290

main85220-32140iCV10,SV1#..RHD198212-198406

RH

sub85220-32310

main85220-32150iSV11..ARL198212-198610

LH

sub85220-32260

main85220-32180iSV10..LHD198210-198301

LH

sub85220-32280

main85220-32280iCV10,SV1#..LHD198301-198506

LH

sub85220-3A060

main85220-32290iCV10,SV1#..LHD198301-198406

RH

main85220-32300iCV10,SV1#..RHD198406-198506

RH

sub85220-32311

main85220-32390iCV1#,SV1#..LHD198506-198610

LH

sub85220-32391

main85220-32520iCV1#,SV1#..RHD198506-198610

RH

sub85220-32650

85221BLADE, WINDSHIELD WIPER

main85221-30090iSV1#..RHD198212-198308

sub85221-30110

main85221-30100iCV1#,SV1#..LHD198406-198610

RH

sub85221-40040

main85221-30120iCV1#,SV1#..RHD..EUG198406-198610

LH

sub85221-40040

main85221-32010iSV10..RHD198210-198212

sub85221-30110

main85221-32030iSV10..LHD198210-198301

sub85221-32060

main85221-32060iSV11..ARL198406-198610

LH

sub85221-30130

main85221-32060iSV11..ARL198406-198610

RH

sub85221-30130

main85221-32060iCV10,SV1#..LHD198301-198406

sub85221-30130

9009900913

main90099-00913

9010906039

main90109-06039

9010906040

main90109-06040

9011906151

main90119-06151

10 parts on this diagram · 2 diagrams in section
