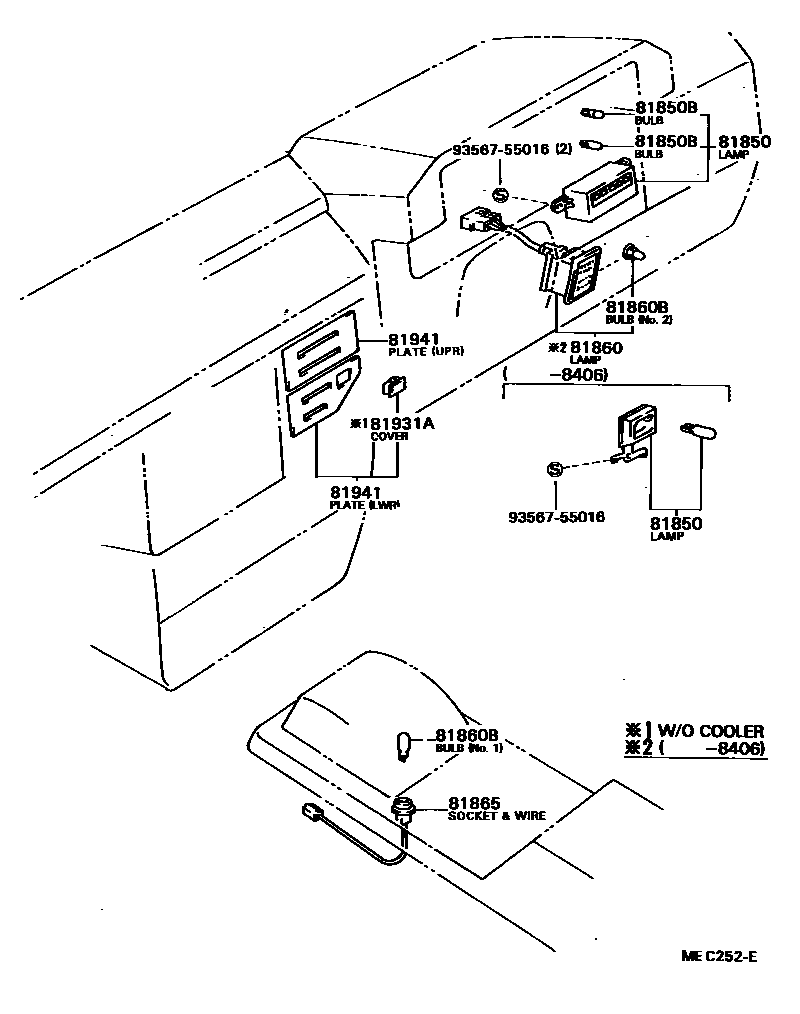

INDICATOR

81850LAMP ASSY, INDICATOR

main81850-32010iCV10,SV1#..GL,GLI198210-198406

main81850-32020iSV1#..RHD..4FC198406-198610

main81850-32040iCV1#,SV1#..LHD..4FC198406-198610

81850BBULB, INDICATOR LAMP

main84999-20020iCV1#,SV1#..4FC198406-198610

BASE=BLACK

main84999-20040iCV1#,SV1#..4FC198406-198610

BASE=BLUE

81860LAMP ASSY, TRANSMISSION INDICATOR

main81860-32010iCV10,SV1#..4FC198210-198406

W/OVERDRIVE

sub81860-20040

81860BBULB, TRANSMISSION INDICATOR LAMP

main84999-10110iCV10,SV1#..4FC198210-198406

12V 1.12W,NO.2

main99132-12034iCV1#,SV1#..4FC198210-198610

12V 3.4W,NO.1,12V 3.4W

81865SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP

main35906-32010iCV10,SV1#..4FC198210-198406

sub35906-32030

main35906-32030iCV1#,SV1#..4FC198406-198610

81931ACOVER, COOLER SWITCH HOLE

main55538-32010iCV1#,SV1#198210-198610

81941PLATE, HEATER CONTROL NAME

main55519-32010iCV10,SV1#..RHD198210-198406

UPR

sub55519-32011

main55519-32011iCV1#,SV1#..RHD198406-198610

UPR

main55519-32020iCV10,SV1#..RHD198210-198406

LWR

sub55519-32021

main55519-32021iCV1#,SV1#..RHD198406-198610

LWR

main55519-32050iCV10,SV1#..LHD198210-198406

UPR

sub55519-32051

main55519-32051iCV1#,SV1#..LHD198406-198610

UPR

main55519-32060iCV10,SV1#..LHD198210-198406

LWR

sub55519-32061

main55519-32061iCV1#,SV1#..LHD198406-198610

LWR

main55519-32070iCV10,SV10..LHD198210-198406

LWR,W/COOLER

sub55519-32061

main55519-32071iSV1#..LHD..EUG198406-198610

LWR,W/COOLER

sub55519-32061

9356755016

main93567-55016

8 parts on this diagram · 1 diagram in section
