METER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018×8iCV10,SV1#198210-198406

12V 1.2W W/O SOCKET

main99132-12034×15iCV1#,SV1#198210-198610

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-12020×2iSV11..EUR198406-198610

*DS,12V 3.4W,LONG

main83101-14030×15iCV1#,SV1#198210-198610

12V 3.4W

main83101-14040×8iCV10,SV1#198210-198406

12V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-32010iSV10..RHD198210-198406

main83247-32020iSV11..LHD198406-198610

W/TACHOMETER

main83247-32030iSV10..RHD198210-198406

W/TACHOMETER

main83247-32040iSV11..RHD..EUG198406-198610

W/DIGITAL SPEEDOMETER

sub83247-32890

main83247-32051iSV11..RHD198303-198406

W/TACHOMETER

main83247-32060iSV11..ARL198406-198610

main83247-32110iSV1#..LHD198303-198308

main83247-32130iSV10..LHD..GL198210-198406

W/TACHOMETER

main83247-32151iSV11..LHD198303-198406

W/TACHOMETER

main83247-32160iCV1#..RHD198308-198610

main83247-32180iCV10..LHD198308-198412

main83247-32200iCV1#..LHD198412-198610

main83247-32211iSV11..LHD198308-198406

main83247-32260iCV1#..LHD..GL198412-198610

W/*RHW,TACHOMETER

main83247-32270iSV11..RHD..EUG198310-198406

main83247-32370iCV10..LHD198308-198406

*FRG,FRANCE,EEC SPEC

main83247-32410iCV10..RHD198308-198406

W/TACHOMETER

main83247-32450iCV10..LHD..GL198308-198406

W/TACHOMETER

main83247-32470iCV10..LHD..GL198308-198406

*FRG,FRANCE,EEC,W/TACHOMETER

main83247-32590iSV1#..RHD..EUG198406-198610

main83247-32670iSV1#..LHD198406-198610

main83247-32710iSV11..LHD198406-198610

W/DIGITAL SPEEDOMETER

main83247-32750iSV1#..RHD..EUG198406-198610

W/TACHOMETER

main83247-32790iCV1#..RHD198406-198610

W/TACHOMETER

main83247-32810iSV10..LHD..GL198406-198610

W/TACHOMETER

main83247-32850iCV10..LHD..GL198406-198412

W/TACHOMETER

main83247-32870iCV1#..LHD..GL198412-198610

W/*RHW,TACHOMETER,*FRG

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-32080iSV11..RHD..EUG198406-198610

W/DIGITAL SPEEDOMETER

main83247-32170iSV1#..LHD198210-198610

main83247-32190iSV1#..LHD..(GL,GLI)198210-198610

W/TACHOMETER

main83247-32490iCV1#..LHD..GL198308-198610

W/TACHOMETER

main83247-32550iCV10..RHD198308-198406

main83247-32570iCV10..LHD198308-198406

main83247-32610iCV1#..RHD198406-198610

main83247-32630iCV1#..LHD198406-198610

83109BULB, COMBINATION METER, NO.2

main83109-10010iSV1#..LHD198406-198610

12V 1.4W,ORANGE CAP

main83109-24030×3iCV1#,SV1#198406-198610

12V3.4W W(GREEN CAP)

main83109-24040×3iSV11..EUR198406-198610

12V1.4W W(GREEN CAP)

83110SPEEDOMETER ASSY

main83110-32030iSV1#..LHD198210-198308

main83110-32031iSV1#..LHD198308-198406

main83110-32040iSV1#..LHD..(GL,GLI)198210-198308

W/TACHOMETER

main83110-32041iCV10,SV1#..LHD..(GL,GLI)198308-198406

W/TACHOMETER

main83110-32050iSV10..RHD198210-198308

main83110-32051iSV1#..RHD..EUG198308-198406

main83110-32060iSV10..RHD198210-198308

W/TACHOMETER

main83110-32061iCV10,SV1#..RHD..EUG198308-198406

W/TACHOMETER

main83110-32070iSV11..ARL198303-198406

main83110-32150iCV10..RHD198308-198406

main83110-32160iCV10..LHD198308-198406

main83110-32260iCV1#,SV1#..RHD..EUG198406-198610

W/TACHOMETER

main83110-32270iSV1#..LHD198406-198610

main83110-32280iCV1#..LHD198406-198610

main83110-32290iCV1#,SV1#..LHD..(GL,GLI)198406-198610

W/TACHOMETER

main83110-32300iSV11..ARL198406-198610

main83110-32320iSV11..LHD198406-198610

W/DIGITAL SPEEDO METER

main83110-32330iSV11..RHD..EUG198406-198610

W/DIGITAL SPEEDOMETER

main83110-32340iSV1#..RHD..EUG198406-198610

main83110-32350iCV1#..RHD198406-198610

83128KNOB, TRIP COUNTER

main83128-14510iCV1#,SV1#..RHD198210-198610

W/TACHOMETER

main83128-32010iCV1#,SV1#..EUR198210-198610

main83128-32030iSV11..RHD..EUG198406-198610

W/DIGITAL SPEEDOMETER

main83128-32070iSV11..LHD198406-198610

W/DIGITAL SPEEDOMETER

83132CASE, COMBINATION METER

main83132-32030iSV10..RHD198210-198406

W/TACHOMETER

main83132-32070iSV11..RHD198303-198406

W/TACHOMETER

main83132-32110iSV10198210-198406

W/O TACHOMETER

main83132-32130iSV10..LHD198210-198406

*FRG,W/O TACHOMETER;FRANCE,EEC SPEC,W/O TACHOMETER

main83132-32150iSV11..EUR198303-198406

W/O TACHOMETER

main83132-32170iSV10..LHD..GL198210-198406

W/TACHOMETER

main83132-32230iSV11..LHD198303-198406

W/TACHOMETER

main83132-32270iCV10..RHD198308-198406

W/O TACHOMETER

main83132-32310iCV10..LHD198308-198406

W/O TACHOMETER

main83132-32330iCV10..LHD198308-198406

*FRG,FRANCE,EEC,W/O TACHOMETER

main83132-32350iCV10..RHD198308-198406

W/TACHOMETER

main83132-32370iCV10..LHD..GL198308-198406

*FRG,FRANCE,EEC,W/TACHOMETER

main83132-32390iCV10..LHD..GL198308-198406

W/TACHOMETER

main83132-32410iSV11..LHD..EUG198310-198406

FRANCE,*FRG,W/O TACHOMETER

main83132-32510iCV1#..RHD198406-198610

main83132-32550iSV10198406-198412

main83132-32570iSV11..EUR198406-198412

main83132-32590iSV10..LHD198406-198610

W/RED HAZARD WARNING

main83132-32610iSV11..LHD198412-198610

W/RED HAZARD WARNING

main83132-32650iCV10..LHD198406-198412

main83132-32670iCV1#..LHD198406-198610

W/RED HAZARD WARNING

main83132-32690iSV11..LHD198406-198610

W/DIGITAL SPEEDOMETER

main83132-32710iSV11..RHD198406-198610

W/TACHOMETER

main83132-32730iSV10..RHD198406-198610

W/TACHOMETER

main83132-32750iCV1#..RHD198406-198610

W/TACHOMETER

main83132-32770iSV10..LHD..GL198406-198610

W/TACHOMETER

main83132-32790iSV11..LHD198406-198610

W/TACHOMETER

main83132-32830iCV1#..LHD..GL198406-198610

W/TACHOMETER

main83132-32850iCV1#..LHD..GL198406-198610

W/*RHW,TACHOMETER

main83132-32870iSV11..RHD..EUG198406-198610

W/DIGITAL SPEEDOMETER

83133PLATE, COMBINATION METER, NO.1

main83133-32010iCV10,SV1#..RHD..EUG198210-198406

main83133-32030iCV10,SV1#..RHD198210-198406

W/TACHOMETER

main83133-32090iSV10..LHD198210-198308

main83133-32110iCV1#..LHD198308-198610

main83133-32130iCV10,SV1#..LHD198210-198406

W/TACHOMETER

main83133-32150iCV1#,SV1#..RHD..EUG198406-198610

main83133-32170iCV1#,SV1#..RHD198406-198610

W/TACHOMETER

main83133-32250iSV11..LHD198406-198610

W/DIGITAL SPEEDOMETER

main83133-32310iSV11..RHD..EUG198406-198610

W/DIGITAL SPEEDOMETER

83142SHADE, COMBINATION METER LAMP

main83142-32010iCV1#,SV1#..EUR198210-198610

83310GAGE ASSY, FUEL RECEIVER

main83243-32030iSV11..ARL198303-198406

main83243-32051iCV10,SV1#..EUR198210-198406

main83243-32070iCV10,SV1#..RHD..EUG198210-198406

W/TACHOMETER

main83243-32091iCV10,SV1#..LHD..(GL,GLI)198210-198406

W/TACHOMETER

main83243-32150iCV1#,SV1#..RHD..EUG198406-198610

main83243-32190iCV1#,SV1#..LHD198406-198610

main83243-32210iSV11..ARL198406-198610

main83243-32230iCV1#,SV1#..RHD..EUG198406-198610

W/TACHOMETER

main83243-32250iCV1#,SV1#..LHD..(GL,GLI)198406-198610

W/TACHOMETER

main83310-14111iSV11..RHD..EUG198406-198610

W/DIGITAL SPEEDOMETER

main83310-32010iSV11..LHD198406-198610

W/DIGITAL SPEEDOMETER

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-32030iSV11..ARL198303-198406

main83244-32050iCV10,SV1#..EUR198210-198406

main83244-32070iCV10,SV1#..RHD..EUG198210-198406

W/TACHOMETER

main83244-32090iCV10,SV1#..LHD..(GL,GLI)198210-198406

W/TACHOMETER

main83244-32150iCV1#,SV1#..RHD..EUG198406-198610

main83244-32230iCV1#,SV1#..LHD198406-198610

main83244-32290iSV11..ARL198406-198610

main83244-32310iCV1#,SV1#..RHD..EUG198406-198610

W/TACHOMETER

main83244-32370iCV1#,SV1#..LHD..(GL,GLI)198406-198610

W/TACHOMETER

main83410-32010iSV11..LHD198406-198610

W/DIGITAL SPEEDOMETER

83909KNOB, CLOCK

main83909-14012iCV1#,SV1#..EUR198210-198610

ANALOGUE

main83909-14200iCV1#,SV1#..GL,GLI198210-198610

DIGITAL

main83909-22180iSV11..RHD..EUG198406-198610

DIGITAL,W/*DS

83910CLOCK ASSY

main83910-14270iSV11..RHD..EUG198406-198610

DIGITAL,W/*DS

main83910-32010iCV10,SV1#..EUR198210-198406

ANALOGUE

main83910-32020iCV1#,SV1#..RHD198210-198610

DIGITAL

main83910-32030iCV1#,SV1#..LHD..(GL,GLI)198210-198610

DIGITAL

main83910-32040iSV11..LHD198406-198610

DIGITAL,W/*DS

main83910-32050iCV1#,SV1#..EUR198406-198610

ANALOGUE

83919SCREW, CLOCK

main83919-12230iCV1#,SV1#..GL,GLI198210-198610

DIGITAL

main83919-14012iCV1#,SV1#..EUR198210-198610

ANALOGUE

9009900909

main90099-00909

9009900910

main90099-00910

9009900929

main90099-00929

9009900939

main90099-00939

9009900943

main90099-00943

9009900954

main90099-00954

9331513010

main93315-13010

9354013014

main93540-13014

9356755020

main93567-55020

9356855016

main93568-55016

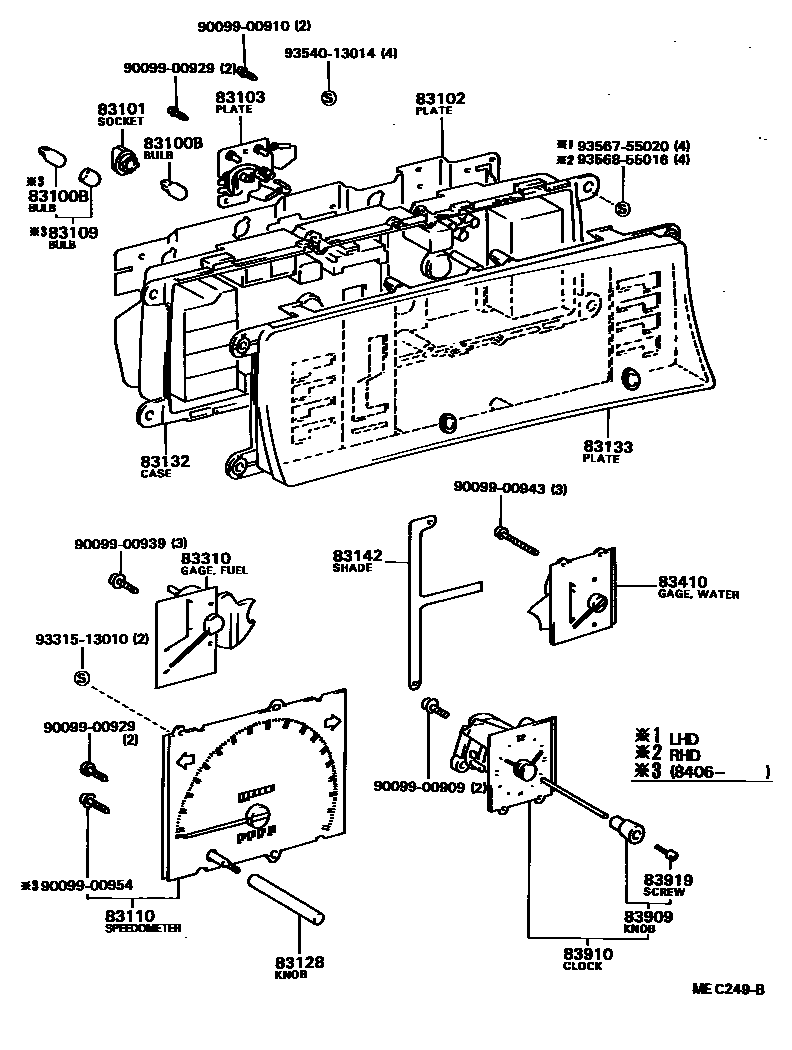

25 parts on this diagram · 7 diagrams in section
