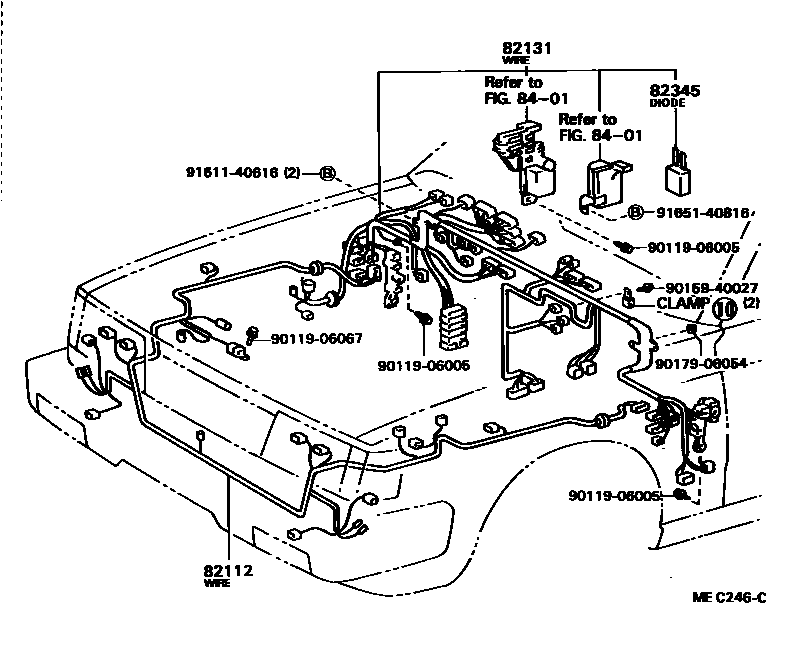

WIRING & CLAMP
82112WIRE, ENGINE ROOM, NO.2
W/HEADLAMP CLEANER
sub82112-32240
W/HEADLAMP CLEANER
sub82112-32261
sub82112-32271
82131WIRE, COWL
W/*PW
NORWAY SPEC
FINLAND SPEC
W/*PW
W/*AS & *EL OR *SNR
W/*AS & *EL OR *SNR
W/*DS
sub82131-32741
W/*EL OR *SNR
W/*EL OR *SNR
sub82131-32751
W/*DS
NORWAY SPEC,*SNR
W/RUNNING LIGHT & *AS & *SNR;W/RUNNING LIGHT & *AS & *EL
FINLAND SPEC,W/*SNR OR W/*PW
W/RUNNING LIGHT & *DS
82345DIODE
8401
9011906005
main90119-06005
9011906067
main90119-06067
9015940027
main90159-40027
9017906054
main90179-06054
9161140616
main91611-40616
9165140816
main91651-40816
10 parts on this diagram · 9 diagrams in section
