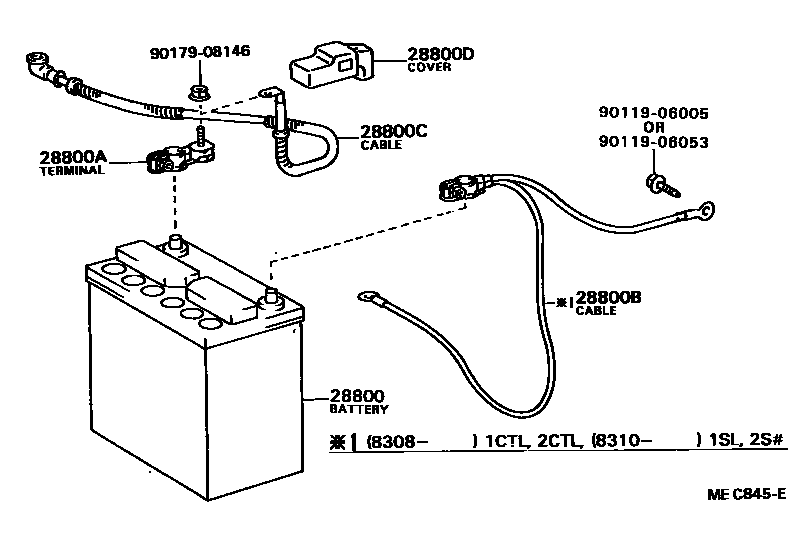

BATTERY & BATTERY CABLE

28800BATTERY

main28800-15050i2SELC..SV11..ARL198502-198610

55D23L,55D23L-MF(12V 60AH-20HR)

sub28800-42030

main28800-31031i1SL..SV10;2SELC..SV11..ARL198210-198610

32C24L,N40L(12V 40AH-20HR)

sub28800-31021

main28800-43070i2SELC..SV11..ARL198311-198502

55D23L-MF(12V 60AH-20HR)

main28800-54200i1CTL,2CTL..CV1#198308-198610

80D26L,NX110-5L-MF(12V 65AH-20HR)

sub28800-64130

main28800-64070i1CTL..CV10198308-198610

95D31L,NX120-7L-MF(12V 80AH-20HR)

sub28800-64180

main28800-64090i1CTL..CV10198406-198502

NX120-7L-MF(12V 80AH-20HR)

28800ATERMINAL, BATTERY POSITIVE

main90982-05023i1CTL,2CTL,1SL,2SE#..CV1#,SV1#198210-198610

sub90982-05029

28800BCABLE, BATTERY TO GROUND

main82124-32010i1CTL,2CTL..CV1#198308-198610

main90982-02244i1SL,2SE#..SV1#198310-198610

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82123-32010i1CTL..CV10198308-198406

main82123-32030i1CTL,2CTL..CV1#198406-198610

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-20120i1SL,2SEL..SV1#198406-198610

main82821-24010i1CTL,2CTL..CV1#198308-198610

main82821-32010i1SL,2SEL..SV1#198210-198406

9011906005

main90119-06005

9011906053

main90119-06053

9017908146

main90179-08146

8 parts on this diagram · 1 diagram in section
