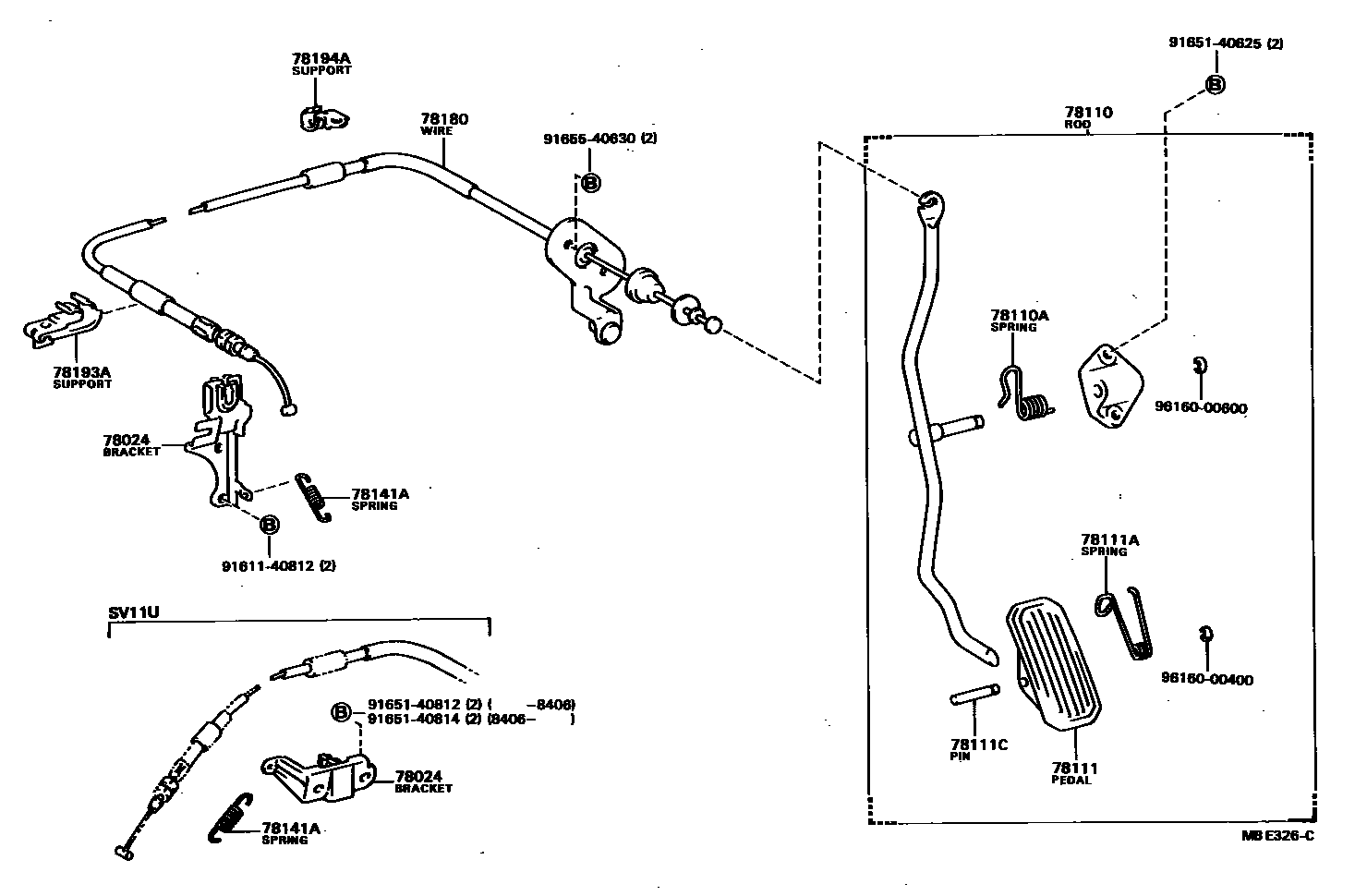

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-32010iSV10¥2,440198210-198610

main78024-32020iSV11..RHD¥3,050198303-198610

main78024-32030iSV11..SDZ198303-198308

main78024-32031iSV11..LHD¥4,940198308-198610

main78024-32040iCV1#..RHD¥2,170198308-198610

main78024-32050iCV1#..LHD¥3,230198308-198610

78110ROD ASSY, ACCELERATOR PEDAL

main78120-32010iSV10..RHD¥3,240198210-198610

main78120-32020iSV1#..LHD198210-198610

main78120-32030iSV11..RHD..4FC198303-198610

main78120-32040iCV10..RHD198306-198610

main78120-32050iSV11..LHD..5F¥3,420198306-198610

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18025iSV10;CV1#,SV11..4FC¥550198210-198610

main90508-23069iCV1#,SV11..5F¥550198306-198610

78111PEDAL, ACCELERATOR

main78111-12100iCV1#,SV1#..RHD¥1,220198309-198610

main78111-32010iCV10,SV1#¥650198210-198610

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18046iCV1#,SV1#..LHD¥540198210-198610

main90508-23003iCV1#,SV1#..RHD¥230198210-198610

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iCV1#,SV1#¥230198210-198610

78141ASPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)

main90506-12041iSV11..5F¥230198303-198307

sub90507-11002¥250

main90507-10005iSV10..5F¥260198210-198310

main90507-10008iSV11..4FC¥230198303-198307

sub90507-11002¥250

main90507-10013iSV10..4FC¥250198210-198610

main90507-11002iSV11¥250198307-198610

main90507-11003iSV10..5F¥250198310-198610

78180WIRE ASSY, ACCELERATOR

main78180-32010iSV10..RHD¥5,500198210-198610

main78180-32040iSV11..RHD¥4,800198303-198610

main78180-32060iSV10..LHD¥5,900198210-198610

main78180-32070iSV11..LHD¥2,960198303-198405

sub78180-32090¥2,960

main78180-32090iSV11..LHD¥2,960198405-198610

main78180-32100iCV1#..RHD¥4,750198308-198610

main78180-32110iCV1#..LHD¥3,560198308-198610

78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3

main78193-32010iSV10198210-198610

main78193-32030iCV1#..LHD198308-198610

78194ASUPPORT, ACCELERATOR CONTROL CABLE, NO.4

main78194-32010iSV10..RHD198210-198610

9161140812

main91611-40812¥110

9165140625

main91651-40625¥70

9165140812

main91651-40812¥100

9165140814

main91651-40814¥180

9165540630

main91655-40630¥140

9616000400

main96160-00400¥120

9616000600

main96160-00600¥80

17 parts on this diagram · 4 diagrams in section
