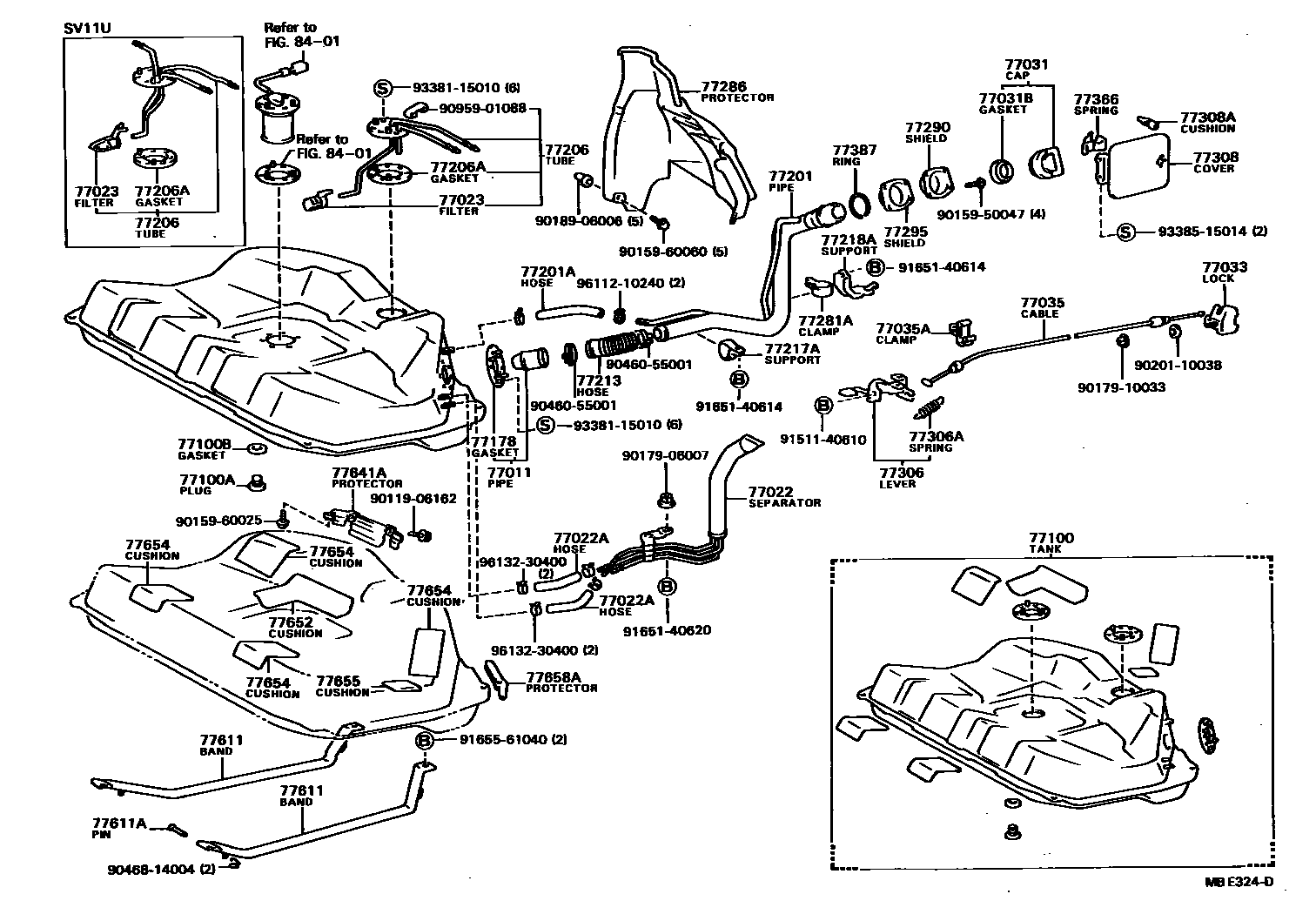

FUEL TANK & TUBE
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77022SEPARATOR SUB-ASSY, FUEL EVAPORATIVE
77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77023FILTER SUB-ASSY, FUEL SUCTION TUBE
77031CAP ASSY, FUEL TANK
77031BGASKET (FOR FUEL TANK CAP)
77033LOCK SUB-ASSY, FUEL TANK CAP
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035ACLAMP (FOR FUEL LID LOCK CONTROL CABLE)
77100TANK ASSY, FUEL
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77201PIPE SUB-ASSY, FUEL TANK INLET
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77206TUBE SUB-ASSY, FUEL TANK SUCTION
77206AGASKET (FOR FUEL TANK SUCTION TUBE)
77213HOSE, FUEL TANK SUB INLET
L=248
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77281ACLAMP, FUEL FILLER PIPE
77286PROTECTOR, FUEL TANK INLET PIPE
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77295SHIELD, FUEL FILLER PIPE
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306ASPRING, FUEL LID OPEN LEVER
77308COVER SUB-ASSY, FUEL INLET BOX
77308ACUSHION(FOR FUEL INLET BOX COVER)
77366SPRING, FUEL FILLER OPENING LID HINGE
77387RING, FUEL INLET BOX
77611BAND, FUEL TANK
RH
LH
77611APIN (FOR FUEL TANK BAND)
77641APROTECTOR, FUEL TANK, NO.1
77652CUSHION, FUEL TANK, NO.1
77654CUSHION, FUEL TANK, NO.2
77655CUSHION, FUEL TANK, NO.3
77658APROTECTOR, FUEL TANK EDGE, NO.1
8401
9011906162
9015950047
9015960025
9015960060
9017906007
9017910033
9018906006
9020110038
9046055001
9046814004
9095901088
9151140610
9165140614
9165140620
9165561040
9338115010
9338515014
9611210240
9613230400
57 parts on this diagram · 6 diagrams in section
