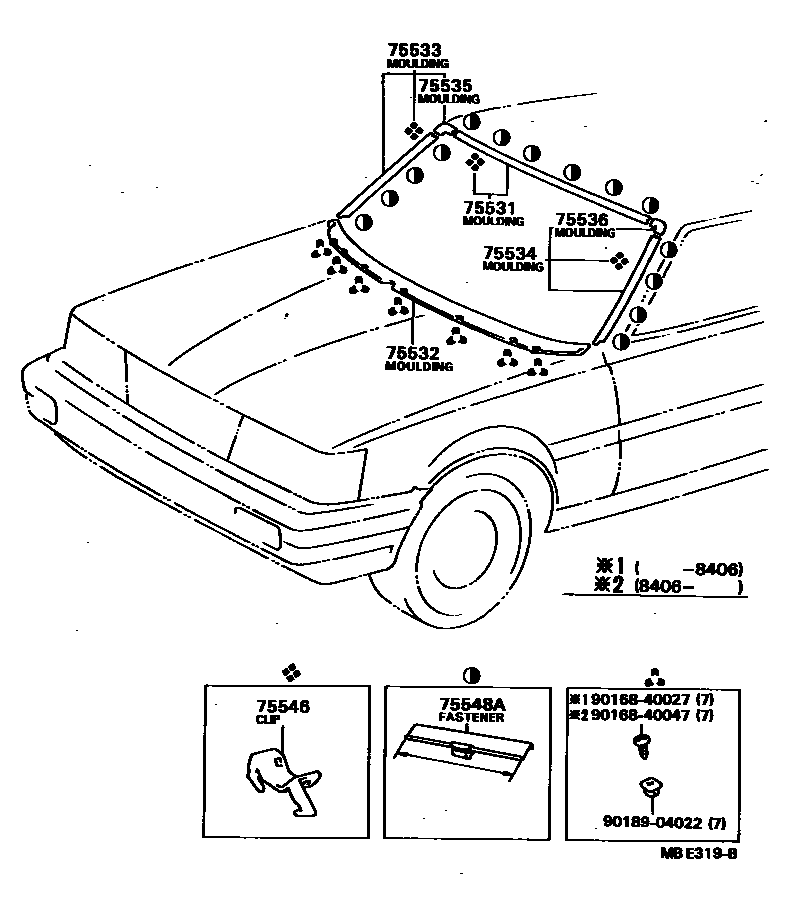

FRONT MOULDING

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-32010iCV1#,SV1#..4D198210-198610

main75531-32020iCV1#,SV1#..5D198210-198610

75532MOULDING, WINDSHIELD, LOWER

main75535-32010iCV10,SV1#..RHD198210-198406

main75535-32040iCV10,SV1#..LHD198210-198406

main75535-32050iCV1#,SV1#..RHD198406-198610

main75535-32070iCV1#,SV1#..LHD198406-198610

main75535-32080iCV11,SV1#..LHD198508-198605

COLD SPEC

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-32010iCV1#,SV1#..4D198210-198610

main75533-32020iCV1#,SV1#..5D198210-198610

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-32010iCV1#,SV1#..4D198210-198610

main75534-32020iCV1#,SV1#..5D198210-198610

75535MOULDING, WINDSHIELD CORNER, UPPER RH

main75541-32010iCV1#,SV1#..4D198210-198610

75536MOULDING, WINDSHIELD CORNER, UPPER LH

main75542-32010iCV1#,SV1#..4D198210-198610

75546CLIP, WINDSHIELD OUTSIDE MOULDING

main75545-32010iCV1#,SV1#198210-198610

SIDE

main75546-32010iCV1#,SV1#198210-198610

UPR

75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1

main75548-22060iCV10,SV1#198407-198610

L=40

main75548-32010iCV10,SV1#198210-198610

L=70

9016840027

main90168-40027

9016840047

main90168-40047

9018904022

main90189-04022

11 parts on this diagram · 1 diagram in section
