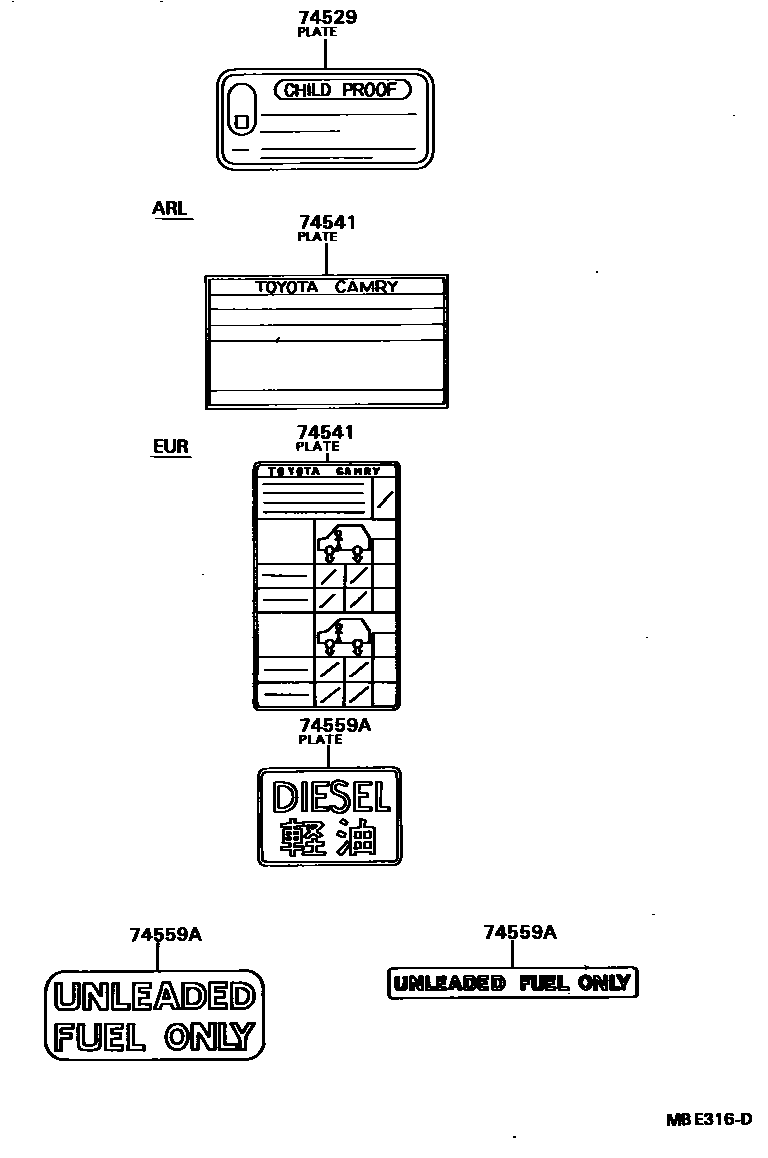

CAUTION PLATE (EXTERIOR & INTERIOR)

74529PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION

main69339-12010iCV1#,SV1#198305-198610

main69339-20030iSV1#198210-198305

74541PLATE, TIRE PRESSURE CAUTION

main42661-32040iSV11..ARL198303-198610

main42661-32060iCV1#,SV1#..EUR198412-198610

74559APLATE, FUEL CAUTION

main74559-14030iCV1#198308-198610

main74559-20041iSV11..FRG;SV11..ARL198508-198610

FUEL LID

sub74559-14050

main74559-20060iSV11..FRG198508-198610

INSTRUMENT PANEL

3 parts on this diagram · 1 diagram in section
