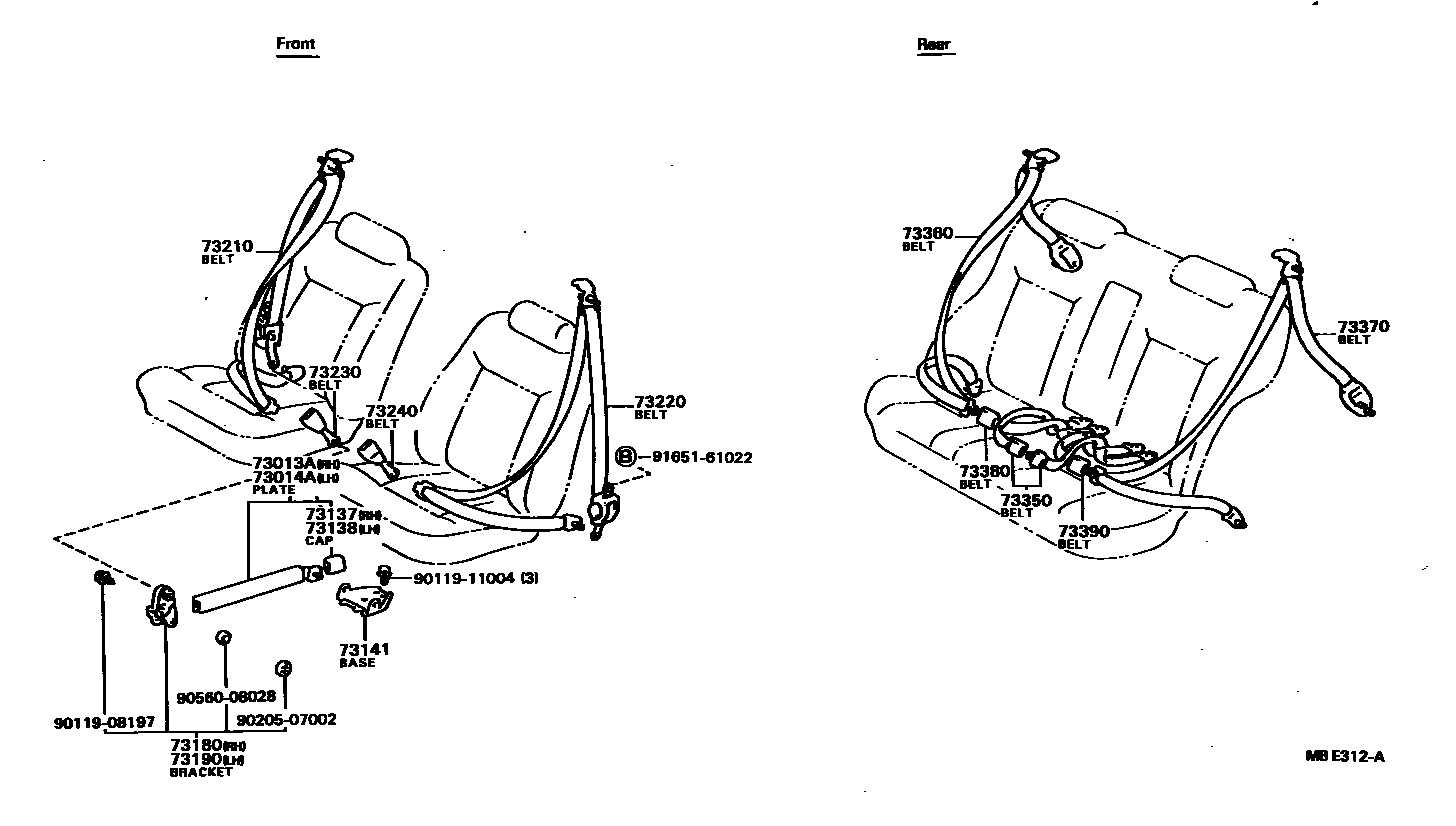

SEAT BELT & CHILD RESTRAINT SEAT
73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
73137CAP, FRONT SEAT BELT INNER ANCHOR, RH
73138CAP, FRONT SEAT BELT INNER ANCHOR, LH
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
73141BASE, FRONT SEAT BELT ANCHOR
73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
73210BELT ASSY, FRONT SEAT OUTER, RH
73220BELT ASSY, FRONT SEAT OUTER, LH
73230BELT ASSY, FRONT SEAT INNER, RH
SHADOW GRAY,SHADOW GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
73240BELT ASSY, FRONT SEAT INNER, LH
SHADOW GRAY,SHADOW GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
SHADOW GRAY,SHADOW GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
SHADOW GRAY,SHADOW GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
SHADOW GRAY,SHADOW GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
SHADOW GRAY,SHADOW GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
SHADOW GRAY,SHADOW GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
9011908197
main90119-08197
9011911004
main90119-11004
9020507002
main90205-07002
9056008028
main90560-08028
9165161022
main91651-61022
21 parts on this diagram · 2 diagrams in section
