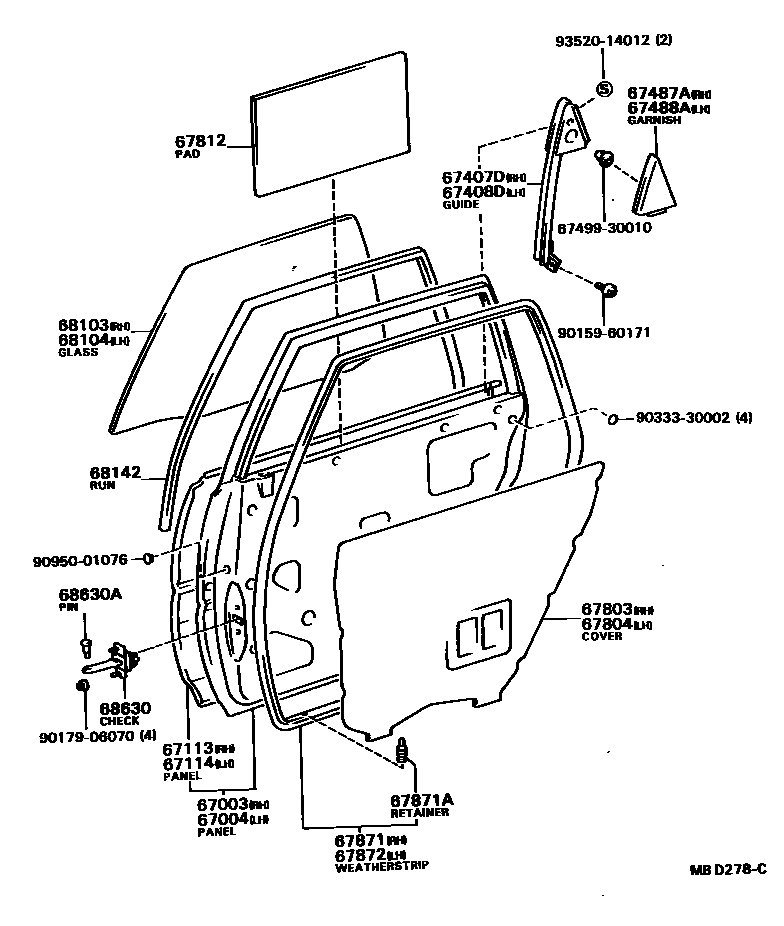

REAR DOOR PANEL & GLASS

0001 1 0002 1 0004 1 0005 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-32020iCV1#,SV1#..4D198210-198610

main67003-32050iCV1#,SV1#..5D..EUR198210-198610

main67003-32070iSV11..ARL198303-198610

sub67003-32060

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-32020iCV1#,SV1#..4D198210-198610

main67004-32050iCV1#,SV1#..5D..EUR198210-198610

main67004-32070iSV11..ARL198303-198610

sub67004-32060

67113PANEL, REAR DOOR, OUTER RH

main67113-32010iSV11..ARL198303-198610

sub67113-32020

main67113-32020iCV1#,SV1#..EUR198210-198610

67114PANEL, REAR DOOR, OUTER LH

main67114-32010iSV11..ARL198303-198610

sub67114-32020

main67114-32020iCV1#,SV1#..EUR198210-198610

67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH

main67407-32010iCV10,SV1#..4D198210-198406

main67407-32020iSV1#..5D198210-198610

67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH

main67408-32010iCV10,SV1#..4D198210-198406

main67408-32020iSV1#..5D198210-198610

67487AGARNISH, REAR DOOR REAR GUIDE BRACKET, RH

main67487-32010iCV10,SV1#..4D198210-198406

67488AGARNISH, REAR DOOR REAR GUIDE BRACKET, LH

main67488-32010iCV10,SV1#..4D198210-198406

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-32010iSV1#198210-198306

sub67841-32020

main67841-32020iCV1#,SV1#..EUR198306-198610

main67841-32030iSV11..ARL198305-198610

sub67841-32020

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67841-32030iSV11..ARL198401-198610

sub67841-32020

main67842-32010iSV1#198210-198306

sub67842-32020

main67842-32020iCV1#,SV1#..EUR198306-198610

main67842-32030iSV11..ARL198305-198401

sub67841-32030

67812PAD, REAR DOOR SILENCER

main67811-32010iCV1#,SV1#..EUR198210-198610

sub67812-12010

67871WEATHERSTRIP, REAR DOOR, RH

main67871-32010iCV1#,SV1#..4D198210-198610

main67871-32030iCV1#,SV1#..5D198210-198610

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67868-30040iCV1#,SV1#198210-198610

67872WEATHERSTRIP, REAR DOOR, LH

main67872-32010iCV1#,SV1#..4D198210-198610

main67872-32030iCV1#,SV1#..5D198210-198610

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-32010iCV1#,SV1#..4D198210-198610

*TT,T=3.5

main68113-32020iCV1#,SV1#..(GL,GLI)..4D198210-198610

BRONZE,*TT,T=3.5

main68113-32030iCV1#,SV1#..5D198210-198610

*TT,T=3.5

main68113-32040iCV1#,SV1#..(GL,GLI)..5D..EUR198210-198610

BRONZE,*TT,T=3.5

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-32010iCV1#,SV1#..4D198210-198610

*TT,T=3.5

main68114-32020iCV1#,SV1#..(GL,GLI)..4D198210-198610

BRONZE,*TT,T=3.5

main68114-32030iCV1#,SV1#..5D198210-198610

*TT,T=3.5

main68114-32040iCV1#,SV1#..(GL,GLI)..5D..EUR198210-198610

BRONZE,*TT,T=3.5

68142RUN, REAR DOOR GLASS

main68142-32010iCV10,SV1#..4D198210-198406

main68142-32020iSV1#..5D198210-198406

main68142-32030iCV1#,SV1#..4D198406-198610

main68142-32040iCV1#,SV1#..5D198406-198610

68630CHECK ASSY, REAR DOOR

main68630-32010iCV10,SV1#198210-198406

sub68630-32020

main68630-32020iCV1#,SV1#198406-198610

68630APIN(FOR REAR DOOR CHECK)

main68617-12010iCV10,SV1#198406-198507

sub68617-90A00

main68617-22010iCV10,SV1#198210-198406

sub68617-12010

main68617-90A00iCV1#,SV1#198507-198610

sub68617-90A01

6749930010RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30010

9015960171

main90159-60171

9017906070

main90179-06070

9033330002

main90333-30002

9095001076

main90950-01076

9352014012

main93520-14012

25 parts on this diagram · 4 diagrams in section
