FRONT DOOR WINDOW REGULATOR & HINGE

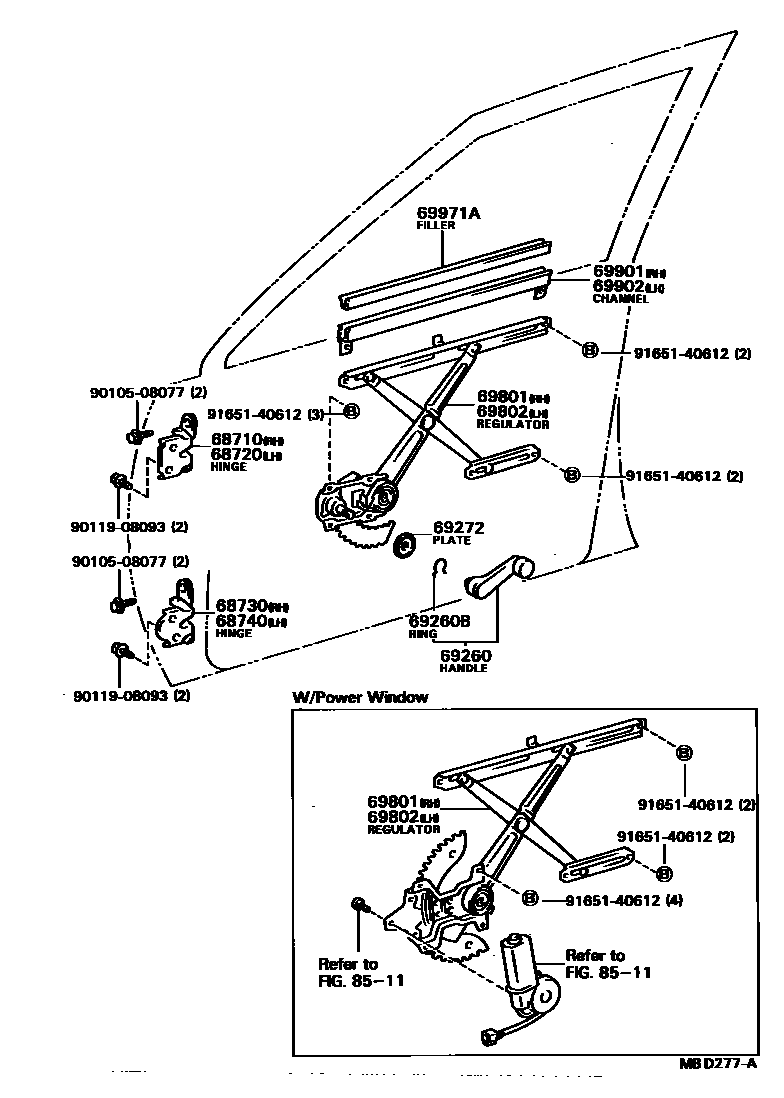

Parts diagram
68710HINGE ASSY, FRONT DOOR, UPPER RH
main68710-32010i198210-198610
68720HINGE ASSY, FRONT DOOR, UPPER LH
main68720-32010i198210-198610
68730HINGE ASSY, FRONT DOOR, LOWER RH
main68730-32010i198210-198610
sub68730-30090
68740HINGE ASSY, FRONT DOOR, LOWER LH
main68740-32010i198210-198610
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
main69260-12030-03i198406-198610
SHADOW GRAY,GRAY,TRIM1#
main69260-12030-05i198408-198610
BEIGE,BEIGE,TRIM4#
main69260-12030-14i198406-198610
BLUE,BLUE,TRIM8#
main69260-14020-03i198303-198406
GRAY,GRAY,TRIM1#
sub69260-14020
sub69260-22030
main69260-14020-04i198303-198406
BLUE,BLUE,TRIM8#
sub69260-14020
sub69260-22030
main69260-14020-16i198303-198406
BROWN,BROWN,TRIM4#
sub69260-14020
sub69260-22030
main69260-14030-03i198210-198406
GRAY,GRAY,TRIM1#
sub69260-14030
main69260-14030-04i198210-198406
BLUE,BLUE,TRIM8#
sub69260-14030
main69260-14030-16i198210-198406
BROWN,BROWN,TRIM4#
sub69260-14030
main69260-22020-13i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
sub69260-22020
sub69260-14030
main69260-22020-14i198406-198610
BLUE,BLUE,TRIM8#
sub69260-22020
sub69260-14030
main69260-22020-35i198408-198610
BEIGE,BEIGE,TRIM4#
sub69260-22020
sub69260-14030
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
main90520-01002i198210-198610
sub90520-01274
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
main69272-30010i198408-198610
main69285-22010i198210-198408
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
main69801-32010i198310-198610
W/POWER WINDOW
main69801-32020i198303-198610
W/POWER WINDOW
main69810-32020i198210-198610
W/O POWER WINDOW
main69810-32030i198210-198610
W/O POWER WINDOW
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
main69802-32010i198310-198610
W/POWER WINDOW
main69802-32020i198303-198610
W/POWER WINDOW
main69820-32020i198210-198610
W/O POWER WINDOW
main69820-32030i198210-198610
W/O POWER WINDOW
69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
main69901-32010i198210-198610
69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
main69901-32010i198210-198610
69971AFILLER, FRONT DOOR GLASS CHANNEL
main69971-22010i198210-198610
sub69971-95110
8511
9010508077
main90105-08077
9011908093
main90119-08093
9165140612
main91651-40612

16 parts on this diagram · 1 diagram in section
